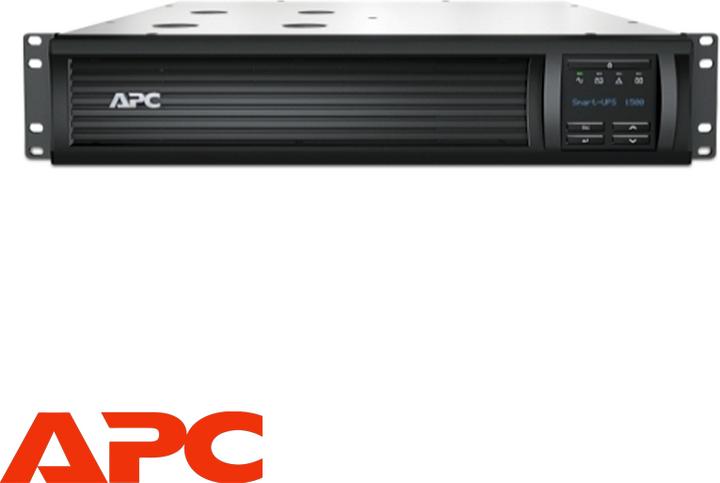

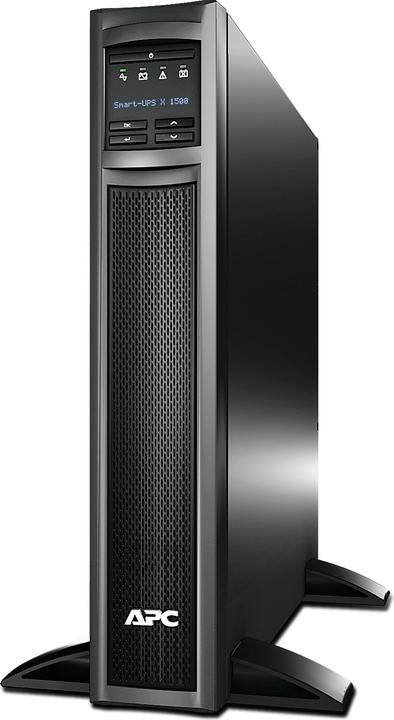

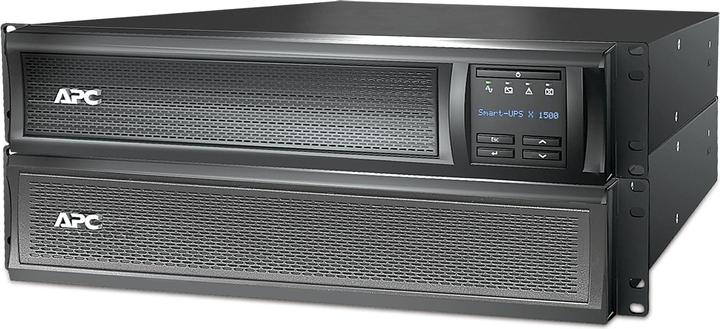

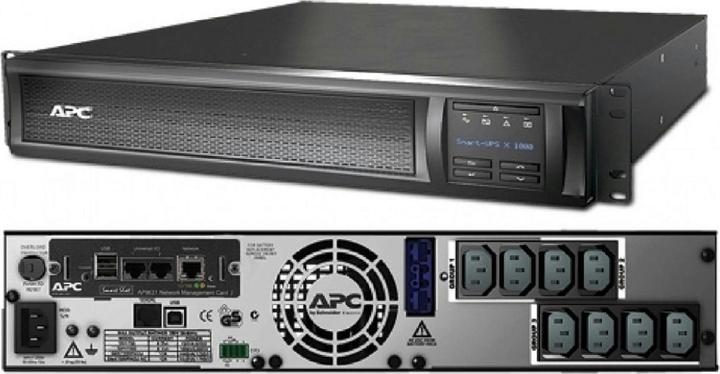

APC SMX1500RMI2UNC with network card

1500 VA, 1200 W, Line-interactive UPS
Price in EUR including VAT
Delivered between Mon, 29.12. and Wed, 31.12.
7 pieces in stock at supplier
free shipping

Product details

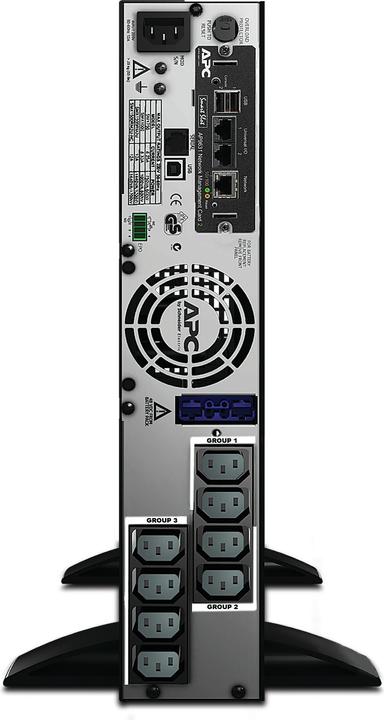

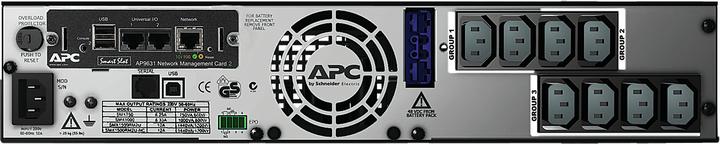

The expansion slot "SmartSlot" is already occupied in this model. Included in the package is the network expansion AP9631, which adds a LAN interface to the UPS. This allows for convenient remote management as well as quick notifications in case of problems, enabling a rapid response to critical situations. Additionally, the expansion card allows for monitoring the temperature of external devices. The C13 power outlets are divided into three groups, with their behavior in the event of a power outage being flexibly configurable. For example, non-critical peripheral devices can be disconnected from the power supply to save battery. The sealed lead-acid battery with gelled electrolyte is completely maintenance-free. The UPS calculates the expected battery life and detects premature aging through regular battery tests. The voltage applied during charging is adjusted according to the battery temperature, allowing for particularly gentle charging, which positively impacts the lifespan. A high efficiency of typically over 90% helps to keep power consumption and cooling requirements low, thus benefiting both the environment and the budget.

Key specifications

Model
19" rack
Plug type
C13IEC Jumpers
Scope of application
Network cabinetServer room
Operating time at full load
5.80 min
Documents
Note.pdf
Item number
253482

General information

Manufacturer
APC
Category
UPS
Manufacturer no.
SMX1500RMI2UNC
Release date
14.3.2011
External links

UPS properties

UPS type
Line-interactive UPS
Power output
1200 W
Output power capacity
1500 VA
Model
19" rack
Rack Unit
2U
shaft type
Sine wave

UPS functions

UPS protection functions
Frequency change protectionOvervoltage protectionUndervoltage protection

Application range

Scope of application
Network cabinetServer room

Connector plug

Plug type
C13IEC Jumpers

Connections

USB ports
USB-A

Mains supply properties

input voltage
160 - 286 V
output voltage
220 - 240 V
Input frequency
50 - 60 Hz
Output frequency
47 / 63 Hz
overvoltage protection
645 J
Efficiency full load
98.50%

Operating conditions

Maximum operating temperature
45 °C
Operating temperature
0 - 45 °C
Operating humidity
0 - 95%
Max. noise level
40 dB

Battery properties

Battery category
Device batteries
Battery
Battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
4x
Battery weight per cell
6210 g
Charging time
3 h

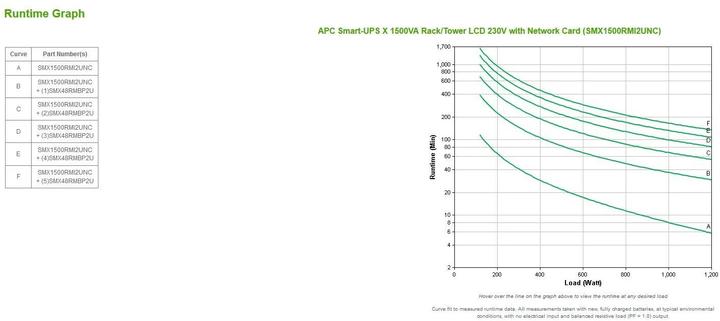

Operating time at full load
5.80 min
Operating time at half load
16 min

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
CD-ROMInstallation guideIntelligent RS-232 cableManual CDRack mount kitStandUSB cable
Items per sales unit
1x

Product dimensions

Height
89 mm
Weight
24.82 kg
Width
432 mm
Length
490 mm

Legal Notice

Product Safety

Package dimensions

Length
59 cm
Width
62.50 cm
Height
24.50 cm
Weight
31.62 kg
