APC SRT3000*UXI*-NCLI
3000 VA, 2700 W, Online double converter UPSProduct details

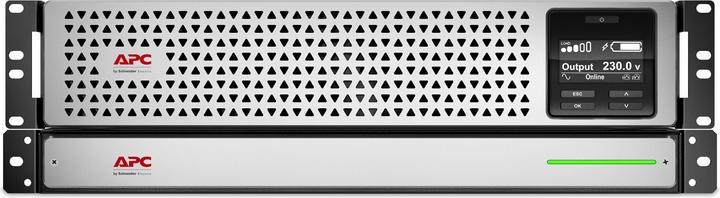

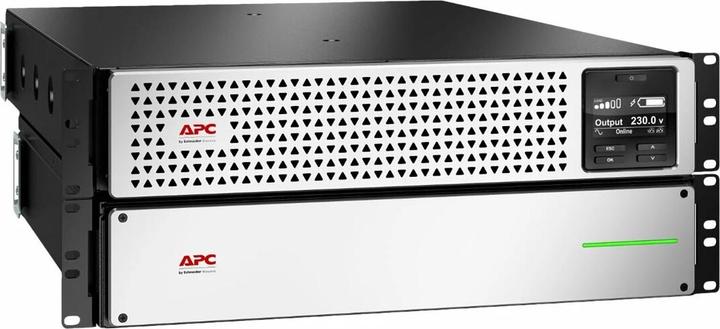

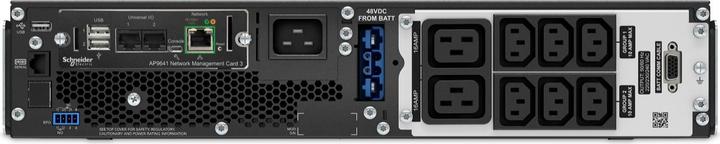

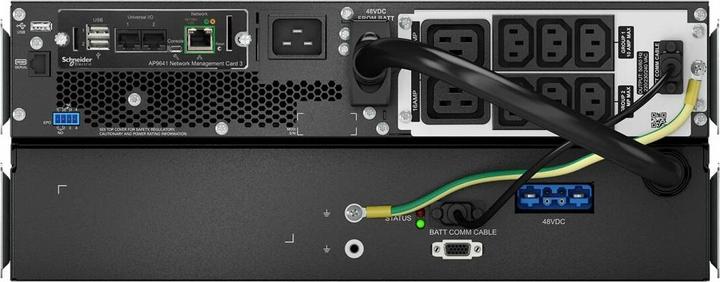

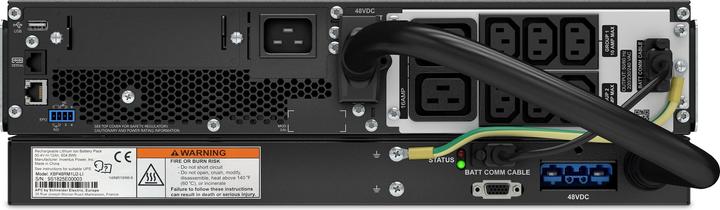

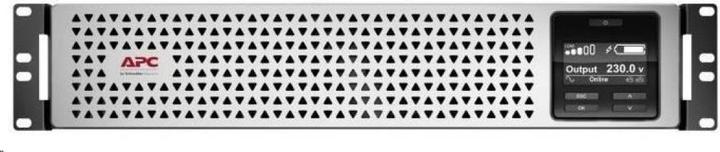

High-performance UPS system with double-conversion online technology and scalable autonomy time. This 3 kVA online UPS for rack mounting (3U) provides pure sine wave output and extended runtime to support critical electronics during power outages. It features an IEC 320 C20 input, 6x IEC 320 C13 outputs, and 2x IEC 320 C19 outputs. Additionally, it is equipped with a SmartSlot for an optional network management card, enabling proper shutdown of physical servers, virtual machines, and HCI clusters via PowerChute Network Shutdown. The UPS can be connected to EcoStruxure IT or centralized third-party management platforms. Ideal for Smart-UPS online applications for critical use cases.
Operating time at full load | 9 min |
Model | 19" rack |
Scope of application | Network cabinet, Server room |
Plug type | BS 1363A |
Item number | 10660846 |
UPS type | Online double converter UPS |
Power output | 2700 W |
Output power capacity | 3000 VA |
Model | 19" rack |
Rack Unit | 4U |
shaft type | Sine wave |
Scope of application | Network cabinet, Server room |
Plug type | BS 1363A |
USB ports | USB-A |
Network connections | RJ45 (1x) |
input voltage | 160 - 275 V |
output voltage | 230 V |
Input frequency | 40 / 70 Hz |
Output frequency | 50 - 60 Hz |
overvoltage protection | 432 J |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Operating humidity | 0 - 95% |
Max. noise level | 50 dB |
Protection type (IP code) | IP20 |
Battery | Rechargeable battery |
Battery type | Li-ion |
Number of cells | 1 x |
Voltage | 230 V |
Charging time | 4 h |

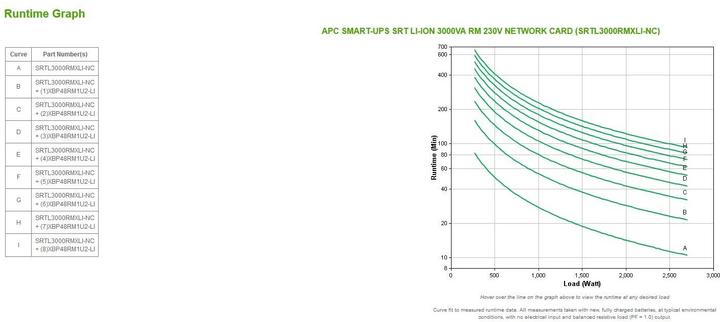

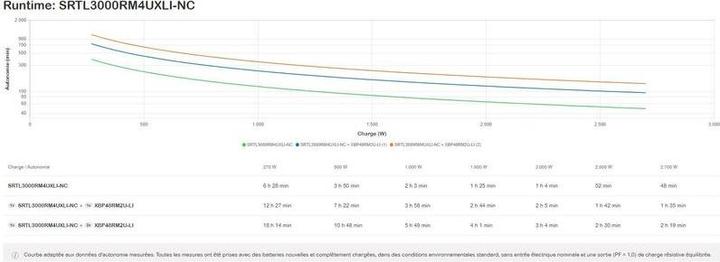

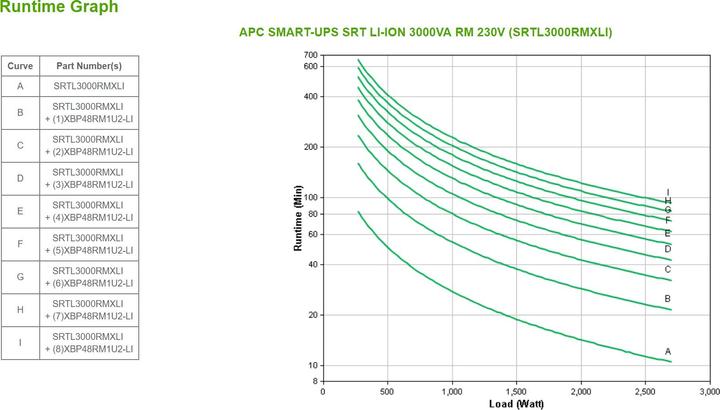

Operating time at full load | 9 min |
Operating time at half load | 93 min |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1x AP9641 Network Management Card, 1x CD with, 1x UPS |
Items per sales unit | 1 x |
Height | 171 mm |
Weight | 30.50 kg |
Width | 432 mm |
Length | 639 mm |
Length | 88 cm |
Width | 61 cm |
Height | 25 cm |
Weight | 15 kg |
