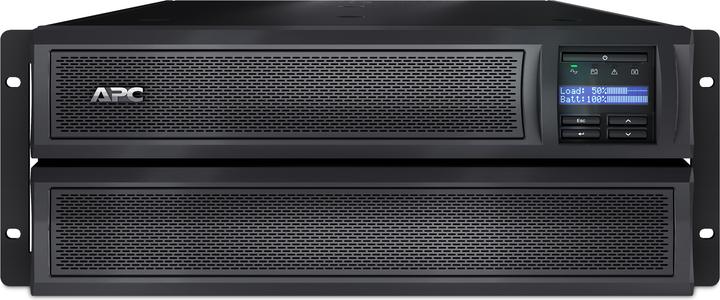

APC Usv Smx2200hv, 2200va/1980w

2200 VA, 1980 W, Line-interactive UPS
Price in EUR including VAT
Delivered between Tue, 30.12. and Fri, 2.1.
7 pieces in stock at supplier
free shipping

Product details

Line-interactive UPS, 2200 VA / 1980 W. Continues to provide power during a blackout. Up to 1980 watts of output power. Surge protection up to 645 joules. Connections: 8x C13, 2x C19, 1x C20 input. Management: USB, serial (RS-232), SmartSlot. The APC Smart-UPS series protects your critical data with reliable, uninterrupted power supply. The 19-inch housing can also be mounted in a rack. The device offers a capacity of 2200 VA with a maximum output power of 1980 watts. In the event of a power failure, the device ensures independent power supply for 10 to 25 minutes (at 100%/50% load). Intuitive operation, easy management. Its LCD display always shows the most important parameters such as operating mode and efficiency, voltage, frequency, and energy consumption. A clear menu ensures intuitive operation of all device functions. For management via direct connection, there is a USB and a serial RS-232 interface available. Low maintenance. The sealed lead-acid battery with gelled electrolyte is completely maintenance-free. The UPS calculates the expected battery life and detects premature aging through regular battery tests. The charging voltage is adjusted to the temperature of the battery, allowing for particularly gentle charging, which positively affects the lifespan. High efficiency. A high efficiency of typically over 90% helps keep power consumption and cooling needs low, thereby protecting both the environment and your budget.

Key specifications

Model
19" rack
Plug type
C13C19IEC Jumpers
Scope of application
Network cabinetServer room
Operating time at full load
9.80 min
Documents
Note.pdf
Item number
5808850

General information

Manufacturer
APC
Category
UPS
Manufacturer no.
SMX2200HV
Release date
8.7.2013

UPS properties

UPS type
Line-interactive UPS
Power output
1980 W
Output power capacity
2200 VA
Model
19" rack
Rack Unit
4U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protection

Application range

Scope of application
Network cabinetServer room

Connector plug

Plug type
C13C19IEC Jumpers

Connections

USB ports
USB-A

Mains supply properties

input voltage
140 - 280 V
Output frequency
50 - 60 Hz
overvoltage protection
645 J
Efficiency full load
98.10%

Operating conditions

Maximum operating temperature
45 °C
Operating temperature
0 - 40 °C
Operating humidity
0 - 95%
Max. noise level
55 dB

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
1x
Battery weight per cell
22300 g
Charging time
3 h
Operating time at full load
9.80 min
Operating time at half load
25.30 min

Origin

Country of origin
China

Sustainability

Manufacturer commitment
SBTi

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
CD with software documentation CD rack assembly instructionsRS-232USB cable
Items per sales unit
1x

Product dimensions

Height
432 mm
Weight
38.64 kg
Width
178 mm
Length
483 mm

Legal Notice

Product Safety

Package dimensions

Length
64 cm
Width
63 cm
Height
35 cm
Weight
45 kg
