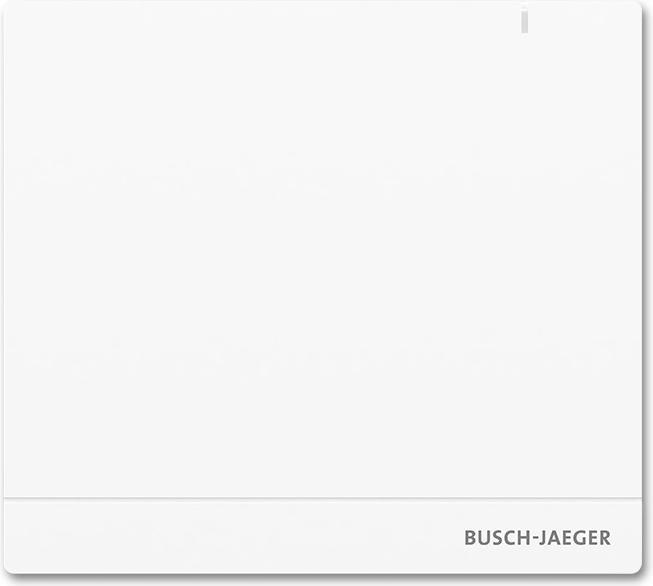

Busch-Jaeger System Access Point 2.0 SAP/S.13

Manufacturer: Busch-Jaeger
Designation: System Access Point 2.0 Wireless
Type: SAP/S.13
KNX Bus System: no
KNX Wireless Bus System: no
Wireless Bus System: no
LON Bus System: no
Powernet Bus System: no
Other Bus Systems: others
Mounting Type: Surface-mounted
With Display: no
With Integrated GSM Modem: no
With Integrated DCF Clock: no
Rated Voltage: 230 V

Additional Details:
For the commissioning and remote control of the Busch-free@home® system. Supports up to 150 free@home participants (regardless of whether Wireless or Wired). With integrated free@home Wireless antenna and integrated free@home bus connection. Easy installation thanks to the external plug-in power supply (included). Optional power supply via the yellow/white wire pair of the bus line (24V). Allows the execution of astro and time programs. Commissioning and remote control are done via web interface or app. No additional commissioning software is required. Programming via the web interface of the System Access Point. Simple commissioning through WLAN ad-hoc mode. Connection to the home network via WLAN client mode or via CAT cable. Further information on commissioning and operation can be found in the system manual and the online user manual. The bus connection is made via the included bus terminal. When operating free@home Wired devices, a bus power supply is required. Suitable as a tabletop device. Suitable for wall mounting. 2 x USB ports for future function expansions. 2.4 GHz and 5 GHz WLAN, 1 GHz Dual Core Processor, 512 MB RAM.

Scope of Delivery:

• Mounting plate
• Plug-in power supply
• Screws and dowels

When operating more than 64 participants (Wired devices), an additional bus power supply is required.
EAN: 4011395261569.
