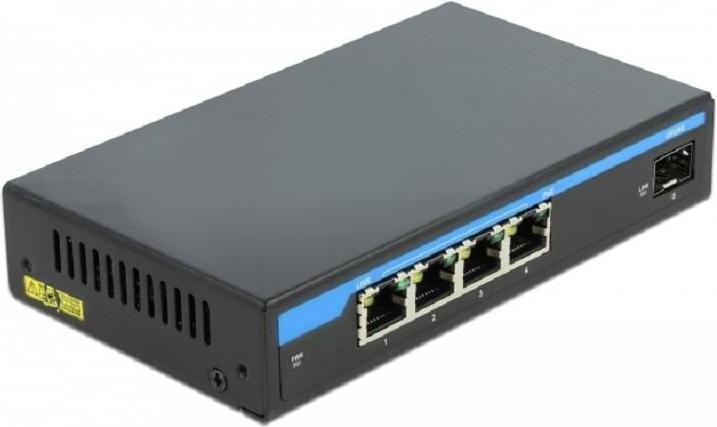

With this Gigabit Ethernet Switch from Delock, various network components can be connected. Four RJ45 ports support Power over Ethernet according to IEEE802.3af / 802.3at, allowing PoE-capable devices, such as IP cameras or PoE splitters, to be powered through the network cable. The additional SFP slot enables the network to be expanded with a fiber optic connection.

Specifications:

• Connections:
• 4 x RJ45 PoE ports
• 1 x SFP slot for 1 Gbps SFP module
• 1 x DC 5.5 x 2.1 mm socket
• Output power: max. 30 W per port, max. 60 W total
• Data transfer rate up to 1 Gbps
• LED indicators for power and PoE
• LED indicators for connection and activity
• Supports IEEE 802.3at PoE+
• Phantom power (Mode A, pairs 1/2 and 3/6)
• Metal housing
• Fanless
• Dimensions (LxWxH): approx. 153 x 87 x 29 mm

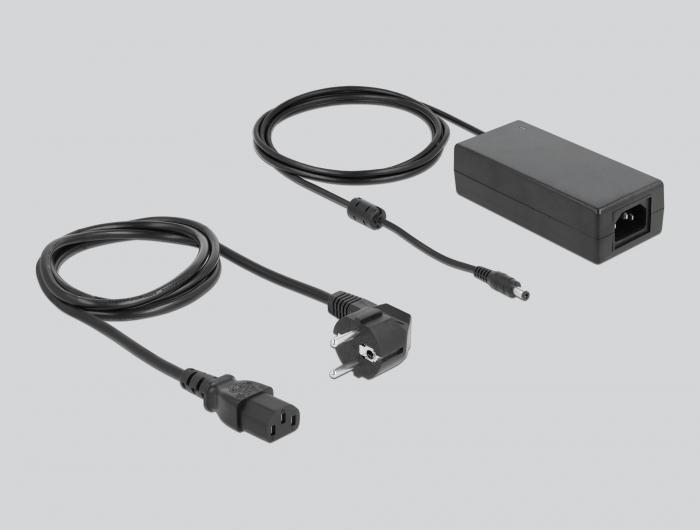

Power supply specifications:

• Power supply with cold appliance connector IEC C14
• Input: AC 100 ~ 240 V / 50 ~ 60 Hz / 1.5 A
• Output: DC 48.0 V / 1.35 A
• Outer dimensions, positive inside
• Dimensions:
• inner: approx. 2.1 mm diameter
• outer: approx. 5.5 mm diameter
• length: approx. 9 mm

System requirements:

• Device with a free RJ45 port

Package contents:

• PoE Switch
• External power supply
• Power cable
• User manual.
