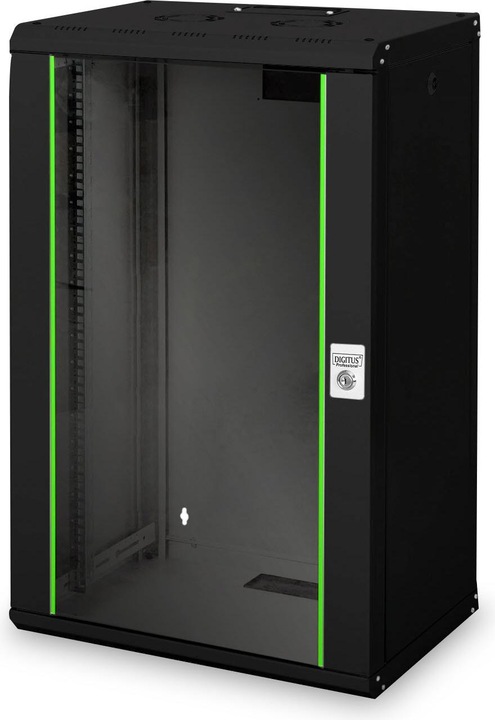

Digitus 20U wall mounted housing 998x600x450 mm colour black RAL 9005
20 RU, 19 inch rackOnly 3 pieces in stock at supplier
Product details
The DIGITUS® Unique Series has been manufactured, designed, and developed to meet the high demands of IT infrastructure.
- Robust steel construction for stable wall mounting

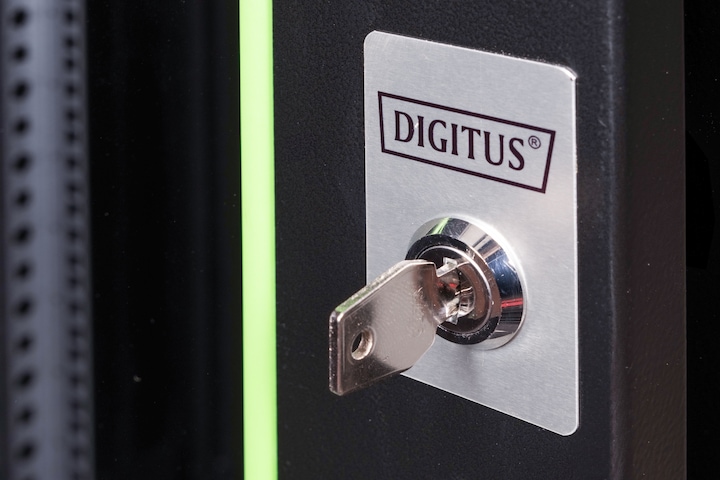

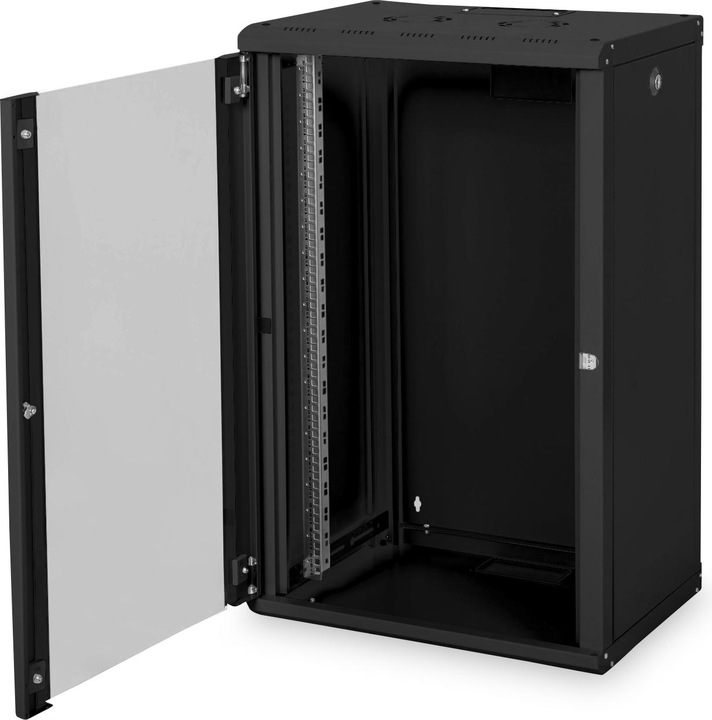

- Lockable safety glass door with steel frame
- Side panels are lockable and removable

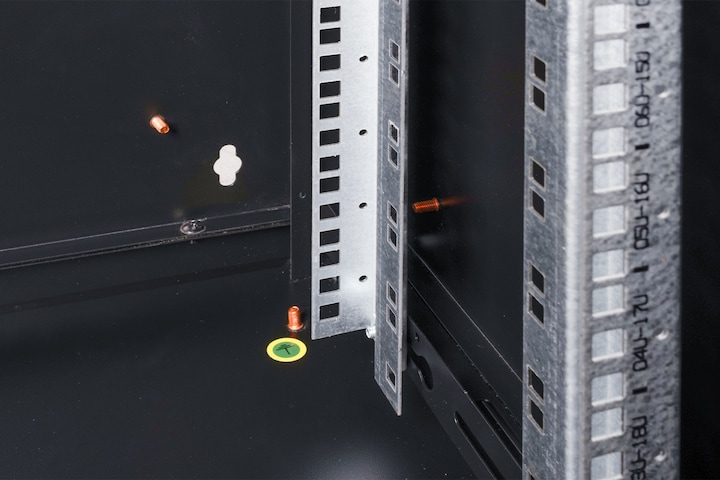

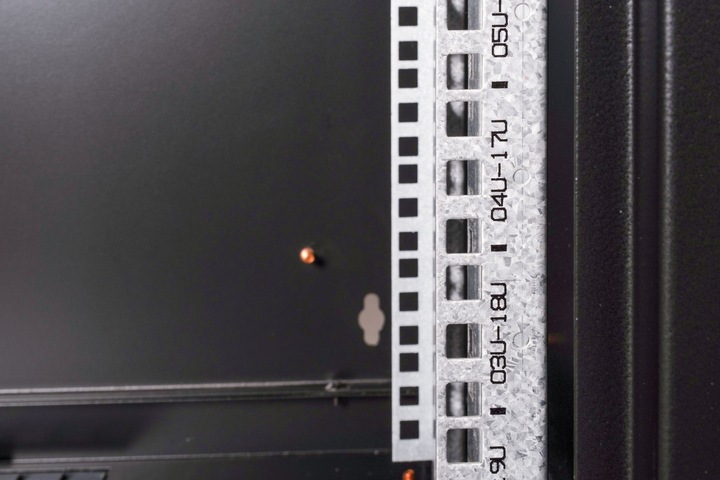

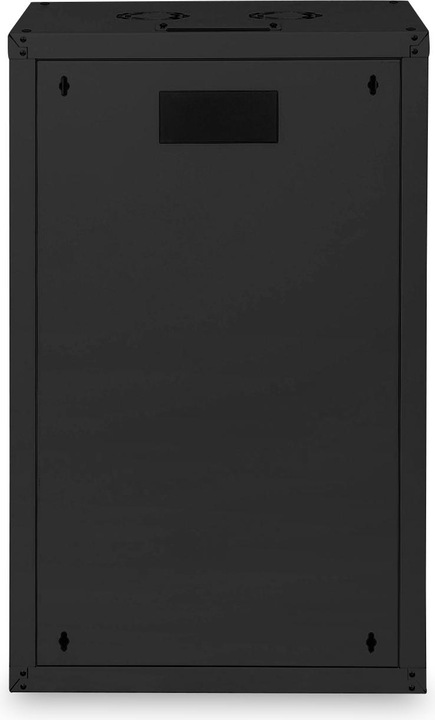

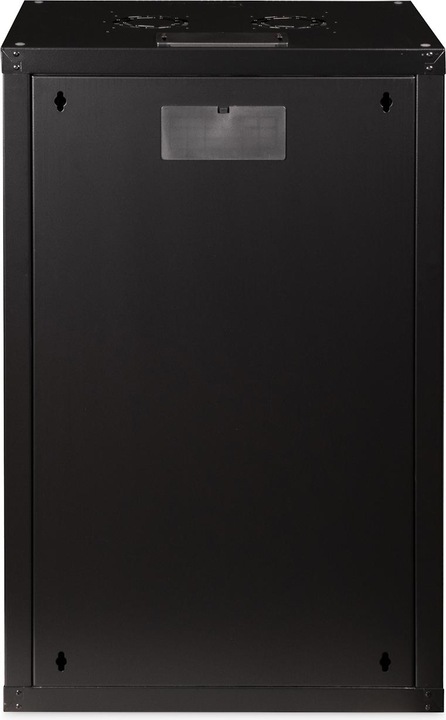

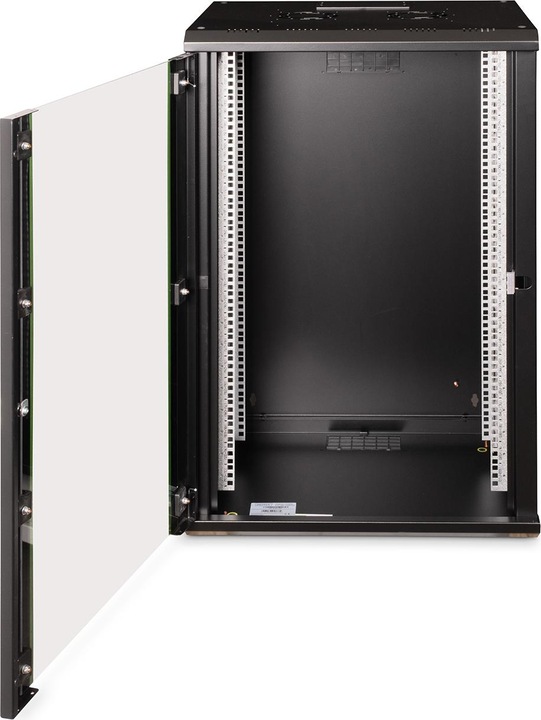

The wall-mounted network cabinets of the Unique Series have been developed for particularly comfortable and flexible network cabling. Each cabinet features a sliding cable entry at the top with a rubber seal. The rear panel and the base plate are equipped with punched cable entries with plastic covers. The top chassis is also designed with a punched area for the installation of a fan module. Inside, there are two pairs of galvanized 483 mm (19") profile rails labeled with height units that can be read in both directions. These can be adjusted in depth. Each cabinet is a robust steel construction made from steel sheets up to 1.5 mm thick. The color finish is achieved through electrostatic powder coating in standard colors Grey (RAL 7035) and Black (RAL 9005). Modular lockable and removable side walls, along with a lockable and removable front door, enhance accessibility. A door hinge change can be made. Wall mounting is completed in two simple steps: the rear panel of the cabinet is screwed to the wall and then connected to the cabinet. With optionally available leveling feet or wheels, the wall cabinets of the Unique Series can also be used as freestanding units.
Type | Cabinet |
Usable installation depth | 370 mm |
Protection type (IP code) | IP20 |
Server cabinet features | Lockable, Removable side panels |
Item number | 10345523 |
Manufacturer | Digitus |
Category | Server cabinets |
Manufacturer no. | DN-19 20-U-SW |
Release date | 22.1.2019 |
External links |
Colour | Black |
Exact colour description | Black (ral 9005) |
Material group | Metal |
Material | Sheet steel |
Type | Cabinet |
Rack size | 19 inch rack |
Form factor size | 20 RU |
Usable installation depth | 370 mm |
Max. weight | 100 kg |
Protection type (IP code) | IP20 |
Wall thickness | 1.50 mm |
Server cabinet features | Lockable, Removable side panels |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 1 piece |
Height | 998 mm |
Width | 600 mm |
Length | 450 mm |
Weight | 35 kg |
Length | 101 cm |
Width | 62 cm |
Height | 51 cm |
Weight | 33.94 kg |
