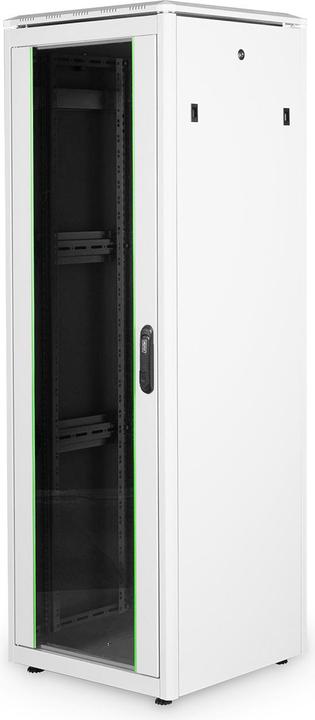

Digitus DN-19 36U-6/6-1 network cabinet
36 RU, 19 inch rackOnly 1 piece in stock at supplier
Product details
The DIGITUS® Unique Series has been manufactured, designed, and developed to meet the high demands of IT infrastructure.
The top is prepared for the installation of a fan unit and features a removable cover. A locking system with a swivel lever handle is located on the front door (prepared for the installation of a profile half-cylinder; adapter included). There is a sliding cable entry with a foam rubber seal in the base.

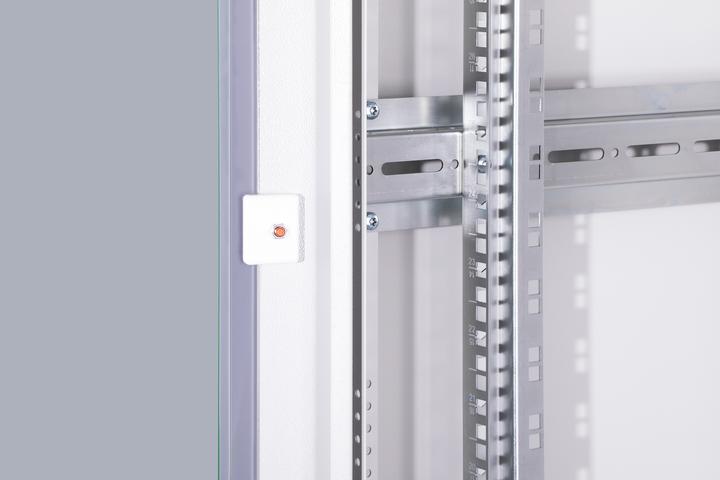

The network cabinets of the Unique Series have been developed for particularly comfortable and flexible network cabling. Brush-equipped entries in the top and bottom (from 26U and 800 mm cabinet width), a sliding entry in the base chassis with a foam rubber seal, and rear brush strips above and below the rear door (from 26U) allow for versatile use in various application scenarios. Vertical cable management channels with covers, installed next to the profile rails (from 800 mm cabinet width), complete the design. A recessed, removable cover with ventilation slots ensures improved air circulation. This sits above a special construction for easy installation of a fan module. Two pairs of galvanized, height-adjustable 483 mm (19") profile rails are installed inside, which can be adjusted in depth and are connected with additional depth braces in the cabinet. Each cabinet is a robust steel construction made from steel sheet up to 1.5 mm thick. The color finish is applied through electrostatic powder coating in standard colors Gray (RAL 7035) and Black (RAL 9005). Modular lockable and removable side panels and doors enhance accessibility. A door hinge change can be made. Furthermore, the cabinets can be completely disassembled if needed due to their modular construction.
Type | Floor standing cupboard |
Usable installation depth | 370 mm |
Protection type (IP code) | IP20 |
Server cabinet features | Lockable |
Item number | 4665312 |
Manufacturer | Digitus |
Category | Server cabinets |
Manufacturer no. | DN-19 36U-6/6-1 |
Release date | 28.4.2015 |
External links |
Colour | Grey |
Exact colour description | Light grey, RAL 7035 |
Material group | Metal |
Material | Steel |
Type | Floor standing cupboard |
Rack size | 19 inch rack |
Form factor size | 36 RU |
Usable installation depth | 370 mm |
Max. weight | 1200 kg |
Protection type (IP code) | IP20 |
Wall thickness | 1.50 mm |
Server cabinet features | Lockable |
Country of origin | China |
CO₂ emissions | 248,19 kg |
Climate contribution | EUR 6,18 |
Scope of delivery | mounted |
Height | 1787 mm |
Width | 600 mm |
Length | 600 mm |
Weight | 76 kg |
Product Safety |
Length | 63 cm |
Width | 68 cm |
Height | 179 cm |
Weight | 32 kg |
