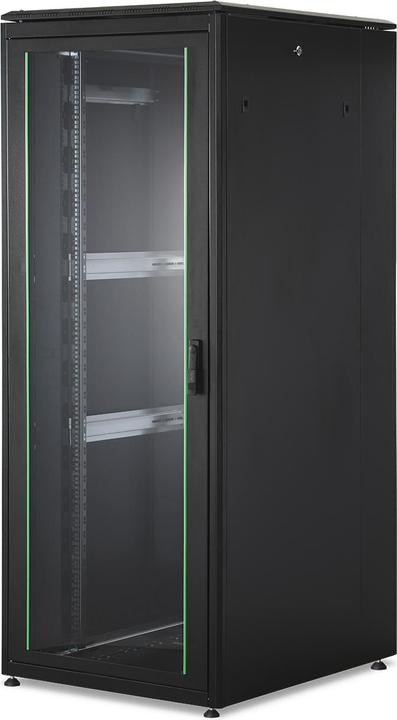

Digitus Network cabinet 48.3cm 19inch 42U H2053mmxW800mmxD1000mm black with glass door incl. 28xmounting
42 RU, 19 inch rackOnly 1 piece in stock at supplier
Product details
The DIGITUS® Unique Series is designed, conceived, and developed to meet the high demands of IT infrastructure.

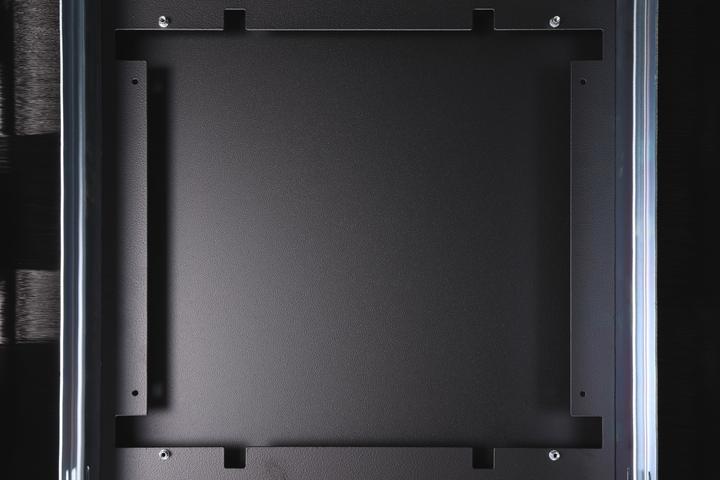

The top is prepared for the installation of a fan unit and features a removable cover. The locking system includes a swivel lever handle on the front door (prepared for a profile half-cylinder; adapter included). A sliding cable entry with a foam rubber seal is located at the bottom.

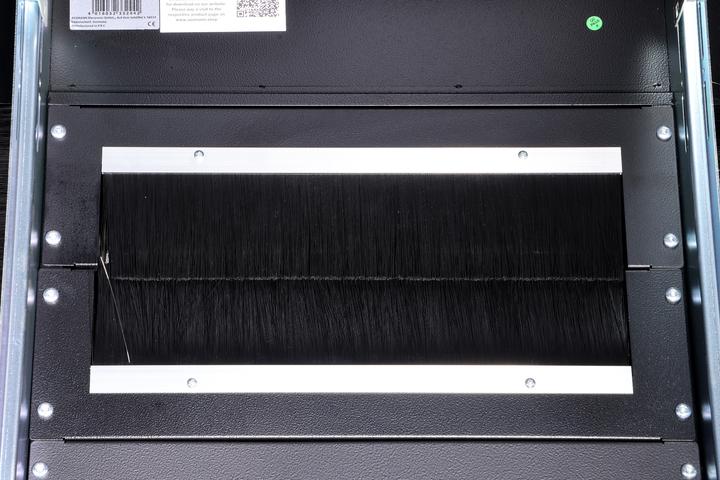

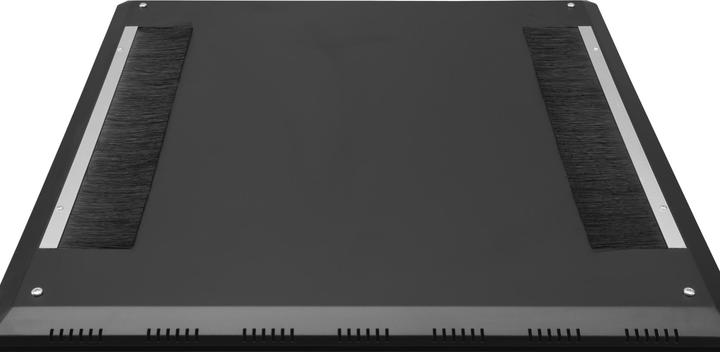

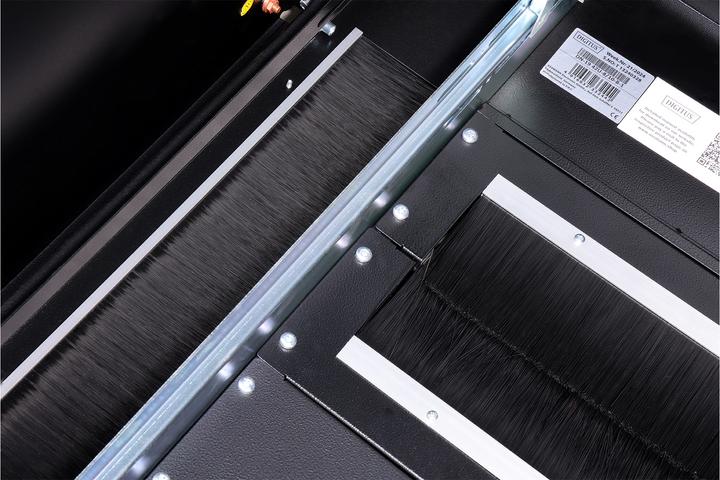

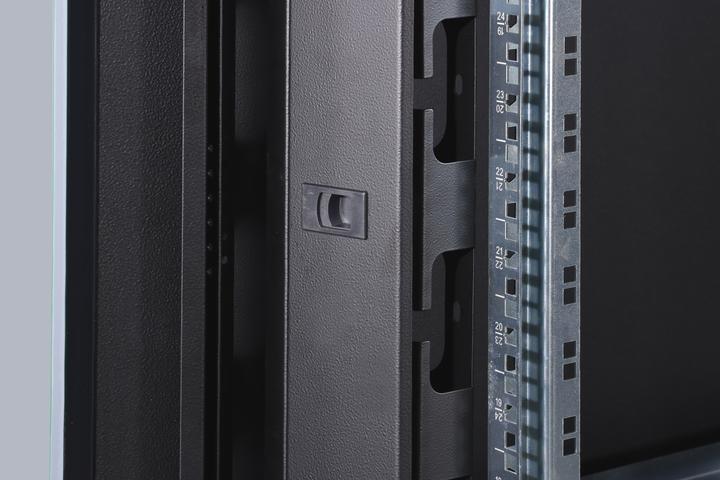

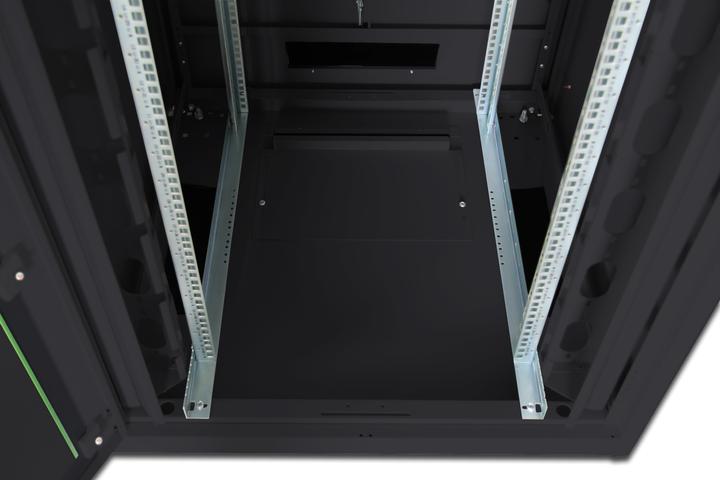

The network cabinets of the Unique Series have been developed for particularly comfortable and flexible network cabling. Brush-equipped entries in the top and bottom (from 26U and 800 mm cabinet width), a sliding entry in the bottom chassis with a foam rubber seal, and rear brush strips above and below the back door (from 26U) allow for versatile use in various application scenarios. Vertical cable management channels with covers, installed next to the profile rails (from 800 mm cabinet width), complete the design. A recessed, removable cover with ventilation slots ensures improved air circulation. This sits above a special construction for easy installation of a fan module.

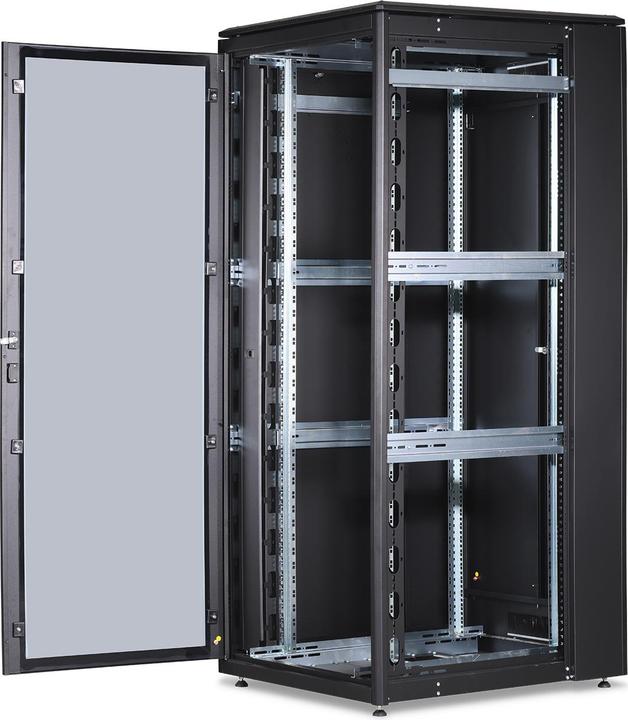

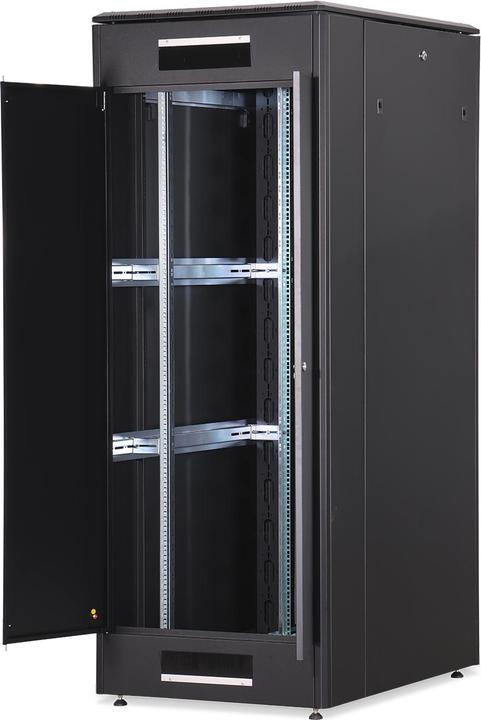

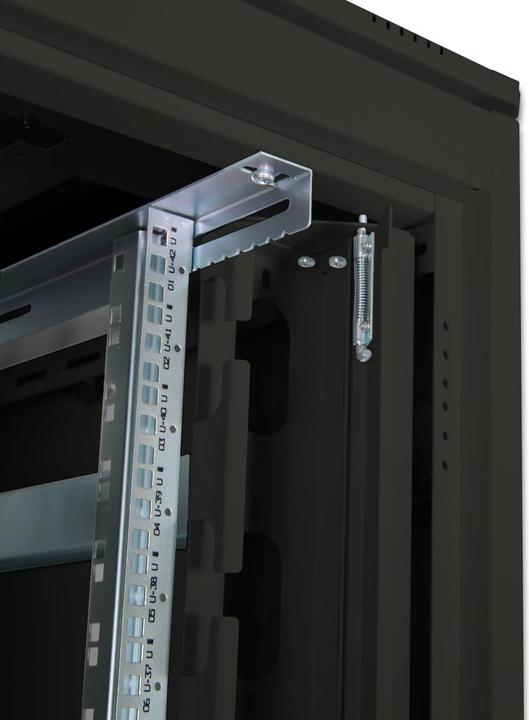

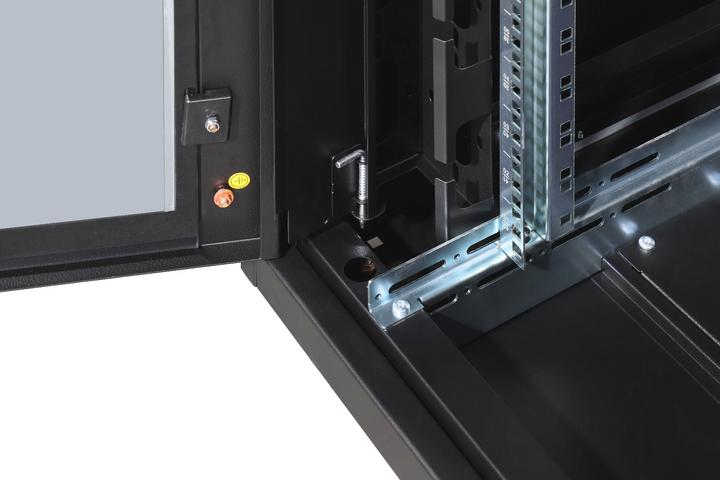

Two pairs of galvanized 483 mm (19") profile rails, labeled with height units readable in both directions, are installed inside. They can be adjusted in depth and are connected with additional depth struts in the cabinet. Each cabinet is a robust steel construction made of up to 1.5 mm thick steel sheet. The color finish is applied in the form of electrostatic powder coating in standard colors Gray (RAL 7035) and Black (RAL 9005). Modular lockable and removable side panels and doors enhance accessibility. A door hinge change can be performed. Furthermore, the cabinets can be completely disassembled if needed due to their modular construction.
Type | Floor standing cupboard |
Usable installation depth | 688 mm |
Protection type (IP code) | IP20, IP40 |
Item number | 10342409 |
Manufacturer | Digitus |
Category | Server cabinets |
Manufacturer no. | DN-19 42U-8/10-B-1 |
Release date | 22.1.2019 |
External links |
Colour | Black |
Exact colour description | Black, RAL 9005 |
Material group | Glass, Metal |
Material | Glass, Steel |
Type | Floor standing cupboard |
Rack size | 19 inch rack |
Form factor size | 42 RU |
Usable installation depth | 688 mm |
Max. weight | 1200 kg |
Protection type (IP code) | IP20, IP40 |
Country of origin | China |
CO₂ emissions | 907,44 kg |
Climate contribution | EUR 22,56 |
Scope of delivery | Network cabinet Unique series - 800x1000 mm (WxD) |
Height | 2053 mm |
Width | 800 mm |
Length | 1000 mm |
Product Safety |
Length | 103 cm |
Width | 82 cm |
Height | 206 cm |
Weight | 117 kg |
