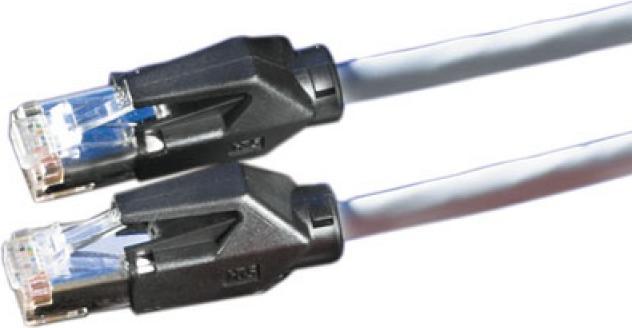

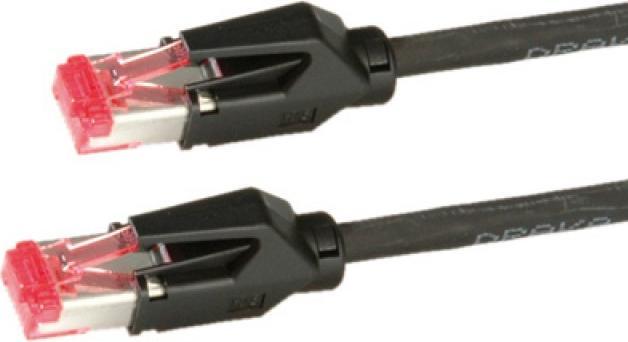

Draka Network cable
PiMF, CAT6, 1 mColour5
Length3
In Detail
Draka UC600 SS27: High-quality flexible patch cable with special shielding for applications up to 250 MHz. Equipped with shielded HiRose TM21 RJ-45 connectors and strain relief boot. Contact assignment: 8 conductors 1:1. Construction: Cable type S/STP (PiMF cable). Impedance: 100 Ohm. Inner conductor: 8 conductors AWG 27/7 tinned copper stranded wire. Outer diameter: 5.9 mm. Reference color code: wsgn/gn, wsor/or, bl/wsbl, wsbr/br. Overall shielding: tinned copper braid. Note: Cable is halogen-free.
We recommend using the following components for structured cabling: Draka UC600 4P installation cable, Telegärtner AMJ45 8/8 UP/50 connection sockets, Telegärtner 19-panel MPP24-HS, and Draka UC600 S/FTP patch cable with HiRose TM21 connectors. This product combination has been tested at Draka's testing laboratory according to Class E in a 100 m channel.
Technical data:
Manufacturer: Draka Holding
Manufacturer number: 21.05.2050
Product group: Twisted pair cables
Product type: Patch cable
Freight item: No
Shielding type: PiMF
Transmission quality: Cat6 / Class E
Impedance: 100 Ohm
Number of conductors: 8
Conductor cross-section (AWG): AWG 27
Conductor type: Stranded wire
Length: 5.0 m
Color (cable): Gray
Color (boot): Black
Outer diameter of cable: 5.7 mm
Cable halogen-free: Yes
Connector type: RJ45 HiRose TM21
Gross weight: 0.181 kg including packaging.
