Eaton Ellipse Eco
1200 VA, 750 W, Standby UPSProduct details

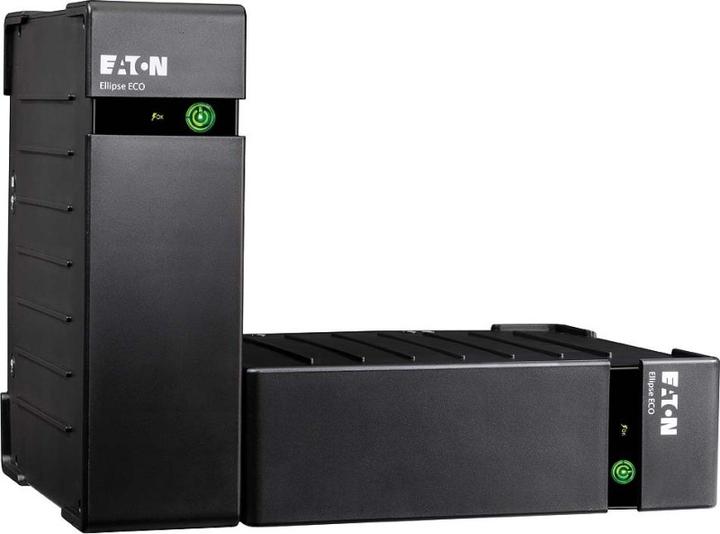

The latest ECO Ellipse generation from Eaton saves up to 25% of energy compared to conventional UPS systems by automatically switching off all peripheral devices as soon as the main device is switched off. In addition to a battery back-up power supply to keep your equipment up and running in the event of a power failure, the Ellipse ECO also provides effective protection against overvoltage damage. Thanks to its particularly flat design, the Ellipse ECO can be easily integrated into any office environment, as it can be installed upright under a desk, horizontally under a monitor, as a 19" rackmount device (2U kit optional) or wall-mounted.
Operating time at full load | 2 min |
Model | Desktop |
Scope of application | Server room, Workplace + home use |
Plug type | C13 |
Item number | 3511537 |
UPS type | Standby UPS |
Power output | 750 W |
Output power capacity | 1200 VA |
Model | Desktop |
Rack Unit | 2U |
UPS protection functions | Overvoltage protection |
Scope of application | Server room, Workplace + home use |
Plug type | C13 |
Connections | USB 2.0 |
USB ports | USB-A |
Network connections | RJ45 (1x) |
Data ports | PS/2 (1x) |
input voltage | 184 - 264 V |
output voltage | 230 V |
Input frequency | 50 - 60 Hz |
Output frequency | 50 - 60 Hz |
Maximum operating temperature | 40 °C |
Operating temperature | 0 - 40 °C |
Max. noise level | 0 dB |
Battery category | Industry battery |
Battery | Rechargeable battery |
Battery type | Lead–acid battery |
Battery size | Device specific |
Number of cells | 1 x |
Battery weight per cell | 2180 g |
Voltage | 230 V |

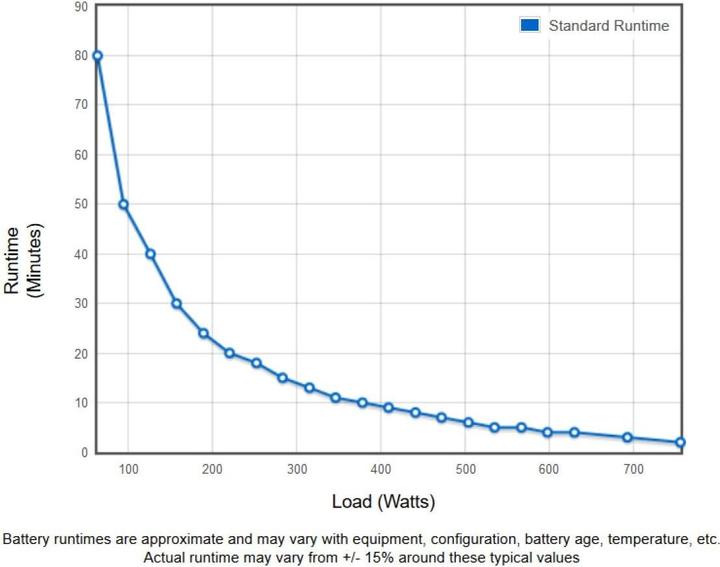

Operating time at full load | 2 min |
Operating time at half load | 10 min |
Country of origin | China |
Manufacturer commitment | SBTi |
CO₂-Emission | |
Climate contribution |
Scope of delivery | USB cable |
Items per sales unit | 1 x |
Height | 305 mm |
Weight | 6.70 kg |
Width | 81 mm |
Length | 312 mm |
Length | 40 cm |
Width | 36 cm |
Height | 14 cm |
Weight | 7.75 kg |
