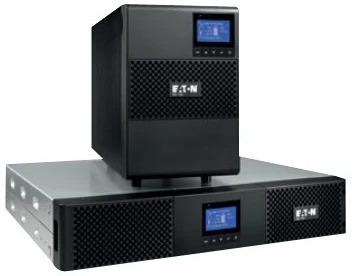

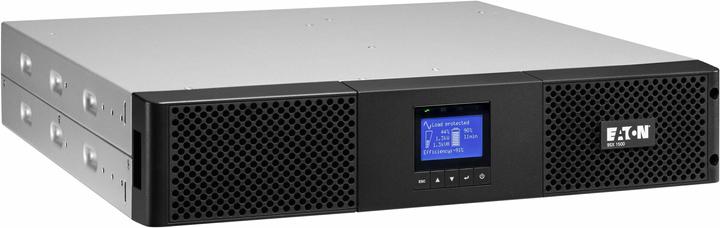

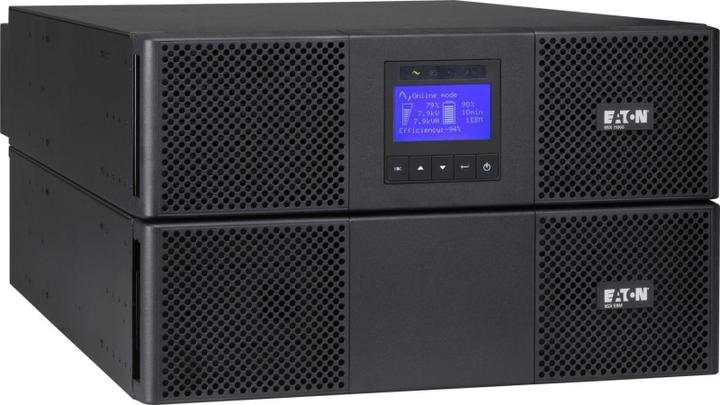

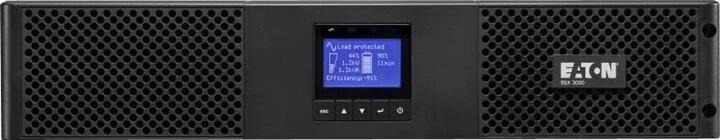

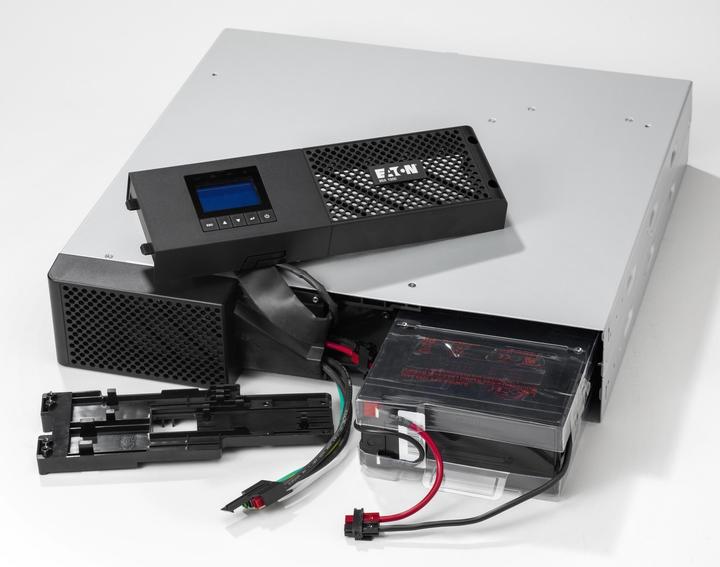

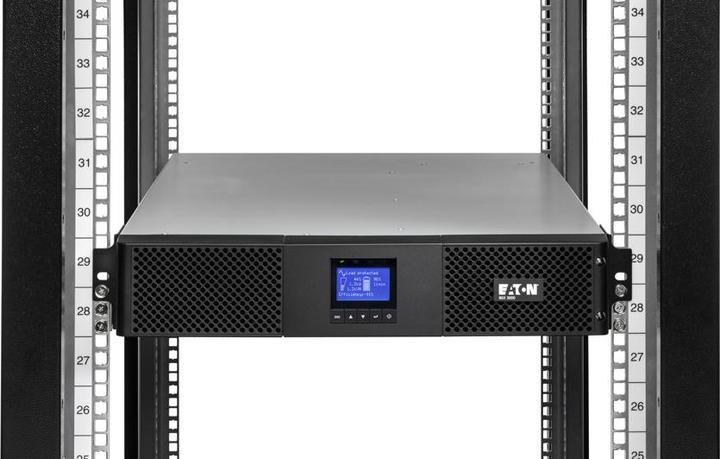

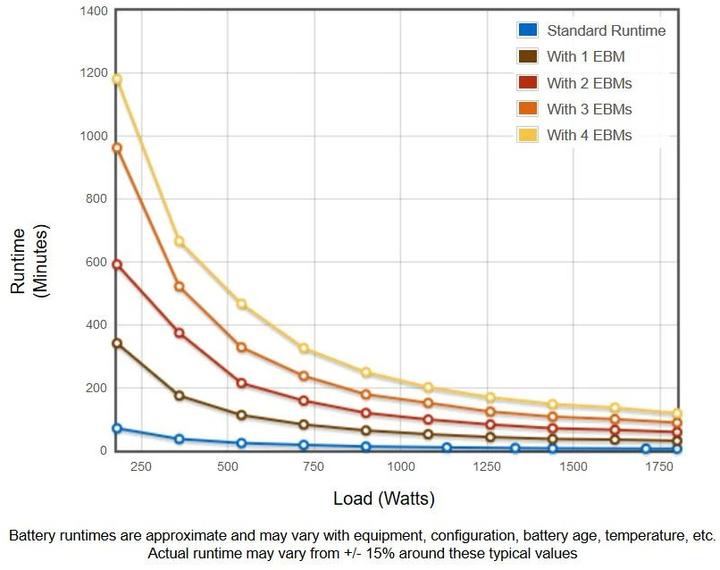

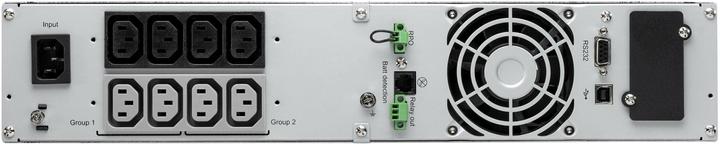

Online UPS as a rack version. UPS type: Online, enclosure design: rack. Apparent power: 2000 VA, active power: 1800 W. Backup time at 50% load: 12 min, backup time at 100% load: 5 min. Power outputs: terminal output: 0, C19: 0, C13: 8, hard wire: not available. Expandable up to 4 external hot-swap battery modules. Eaton’s 9SX UPS offers high availability, flexibility, and enhanced protection for industrial, medical, IT, network, storage, and telecommunications applications. Online double-conversion protection in rack or tower format with up to 95% efficiency. Online double-conversion topology. The UPS features an online double-conversion topology for continuous power supply monitoring. With its power factor of 0.9, the 9SX UPS powers more servers than other UPS systems with the same VA rating and lower power factor. Power measurement. The kWh values can be monitored via the LCD display or Eaton’s Intelligent Power Software. The load segment control enables prioritized shutdown of non-critical loads, thereby maximizing battery backup time for critical devices. Battery management. The ABM battery management technology uses an innovative three-stage charging technique that extends battery life by up to 50%. You can add up to 4 external hot-swap battery modules to extend battery runtime.
