Fantec SRC-4080X08 (without power supply unit)

Price in EUR including VAT
Delivered between Mon, 14.7. and Fri, 18.7.
More than 10 pieces in stock at supplier
free shipping

Product details

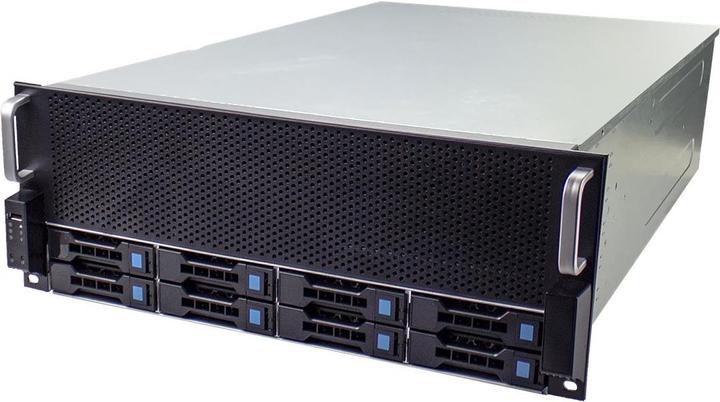

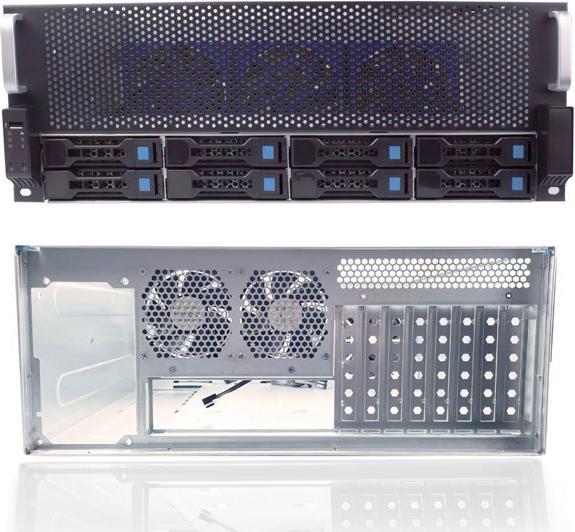

Fantec SRC-4080X08 - 19" storage enclosure (4U 8x SAS & SATA without power supply)

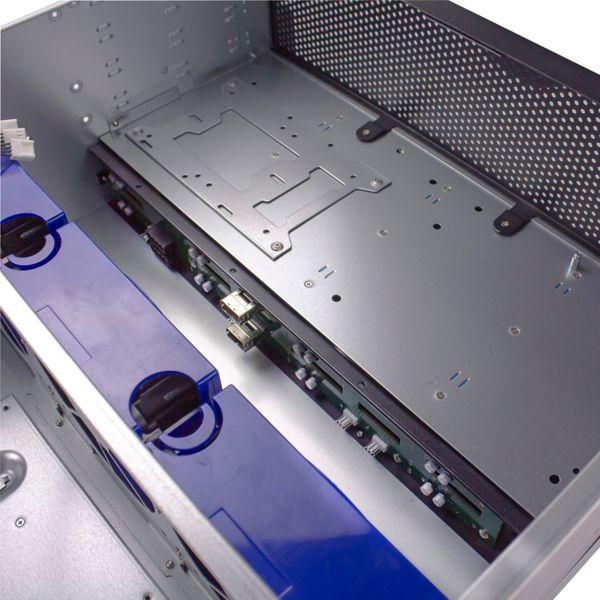

This 19" storage enclosure is designed for installation in 19" industrial cabinets. It features robust construction and high-quality workmanship. The unit comes with a pre-installed backplane for SAS or SATA hard disks and is expandable with telescopic rails.

Features:

  • 8x SAS/SATA bays with 2 status LEDs per bay
  • Bays with holes for 3.5" and 2.5" data media
  • ON/OFF switch and system reset
  • USB 2.0 front USB port

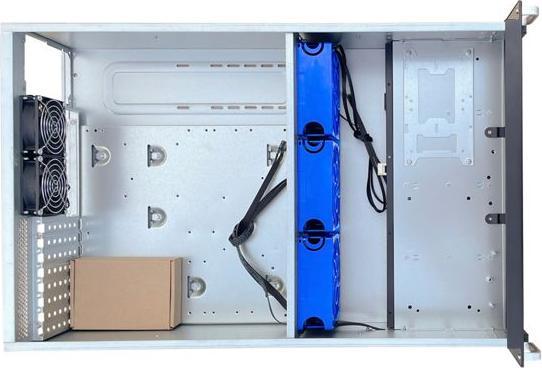

  • 3x 120mm hot swap fans between backplane and mainboard
  • 2x 80mm fans on the rear panel

Technical data:

  • Form factor: 4U
  • Installation depth: 680 mm
  • Mainboard types: M-ATX, E-ATX, ATX, SSI CEB, SSI EEB
  • 3.5" bays: 8 bays
  • Supports SAS (6 Gbit/s connections, backwards compatible)
  • Supports SATA (6 Gbit/s connectors, backwards compatible)
  • Supports SAS and SATA hard disks with 29/22 PIN (female)
  • 2x SFF-8087: 4x each SAS/SATA to one SFF-8087
  • 2x 4 PIN Molex power connector per backplane
  • Supports DC +12V, +5V, and +3.3V hard drives
  • 8x yellow power LED - illuminates when hard drive is connected
  • 8x blue status LED - flashes when hard drive is accessed
  • Fan type: 3x 120mm (hot swap) in the center bar and 2x 80mm in the rear panel
  • Number of PCI slots: 7x PCI slots
  • Data interfaces: USB 2.0 Host
  • Housing: steel/aluminium
  • Dimensions (W x H x D): 430 x 680 x 176 mm
  • Weight: 17 kg.

Key specifications

Item number
31696475

General information

Manufacturer
Fantec
Category
Server barebones
Manufacturer no.
2486
Release date
30.8.2022

Hardware form factor

Design
Rack Server
Number of rack units
4 U

Motherboard properties

Form factor
E-ATX

Hard drive slots

Max. number of hard disks
8
Form factor
2.5"3.5"
Interface
SASSATA

External interfaces

USB ports
USB-A
Exact USB ports
USB-A 2.0 (2x)
Data ports
PS/2 (1x)
Connectivity
USB

Origin

Country of origin
China

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
176 mm
Width
430 mm
Height
680 mm
Weight
17 kg
