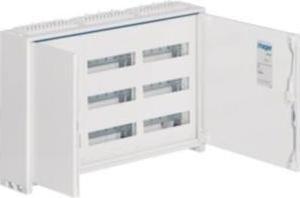

Hager Field Distributor, univers N FWB33S
Manufacturer: Hager
Designation: Field Distributor, univers N
Dimensions: 500 x 800 x 161 mm
Type: FWB33S
Mounting Type: Surface-mounted, Flush-mounted, Semi-recessed
Number of Rows: 3
Width in Division Units: 36
Type of Cover: Door
Cover Design: with cutout
Type of Door: single
Transparent Cover/Door: no
Signal-passing Door: no
With Lock: no
Type of Locking: other
Material of Housing: Steel
Installation Depth: 161 mm
Installation Height: 500 mm
Installation Width: 800 mm
Inner Depth: 156 mm
Grounding Terminal Block: yes
Neutral Terminal Block: yes
DIN Rail: yes
With Mounting Plate: no
Mounting Option: yes
EMC Version: no
UV Resistant: no
Color: white
RAL Number: 9010
Protection Class (IP): IP44
Height: 500 mm
Width: 800 mm
Depth: 165 mm

Hager Field Distributor, univers N FWB33S: additional details
Field Distributor surface-mounted, univers, IP44, SKII, 108PLE, H: 500 x 800 x D: 161 mm, QuickConnect.
Field distributor according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870.
Designed for installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1.

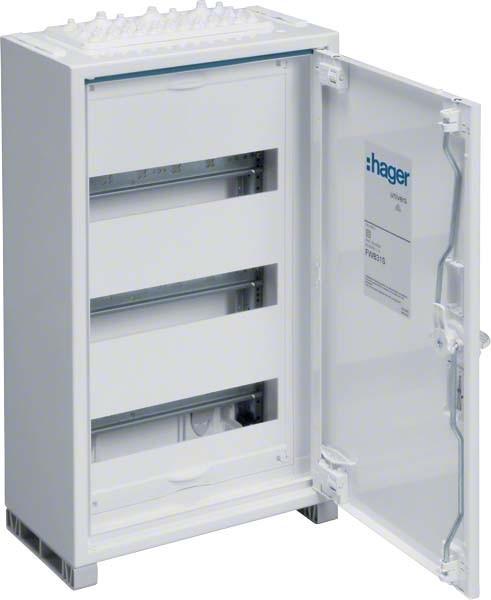

Consists of a cabinet with a door made of powder-coated and baked steel sheet.
From a cabinet width of 800 mm (3-pole), two-door design. Right doors maximum 2-pole wide.
Complete cabinet equipped with installation kit featuring profiled mounting rails, 7.5 mm high DIN rails with a 125 mm center distance and matching touch protection covers, including PE/N-QuickConnect terminals mounted on the carrier.
Cable entries at the top/bottom through removable flexible plastic flange plates, additionally replaceable.
Door with internal adjustable hinges and an opening angle of 110°.
Doors can be hinged on the right or left, tool-free change of door hinge side.
Door lock standard with three-point rod lock and sealable folding handle.
Interchangeable lockable locking systems and doors, see accessories.
EAN: 3250612735655.
