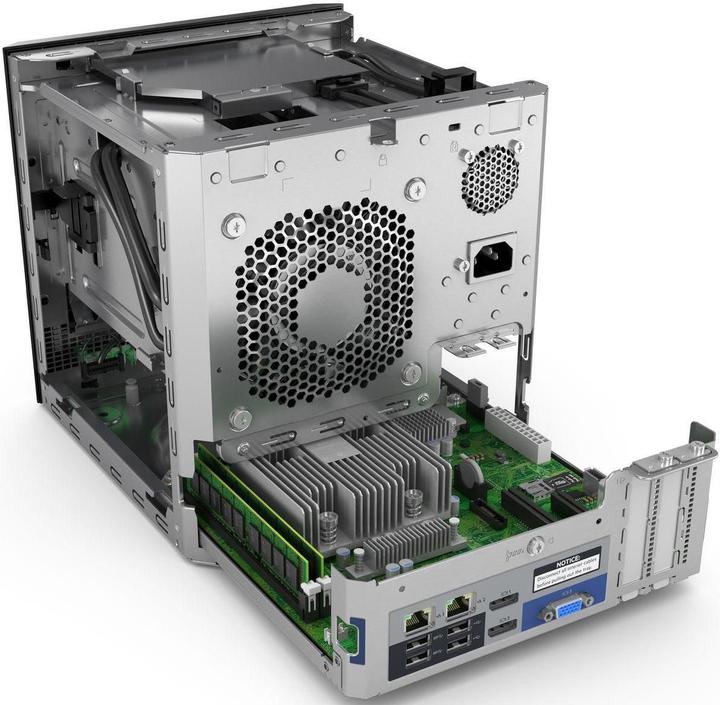

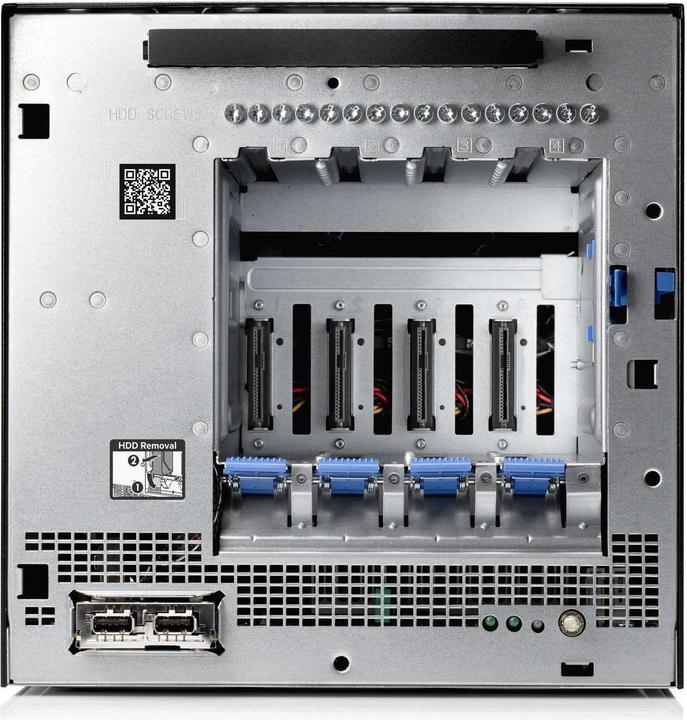

Does your small office, home office, or small business need compact entry-level servers? The HPE ProLiant MicroServer Gen10 offers a compact entry-level server specifically designed for small offices, home offices, and small business environments. This compact and user-friendly server can be placed almost anywhere. Easy access to hard drives, memory, and PCIe slots allows for simple management, installation, and upgrades.
Number of rack units | 0 U |
Processor family | Opteron |
Processor type | AMD Opteron X3216 |
Max. number of hard disks | 4 |
Number of processors | 1 x |
RAM | 8 GB |
Operating system | Linux |
Documents | |
Item number | 6359954 |
Manufacturer | HPE |
Category | Servers |
Manufacturer no. | 873830-421 |
Release date | 18.6.2017 |
External links |
Design | Micro Server |
Number of rack units | 0 U |
Processor family | Opteron |
Processor type | AMD Opteron X3216 |
Number of processors | 1 x |
Clock frequency | 1.60 GHz |
Number of processor cores | 2 -Core |
Max. turbo clock rate | 3 GHz |
Max. TDP | 35 W |
L3 Cache | 1 MB |
Memory type | DDR4-RAM |
Max. memory slots | 2 |
Memory configuration | 1 x 8GB |
RAM | 8 GB |
Max. RAM | 32 GB |
RAM speed | 1600 MHz |
RAM error correction | ECC |
RAM buffer | Unbuffered |
RAID configuration | 0, 1, 10 |
Possible raid configuration | 0, 1, 10 |
Mass storage controller type | SATA III |
Data storage controller | Marvell 88SE9230 |
Max. number of hard disks | 4 |
Form factor | 3.5" |
Interface | SATA |
Expansion slot | PCI Express x4 (1x), PCI Express x8 (1x) |
PCI express version (max.) | 3 |
Internal connection options | S-ATA II (1x), TPM Header |
USB ports | USB-A |
Exact USB ports | USB-A 2.0 (2x), USB-A 3.0 (2x) |
Connectivity | Ethernet |
Network connections | RJ45 (2x) |
Ethernet controller | BCM5720 |
Ethernet controller brand | Broadcom |
Max. port speed | 1000 Mbit/s |
Hardware interface | SATA |
Video connections | DisplayPort (2x), VGA (1x) |
Optical drive type | No drive |
Operating system | Linux |
Processor design | 64-bit |
Number of power supply units | 1 x |
Power | 200 W |
Max. number of power supply units | 1 |
CO₂-Emission | |
Climate contribution |
Length | 254 mm |
Width | 230 mm |
Height | 235 mm |
Weight | 6.50 kg |
Length | 37.50 cm |
Width | 33.30 cm |
Height | 33.30 cm |
Weight | 7.21 kg |
