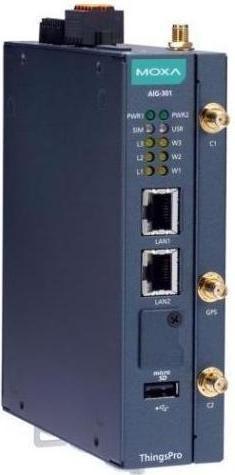

2-port Modbus to Azure advanced IIoT gateways with Arm Cortex-A7 dual-core 1 GHz processor, Azure IoT Edge, LTE Cat. 4 module for EU region, -20 to 70°C operating temperature.

Computer

CPU: Armv7 Cortex-A7 dual-core 1 GHz
DRAM: 2 GB DDR3L
Storage Pre-installed: 16 GB eMMC
Pre-installed OS: Moxa Industrial Linux (Debian 9, Kernel 4.4)
Number of Tags Supported: 2048

Computer Interface

TPM: TPM v2.0
USB 2.0: USB 2.0 hosts x 1, type-A connectors
Wi-Fi Antenna Connector: RP-SMA x 2
Cellular Antenna Connector: SMA x 2 (excluding AIG-301-AZU-LX/T-AZU-LX models)
GPS Antenna Connector: SMA x 1 (excluding AIG-301-AZU-LX/T-AZU-LX models)
Expansion Slots: AIG-301-CN-AZU-LX/T-CN-AZU-LX: mPCIe slot x 2; All Other Models: mPCIe slot x 1
Buttons: Reset button; Reset to factory default
Digital Input: DIs x 4
Digital Output: DOs x 4
Number of SIMs: 2
SIM Format: Nano (excluding AIG-301-AZU-LX/T-AZU-LX models)

Ethernet Interface

Magnetic Isolation Protection: 1.5 kV (built-in)
10/100/1000BaseT(X) Ports (RJ45 connector): 2

Ethernet Software Features

Industrial Protocols: Modbus TCP Client (Master); Generic MQTT; Azure IoT Device; AWS IoT Core; Azure IoT Edge; OPC UA Server; Sparkplug B Client
Configuration Options: Web Console (HTTP/HTTPS); ThingsPro Proxy Utility
Time Management: NTP Server/Client; GPS

Serial Interface

Console Port: 1 x 4-pin header
Number of Ports: 2
Connector: DB9 male
Baudrate: 300 bps to 921.6 kbps
Data Bits: 7, 8
Flow Control: ADDC (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Parity: None, Even, Odd, Space, Mark
Stop Bits: 1, 2

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422: Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w: Data+, Data-, GND
RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols: Modbus RTU/ASCII Master

CAN Interface

Number of Ports: 1
Connector: DB9 male
Baudrate: 10 to 1000 kbps
Industrial Protocols: CAN 2.0A; CAN 2.0B.
