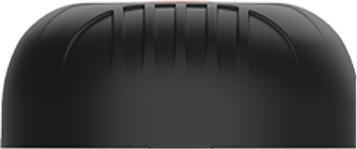

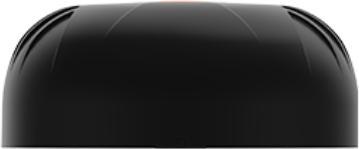

The MIMO-4-15 is a 5-in-1 high-performance multi-frequency antenna housed in a single enclosure. The antenna features two cellular antennas, two Wi-Fi antennas, and one GPS/GLONASS antenna. The two cellular MIMO antennas provide broadband coverage from 617 to 6000 MHz, thus covering the current LTE/4G and 5G bands for a future-proof implementation. The ultra-wideband performance of the cellular antennas allows for use with various operators and technologies, and is ready for future mobile technologies up to 6 GHz for 5G applications, as well as Wi-Fi applications from 5 to 6 GHz.

Additionally, the antenna includes two dual-band Wi-Fi antennas that simultaneously offer 2.4 GHz and 5 to 7.2 GHz on each antenna for 2x2 MIMO capability. The MIMO-4-15 outperforms most competitors due to the emphasis on design during the development of this high-performance antenna. The radiation patterns of all radiating elements provide an excellent balance between omnidirectionality, diversity of patterns, and good radiation characteristics at the desired height. This is a crucial criterion for the transport and marine market for which the antenna was specifically designed. Main applications include commercial/industrial vehicles, shipping, M2M, and other IoT systems that utilize a wide range of radio technologies while being future-proof across the broad frequency band.

Delivery includes:

• Antenna in black (2m cable permanently installed)
• Ø25 threaded stud (up to 70 mm clamping thickness), mast/wall mounting bracket, and adhesive surface mount
• 2 x RP-SMA(m) to SMA(f) adapters

Highlights:

• 5-in-1 high-performance multi-frequency vehicle antenna
• Ultra-wideband coverage from 617 to 6000 MHz for cellular networks
• 2x2 MIMO LTE/5G, 2x2 MIMO Wi-Fi, and GPS/GLONASS
• Robust and weather-resistant antenna with IP69K protection rating
• Ideal for use in transportation and maritime applications.
