The Primewire coaxial cable transmits analog and digital signals from cable networks or a DVB-T system to televisions, radios, and receivers in excellent quality. The clean signal transmission is enabled by a high-density shielding that virtually eliminates external interference and ensures high-quality picture and sound. The shielding measure of 135 dB provides maximum protection against disturbances from mobile phones and radio applications.

Perfectly fitting connectors with gold-plated contacts allow for optimal connection and minimal contact resistance. A fabric sheath protects the cable from damage and improves handling (no tangling or knotting).

Product features:

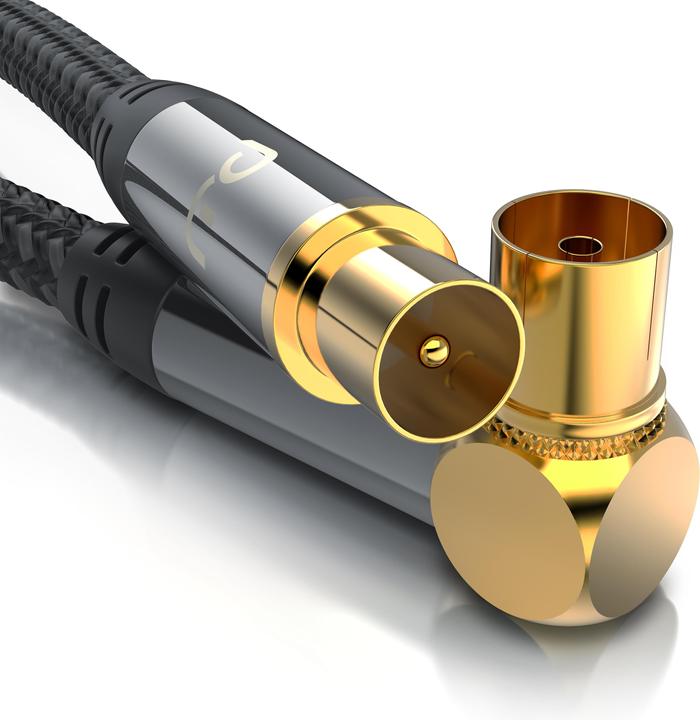

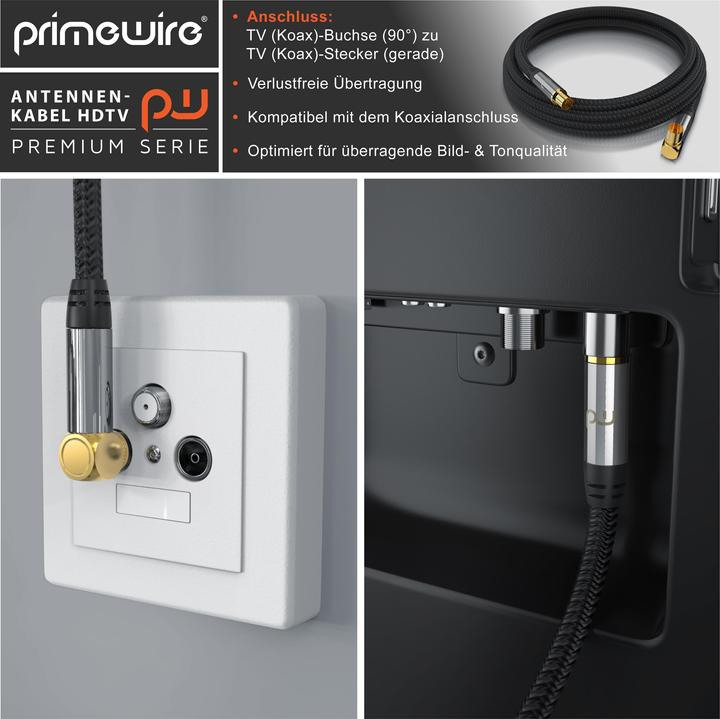

• Connection: TV (coax) socket (90° angle) to TV (coax) plug (straight)
• Design: coaxial
• Shielding measure: ~ 135 dB (protection against disturbances from mobile phones and radio applications)

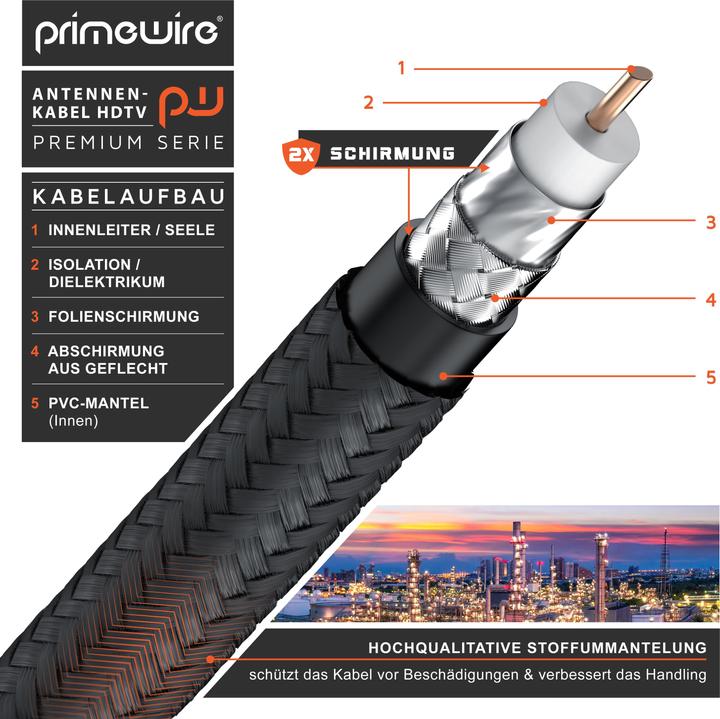

• High-density shielding
• High-quality full metal connector
• OFC - oxygen-free copper cable
• Gold-plated connectors (precise fit and corrosion-resistant)
• Fabric sheath
• Perfect for installation (indoor use)

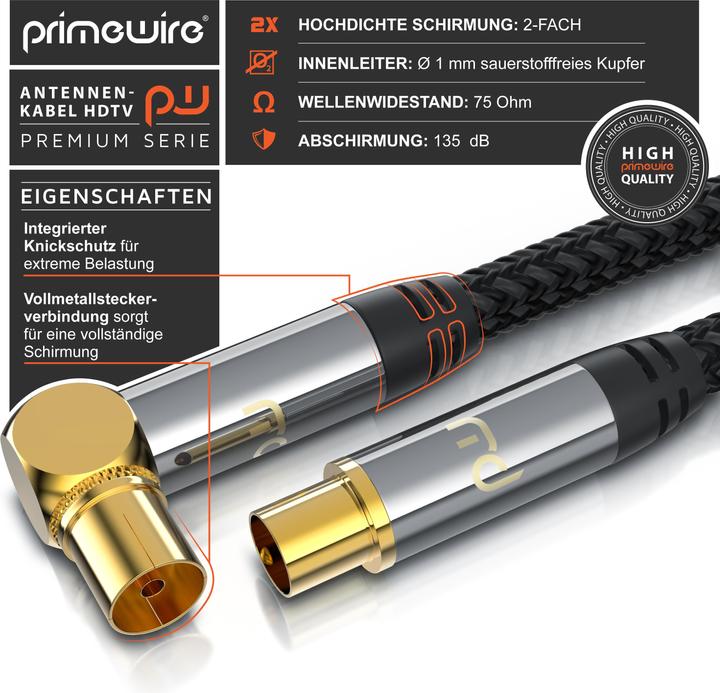

• Flexible bend protection

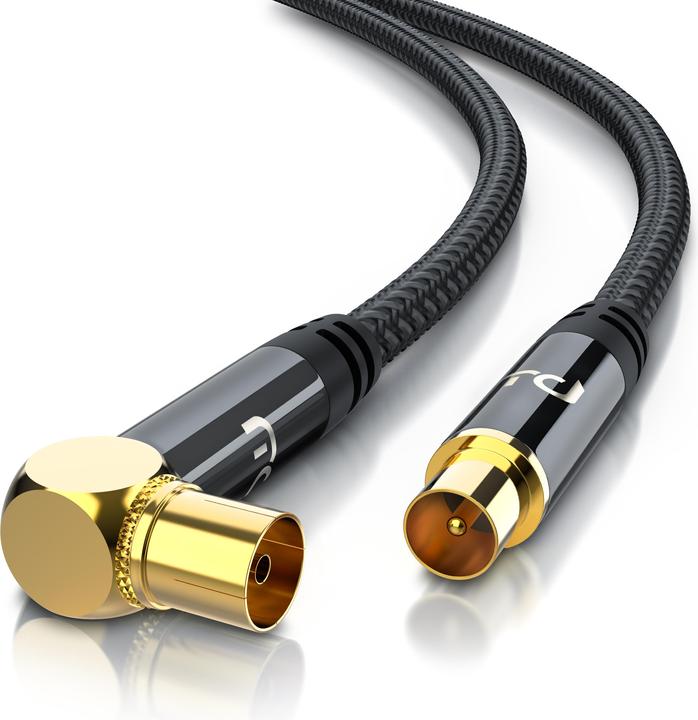

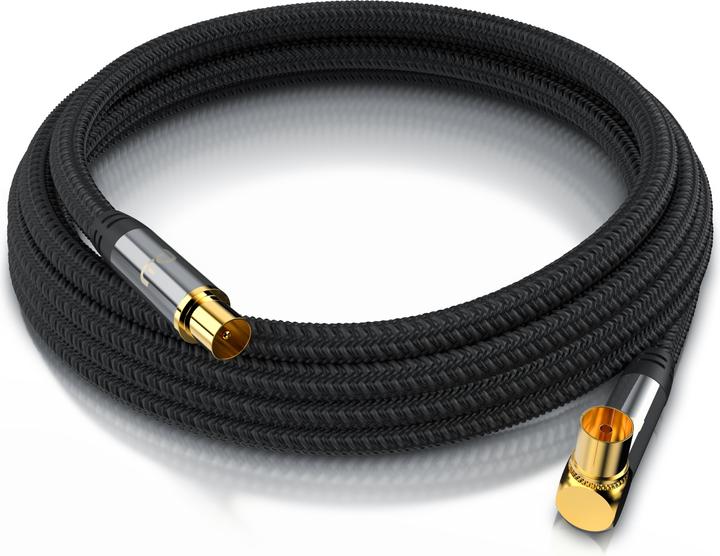

Delivery includes: Primewire Premium TV antenna cable pre-assembled with 90° angle socket to straight plug, fabric sheath.

Technical data:

• Wave resistance: 75 Ohm (Ω)
• Shielding: 135 dB

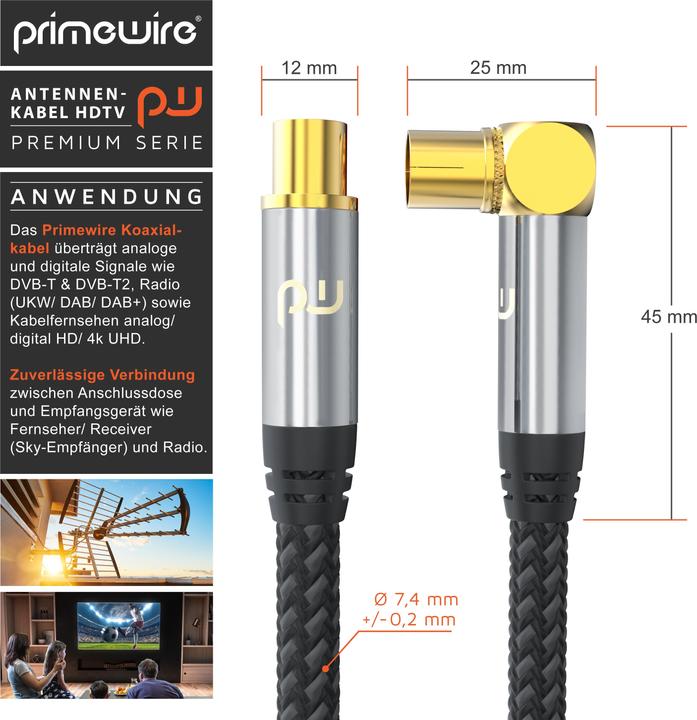

• Outer diameter with fabric sheath: 7.4 +/-0.2 mm
• Cable sheath thickness: 0.9 mm
• Dielectric: 4.6 mm Ø
• Inner conductor: 1 mm Ø OFC (low-oxygen copper).
