The Primewire coaxial cable transmits analogue and digital signals from the cable network or a DVB-T
system to televisions, radios and receivers in excellent quality. The clean signal transmission is made possible
is made possible by high-density shielding, which virtually eliminates external interference and ensures
high-quality picture and sound quality. The shielding rating of 135 dB ensures maximum protection
from interference from mobile phones and radio applications

Precisely fitting connections with gold-plated contacts enable an optimum connection and the lowest transition resistances.
transition resistances. A fabric sheath protects the cable from damage and improves handling (no knotting or tangling).
handling (no knotting or tangling).

Product features

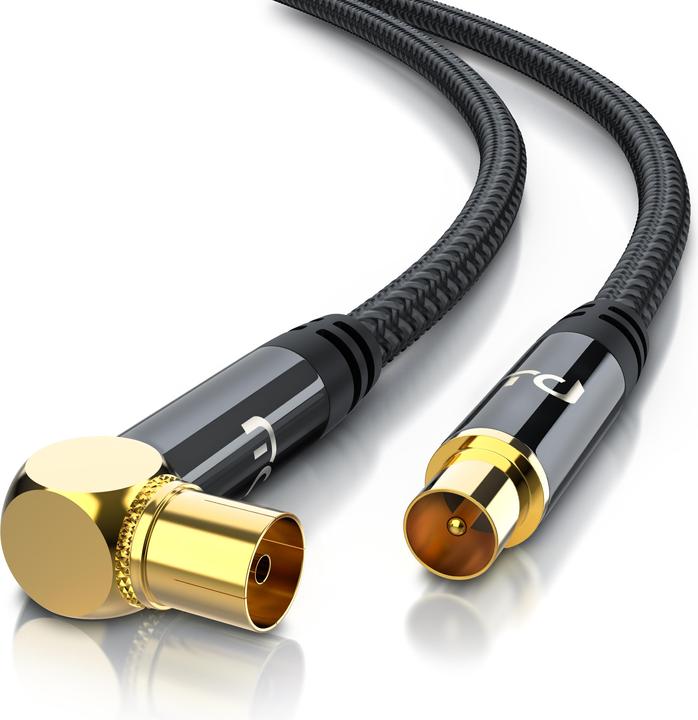

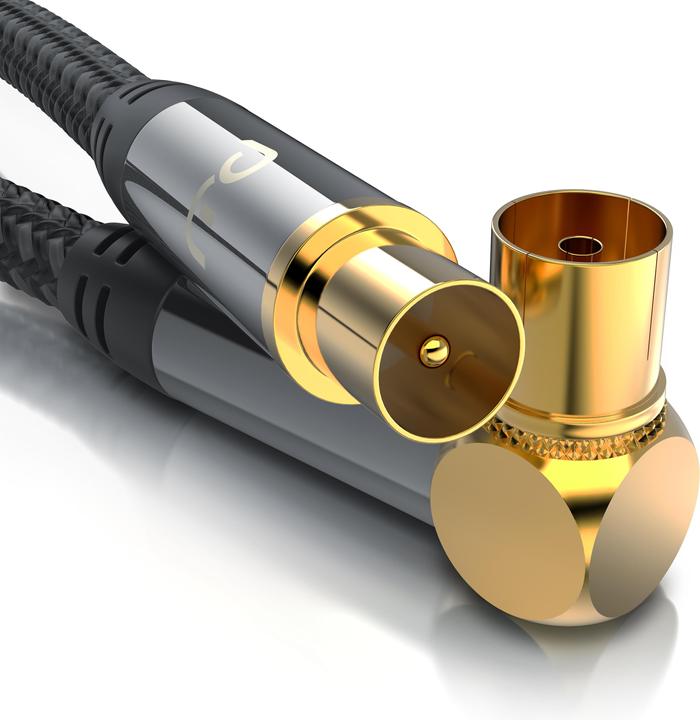

• Connection: TV (coax) coupling (90° angle) to TV (coax) plug (straight)

• Construction: coaxial

• Shielding rating: ~ 135dB (protection against interference from mobile phones and radio applications)

• High-density shielding

• high-quality full metal plug connection

• OFC - oxygen-free copper cable

• Gold-plated plugs (precise fit + corrosion-resistant)

• fabric sheathing

• Perfectly suitable for laying (indoors)

• flexible kink protection

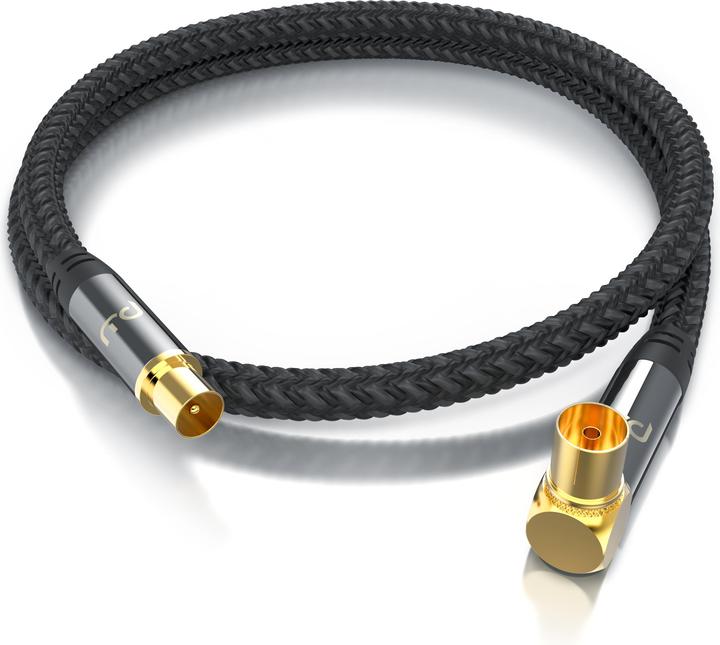

Scope of delivery: Primewire Premium TV aerial cable ready assembled with 90° angled socket on straight plug
straight plug, fabric sheathing

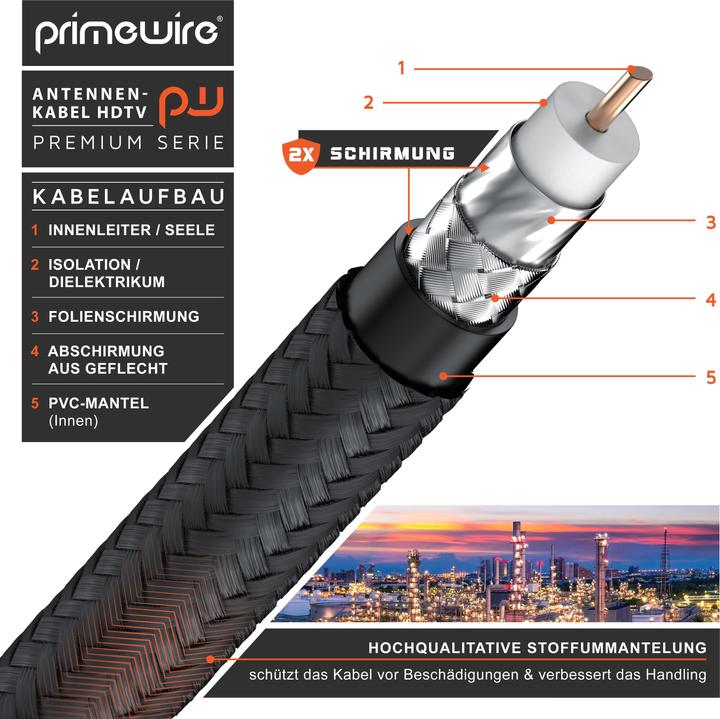

Technical data

• Characteristic impedance: 75 Ohm (Ω)

• Shielding 135 db

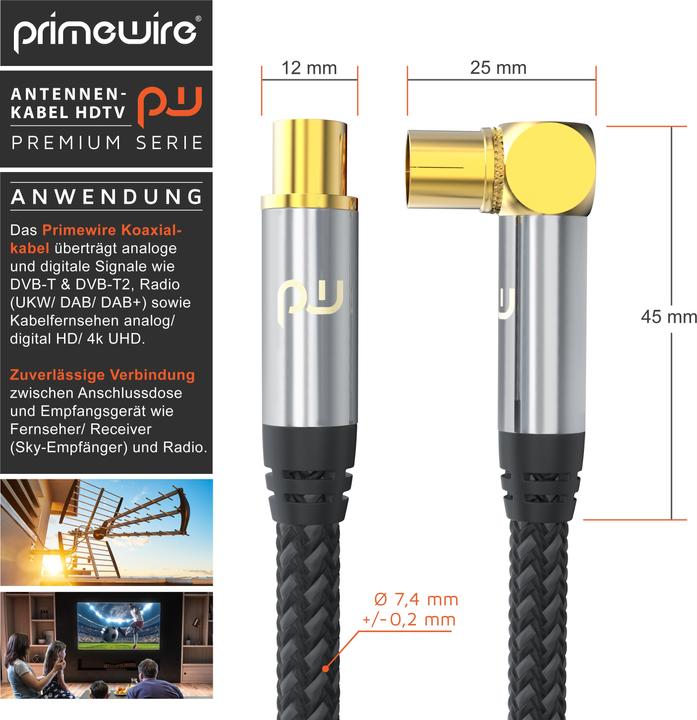

• Outer diameter with fabric sheathing: 7.4 +/-0.2 mm

• Cable sheath thickness: 0.9 mm

• Dielectric: 4.6 mm Ø

• Inner conductor: 1 mm Ø OFC (low-oxygen copper).
