Perfect picture and sound quality, developed for the demands of the digital television age.

The Primewire coaxial cable transmits the signals from the satellite system to televisions, radios and receivers in excellent quality. It has a shielding rating of 135 dB, which provides maximum protection against interference from mobile phones and radio applications. The clean signal transmission is made possible by high-density shielding, which virtually eliminates external interference and disturbances and ensures high-quality / outstanding picture and sound quality.

Precisely fitting connections with gold-plated contacts enable an optimum connection and perfect transmission quality. A fabric sheath protects the cable from damage and improves handling (no knotting or tangling).

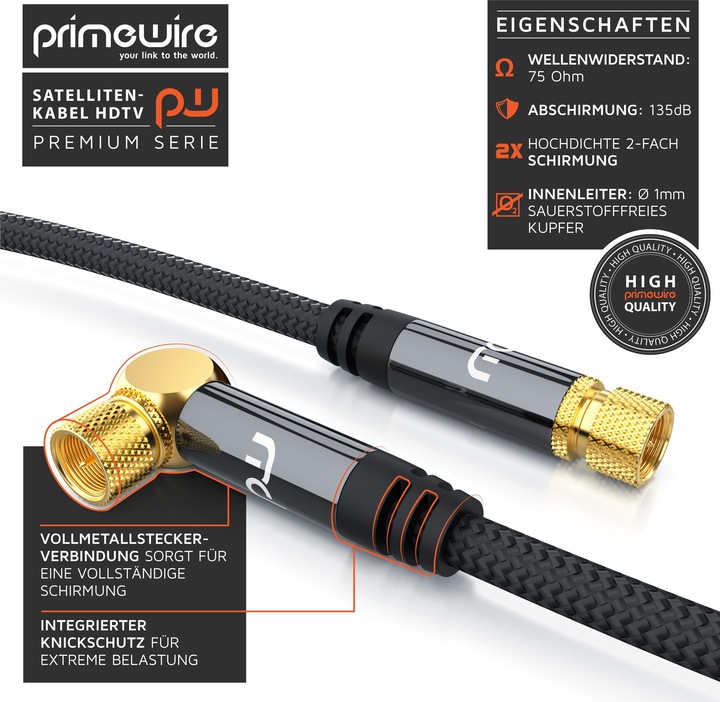

Cable properties

• High-density shielding

• OFC - oxygen-free copper cables

• Fabric sheathing

• Gold-plated precision plugs (precise fit + corrosion-resistant)

• Perfectly suited for laying

• flexible bend protection

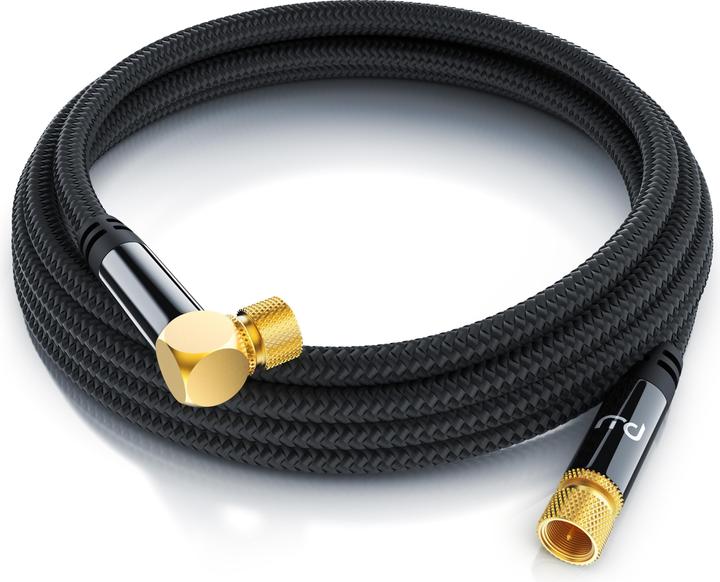

Scope of delivery: Primewire satellite cable with fabric sheathing

Technical data

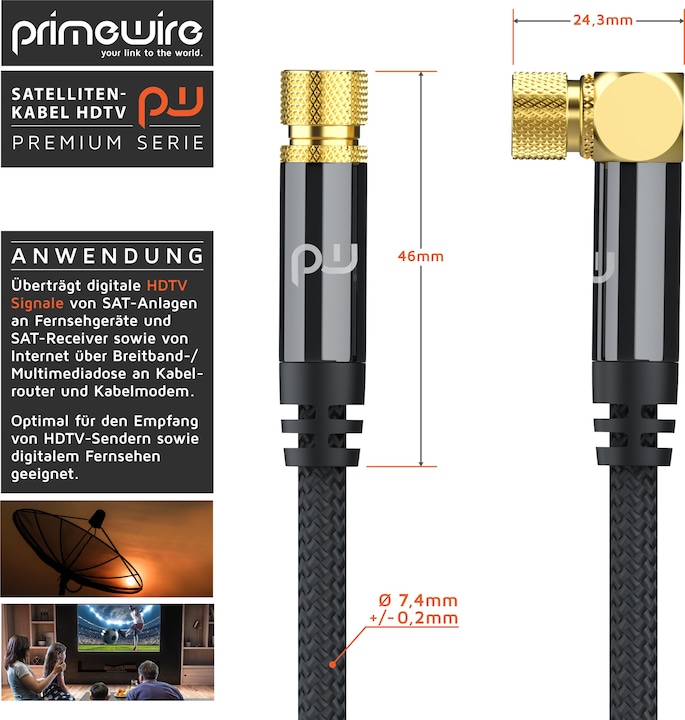

• F-connector 90° (male) / F-connector straight (male)

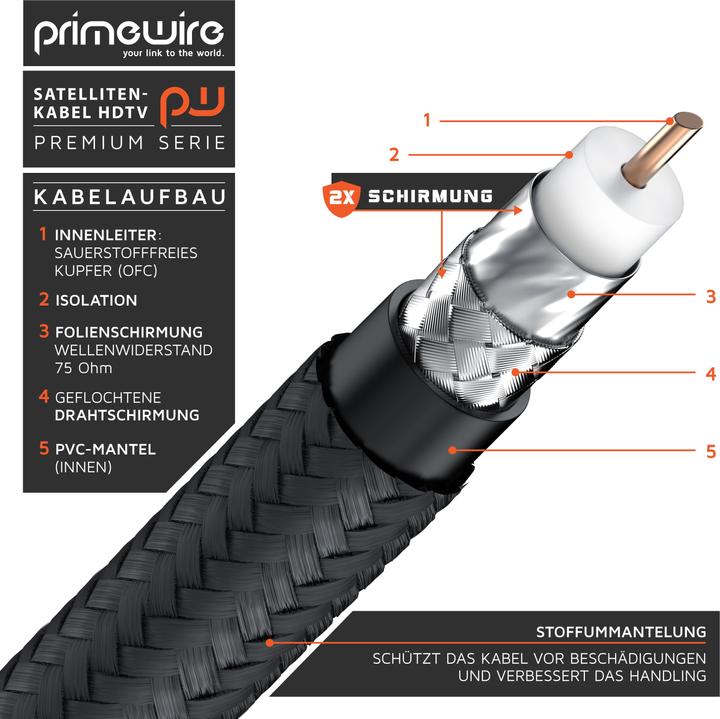

• Structure: coaxial

• Shielding rating: 135dB

• Resistance: 75 Ohm (Ω) |

• Outer diameter with fabric jacket: 7.4 +/-0.2 mm

• Cable sheath thickness: 0.9 mm

• Dielectric: 4.6mm Ø

• Inner conductor: 1mm Ø (OFC = copper).
