Perfect picture and sound quality, designed for the demands of the digital television age.

The Primewire coaxial cable transmits signals from the satellite system to televisions, radios, and receivers in excellent quality. It features a shielding measure of 135 dB, providing maximum protection against interference from mobile phones and radio applications. Clean signal transmission is ensured by a high-density shield that nearly eliminates external disturbances and ensures high-quality picture and sound.

Precision connectors with gold-plated contacts allow for optimal connection and flawless transmission quality. A fabric sheath protects the cable from damage and improves handling (no tangling or knotting).

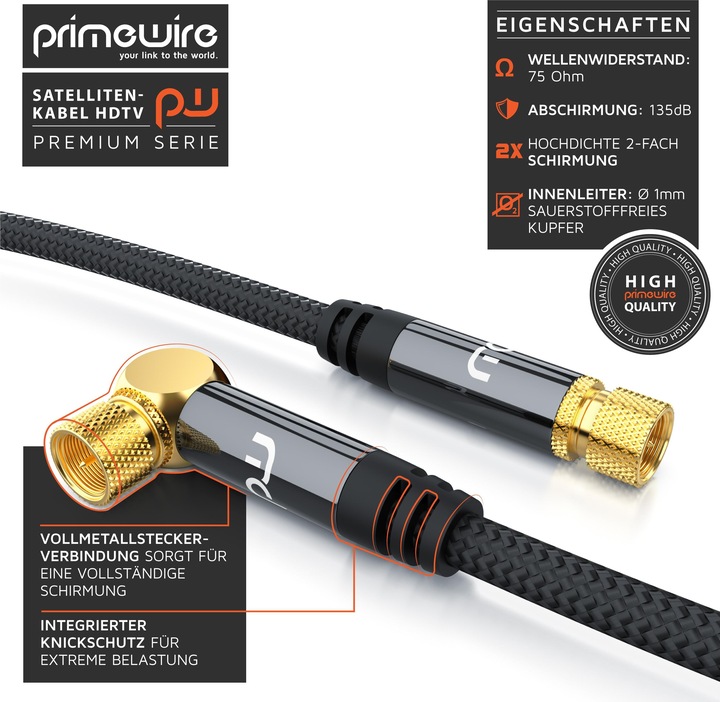

Cable Features

• High-density shielding
• OFC - oxygen-free copper conductors
• Fabric sheath

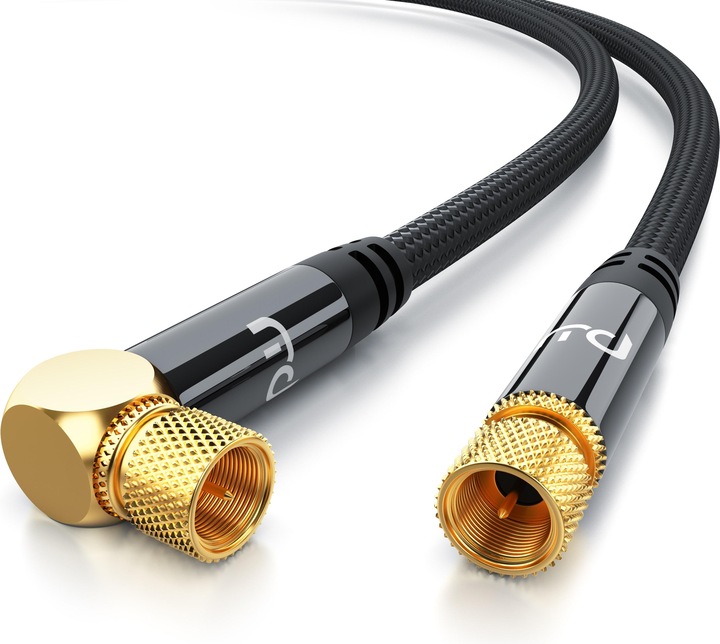

• Gold-plated precision connectors (custom-fit and corrosion-resistant)
• Perfect for installation
• Flexible bend protection

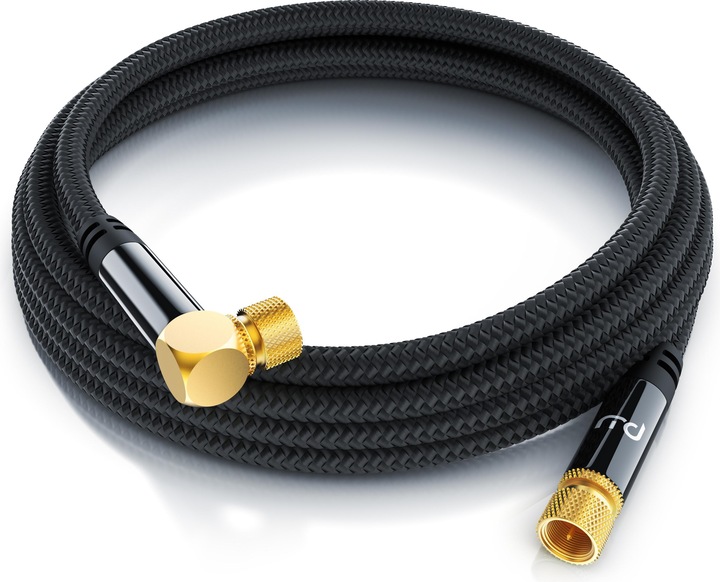

Delivery includes: Primewire satellite cable with fabric sheath

Technical Specifications

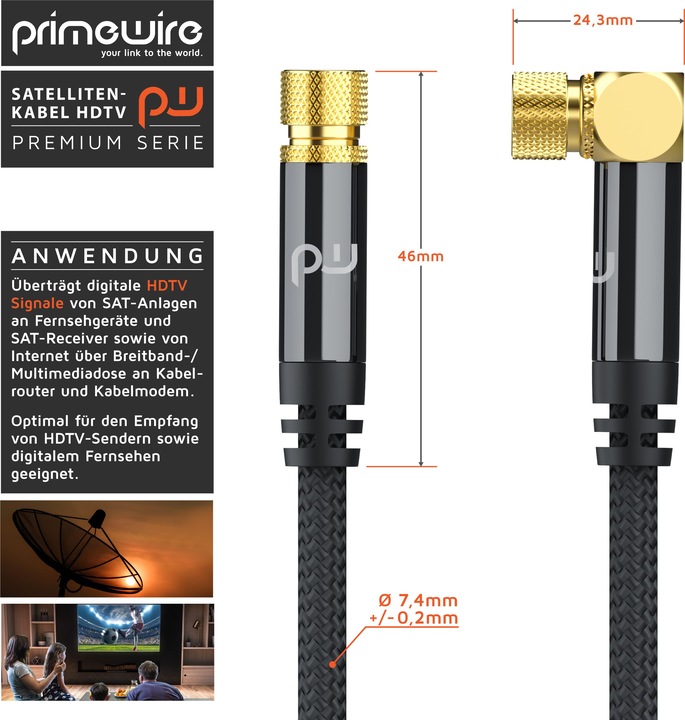

• F connector 90° (male) / F straight connector (male)

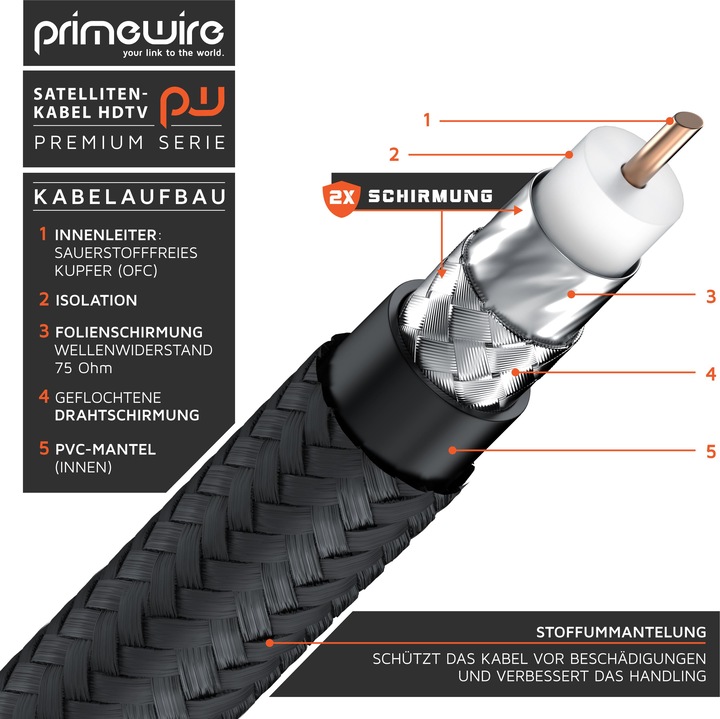

• Structure: coaxial
• Shielding measure: 135 dB
• Resistance: 75 Ohm (Ω)
• Outer diameter with fabric sheath: 7.4 +/- 0.2 mm
• Cable sheath thickness: 0.9 mm
• Dielectric: 4.6 mm Ø
• Inner conductor: 1 mm Ø (OFC = copper).
