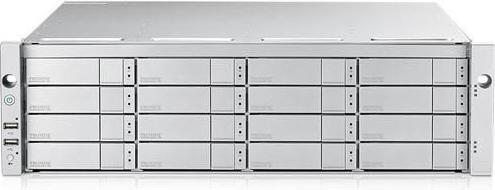

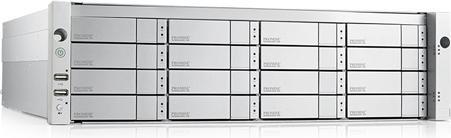

Promise VTrak E5600FD - Hard disk array - 64 TB - 16 bays (SATA-600 / SAS-3)

Fibre Channel
Currently out of stock
Free shipping starting at 30,–

Product details

The VTrak E5600FD disk array from Promise Technology is a powerful and reliable storage solution designed for demanding business applications. With a total capacity of 64 TB and 16 bays for 3.5-inch HDDs, this rack system offers high storage capacity and flexibility. The combination of Serial Attached SCSI (SAS) and Fibre Channel interfaces enables fast data transfer and high bandwidth, which are essential for modern enterprise requirements. The E5000 series is known for its high availability and reliability, supported by redundant components such as Active-Active controllers and power supplies. These features ensure that data is always accessible, even in critical situations. With an impressive performance of up to 542,100 IOPS for reading and 111,686 IOPS for writing, the VTrak E5600FD is ideal for applications that require high data processing speeds.

  • Supports up to 542,100 IOPS for reading and 111,686 IOPS for writing
  • Provides redundant components for maximum data availability
  • Enables high bandwidth through 16 Gbit/s Fibre Channel and 12 Gbit/s SAS connections
  • Optimized for business-critical applications with high data volumes
  • Flexible RAID management with multiple configuration options.

Key specifications

Design
Rack Server
Number of rack units
3 U
Item number
18627505

General information

Manufacturer
Promise
Category
Storage systems
Manufacturer no.
F40E56F00010004
Release date
5.5.2021

Housing Properties

Design
Rack Server
Number of rack units
3 U
External interfaces
Fibre Channel
transfer speed
12 Gbit/s

expansion option

Max. number of hard disks
16
Capacity Max.
64 TB

equipping

Number of loaded HDD
16 x
Total capacity
64 TB
Form factor
3.5"
Rotational speed
7200 rpm
Interface
SAS

Controller properties

Mass storage controller type
RAID
Possible raid configuration
0110550660

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
50.70 cm
Width
44.67 cm
Height
13.10 cm
Weight
38.30 kg
