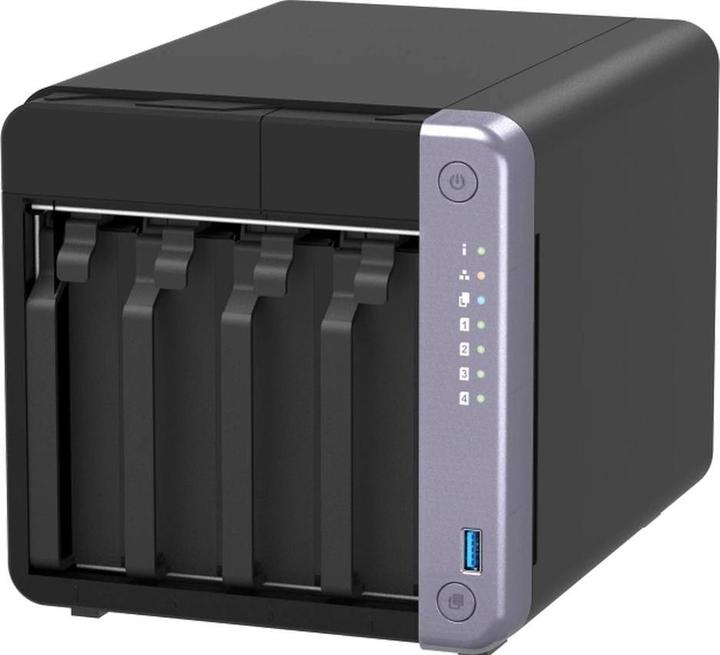

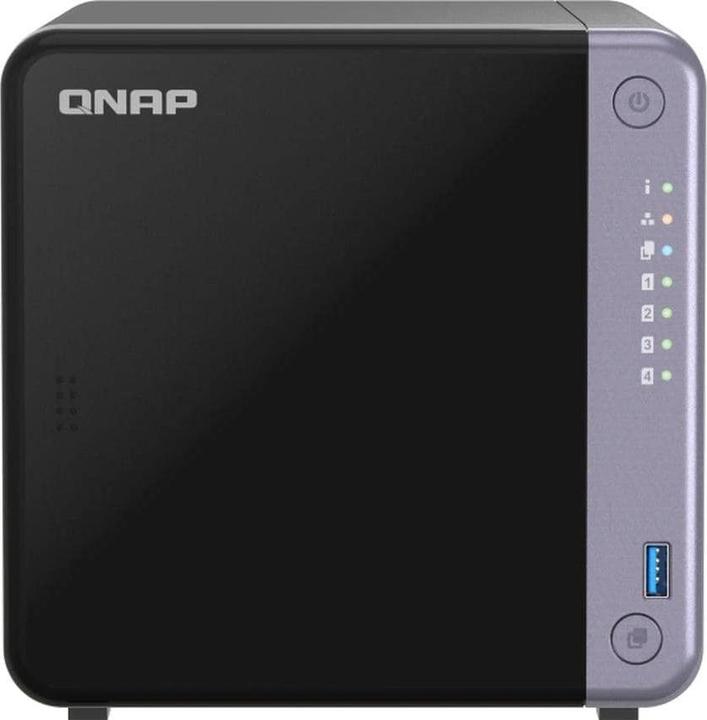

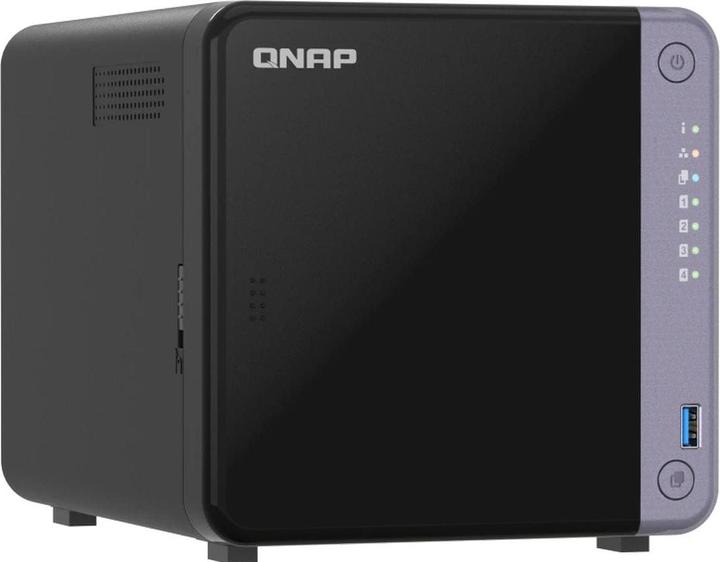

Cost-efficient 4-bay 10GbE NAS to accelerate your workloads.
Utilise the potential of 4-bay storage capacity and the speed of 10GbE with the TS-432X. This versatile storage solution offers secure backups, fast transfers, support for containerised applications and much more. The cost-effective yet powerful TS-432X optimises the efficiency of your workflow without breaking your budget.
Quad-core for multitasking
Quad-core 2.0GHz processor and 4GB non-ECC RAM (expandable to 16GB, supports ECC RAM)
High-speed 10GbE SFP+
The 10GbE connectivity with a single port increases the transmission speed for intensive data transfer and shortens the backup time.
2.5 GbE is a must.
Use SMB Multichannel or Port Trunking with two integrated 2.5GbE ports to increase bandwidth and access speed.
PCIe Gen 3 expandability
Install a PCIe expansion card to add 2.5/5/10GbE connectivity or M.2 SSD slots on the NAS for more I/O potential.
Faster USB data transfer and backup
Two USB 3.2 Gen 1 (5Gbps) ports with one-touch copy support enable faster backups to/from USB devices.
Centralised backup and snapshot protection
Easy backup of different data types and endpoints and regular snapshot creation to prevent ransomware threats.
Max. number of hard disks | 4 |
Memory | 4 GB |
NAS HDD assembly | NAS Empty Enclosure |
Total storage capacity | 0 TB |
RAID configuration | 0, 1, 10, 5, 6 |
Network connections | RJ45 2.5 Gigabit Ethernet (2x), SFP+ (1x) |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Item number | 47279213 |
Manufacturer | QNAP |
Category | NAS |
Manufacturer no. | TS-432X-4G |
Release date | 17.7.2024 |
Sales rank in Category NAS | 44 of 336 |
Colour | Black |
Exact colour description | Black |
NAS HDD assembly | NAS Empty Enclosure |
Model | Desktop |
Max. number of hard disks | 4 |
Hard drive form factor | 3.5" |
RAID configuration | 0, 1, 10, 5, 6 |
Memory type | DDR4-RAM |
Memory | 4 GB |
Maximum possible memory | 16 GB |
Add-on packages | Download Station, QNAP: Notes / Signage / Photo / Video / Multimedia / Digital TV / TV / Music / Surveillance Station, Virtualization Station, myQNAPcloud, File / Backup / HD / DJ / Download Station, Qairplay, Qsync, Print Server, HappyGet, DLNA Media Server, Antivirus, Webserver, iTunes / Mail / VPN Server, Synology: Antivirus |
Data storage configuration | 0 TB |
Total storage capacity | 0 TB |
Hard disk additional functions | Hot swapping |
Clock frequency | 2 GHz |
Number of processor cores | 4 -Core |
Network connections | RJ45 2.5 Gigabit Ethernet (2x), SFP+ (1x) |
Connectivity | Ethernet |
USB ports | USB-A |
Exact USB ports | USB-A 3.2 Gen 1 (2x) |
Internal connection options | PCI Express x4 (1x) |
Power consumption | 90 W |
Number of fans | 1 x |
Fan diameter | 120 mm |
Redundant power supply unit | No |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | AC, Lan (RJ-45) |
Length | 22.65 cm |
Width | 17 cm |
Height | 16.50 cm |
Weight | 1.99 kg |
Length | 28.90 cm |
Width | 24.10 cm |
Height | 20.80 cm |
Weight | 3.38 kg |
