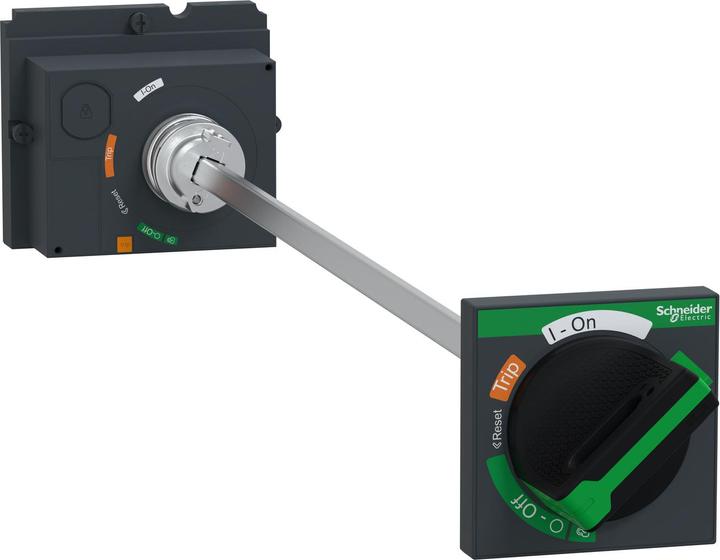

Schneider Electric Rotary Drive with LV429338T

Manufacturer: Schneider Electric
Description: Rotary drive with door coupling for ComPacT
Type: LV429338T
With shaft extension: yes
With door lock: no
Lockable: yes
With red/yellow handle: no

This is a rotary drive with door coupling for ComPacT NSX 100/160/250 devices, PowerPact Multistandard H/J, and EasyPact CVS 100/160/250. It is suitable for galvanic isolation and is used for standard applications. Access to the settings of the tripping device and the trip button remains available. The rotary drive is equipped with a black standard handle and indicates the three device positions O (OFF), I (ON), and tripped. This extended version allows operation of devices mounted at the back of the switchgear from the front of the switchgear. The distance between the back of the circuit breaker and the switchgear door ranges from 185 mm to 600 mm. The protection ratings are IP55 and IK08. This rotary drive can be locked in the OFF position with 1 to 3 padlocks (shackle diameter 5 to 8 mm). Optionally, it is possible to install a Ronis or Profalux key switch on the underside of the handle to achieve the same function as a padlock.
