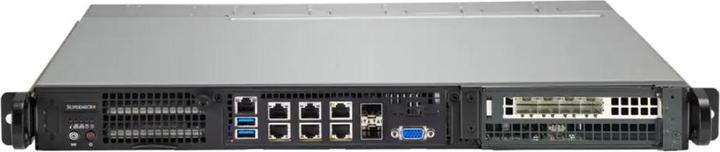

Supermicro Server Housing 1U 2xSFF SATA/PCIe SYS-110D-4C-FRAN8TP

Price in EUR including VAT, free shipping
Ratings
Delivered between Tue, 24.6. and Wed, 25.6.
Only 1 item in stock at supplier

Product details

The Supermicro IoT SuperServer SYS-110D-4C-FRAN8TP is a powerful 1U rack server designed for demanding applications in the IoT environment. With a pre-installed Intel Xeon D-2712T processor and a TDP of 65 W, this server delivers efficient performance for various computing requirements. The server supports up to 512 GB of DDR4 ECC RAM, providing high memory capacity and error correction. Connectivity is ensured through multiple network ports, including 4x 1G RJ45 and 2x 25G SFP28, allowing for flexible integration into existing network infrastructures. Additionally, the server features two 2.5-inch drive bays and an M.2 slot to meet data storage needs. With a compact design and the capability to support two power supplies, the SYS-110D-4C-FRAN8TP is a reliable choice for businesses seeking a robust and scalable server solution.

  • 4x DDR4 (ECC) LRDIMM slots for up to 512 GB RAM
  • Pre-installed Intel Xeon D-2712T processor
  • Versatile network ports: 4x 1G RJ45, 2x 25G SFP28
  • Support for RAID 0, 1, 5, 10 via 6 SATA3 ports
  • Compact 1U form factor with the option to install two power supplies.

Key specifications

Number of CPU sockets
1 x
Processor family
Xeon D
Max. memory slots
4
Item number
42366910

General information

Manufacturer
Supermicro
Category
Server barebones
Manufacturer no.
SYS-110D-4C-FRAN8TP
Release date
22.1.2024

Hardware form factor

Design
Rack Server
Number of rack units
1 U

Motherboard properties

Manufacturer
Intel
Chipset
Intel SoC
Number of CPU sockets
1 x
Processor family
Xeon D

Memory

Memory type
DDR4-RAM
Memory form factor
R-DIMM
Max. memory slots
4
Max. RAM
512 GB
RAM speed
2667 MHz
RAM error correction
ECC

Data storage controller

Possible raid configuration
0, 1, 10, 5

Hard drive slots

Max. number of hard disks
2
Form factor
2.5"
Interface
SATA III

External interfaces

USB ports
USB-A
Exact USB ports
Micro USB-B 3.1 (2x), USB-A 2.0 (2x)
Connectivity
RJ45

Internal interfaces

Internal connection options
M.2 (1x), S-ATA III (8x)
Expansion slot
PCI Express x16 (Gen 4) (1x)
PCI express version (max.)
4

Network

Network connections
RJ45 (1x)
Ethernet controller
Ethernet LAN
Ethernet controller brand
Intel
Max. port speed
10000 Mbit/s

Video connections

Video connections
D-Sub (1x)

Optical drive properties

Optical drive type
No drive

Operating system

Operating system
No operating system

Mains supply properties

Number of power supply units
2 x
Max. number of power supply units
2
Power
800 W

Origin

Country of origin
Germany

Voluntary climate contribution

CO₂-Emission
Climate contribution

Product dimensions

Length
399 mm
Width
437 mm
Height
43 mm
Weight
8.16 kg
