Description, Purpose

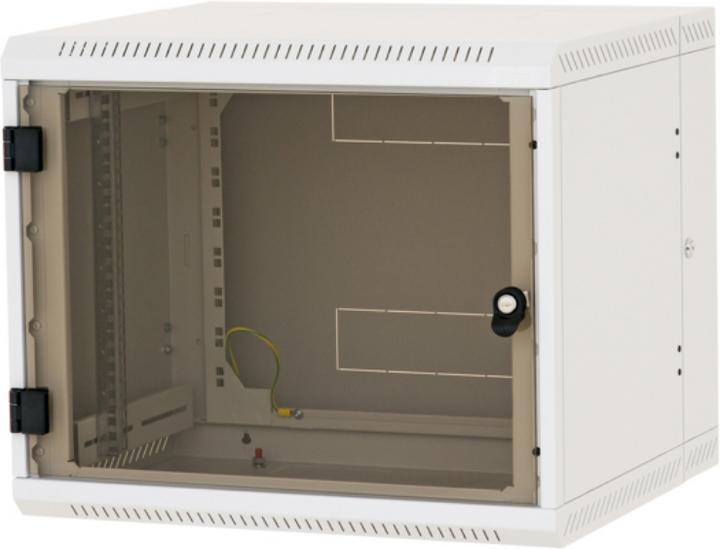

• Two-part 19" wall-mounted distribution cabinet with protection class IP30
• The housing is mounted directly to the wall.
• The cabinet includes two adjustable vertical mounting rails.
• Cabinet construction:
• Compact welded construction
• Full glass door made of 4 mm thick safety glass, with optional full metal or perforated door.
• The permissible load capacity of each door is a maximum of 10 kg.
• The minimum coating thickness is 65 µm.
• The cabinets are designed for the installation of data and telecommunications systems and their distribution systems.
• The cabinet frame and all removable parts (side and rear panels, doors, etc.) are connected with grounding cables, which must be properly secured and plugged in throughout the entire service life of the cabinet.
• There is an M8 screw in the bottom of the cabinet as the main grounding point.
• Cable entry points with break-out covers are located at the top and bottom of the rear panel, as well as one additional entry point in the roof and floor.
• The A6 version features break-out openings in the roof and floor of the cabinet for the installation of fans.
