Name: RMA-22-A88-CAX-A1 - 19" Standing Cabinet, Removable Side Panels, 22 U, 800 x 800 mm
Brand: Triton
SKU: 16171027
Price: 553.47 EUR
Availability: InStock

isSSR

offer

olderThan3MonthTimestamp

path

sectorId

shopArea

slug

tagIds

productDetailPageQuery

productBySlug

alternateLinks

dutchAuctionBannerLazy

alternateLinksByPath

currentAuctionEvent

Triton

Delta S is the perfect cabinet for the highest demands, featuring a robust steel free-standing design for data and telecommunication installations. High-quality workmanship ensures an excellent appearance, making it particularly suited for heavy load carrying capacities due to its strength.

Sliding rails are fixed rigidly to the shell of the cabinet, set up at 19 inches on the center line. Cabinets with a width of 800mm are also prepared for the possibility of setting up 21 inches on center, as well as 19 inches off center to the right and left. All positions are specified by holes for fixing the sliding rails with Tap-tite screws.

As standard, the cabinet includes the following features:

- Hinged front door with a lockable swing handle, typically with glass but may be solid steel or perforated as required. The 180° hinge design allows for easy removal of the door or a change in the direction of door opening.
- Removable side and rear covers secured with key-operated locks.
- Cable entry points in the top, bottom, and upper and lower rear sections of the cabinet, each covered by a breakout style blanking panel. The square area of the cable entry opening is now larger (333 cm²).
- Two pairs of vertical 19-inch fixing rails that can be adjusted infinitely back and forth in the depth of the cabinet, attached to each side. In 800mm square versions, the frame may also be adjusted across the width of the cabinet.
- Openings are provided in the base and top of the cabinet for fan units, with the top fan opening covered by a 3D cover.
- A brush strip to restrict dust ingress through the chosen cable entry opening.
- Adjustable mounting and leveling feet.
- Vented top and bottom sections for natural convective ventilation.
- Earthing system.
- Supplied with elementary mounting material.

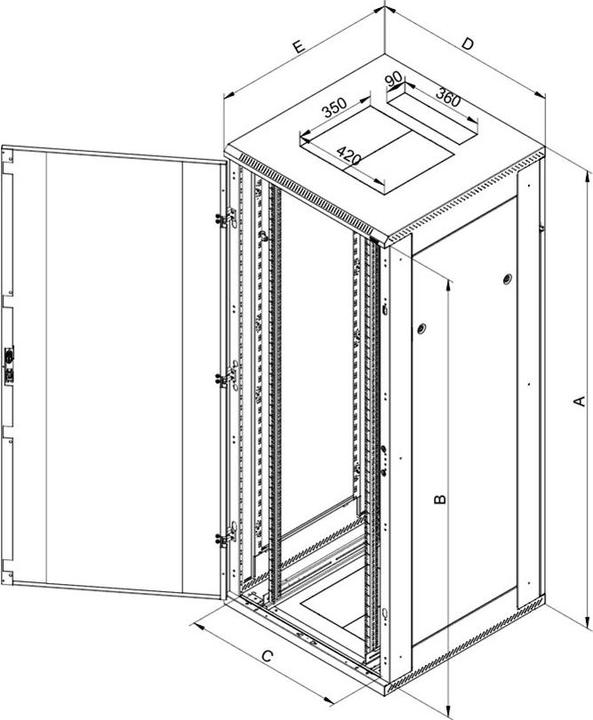

Actual product image Triton RMA-22-A88-CAX-A1 - 19" Standing Cabinet, Removable Side Panels, 22 U, 800 x 800 mm (22 RU, 19 inch rack)

Key specifications

Type

Protection type (IP code)

Ventilation

Server cabinet features

Item number

RMA-22-A88-CAX-A1 - 19" Standing Cabinet, Removable Side Panels, 22 U, 800 x 800 mm
