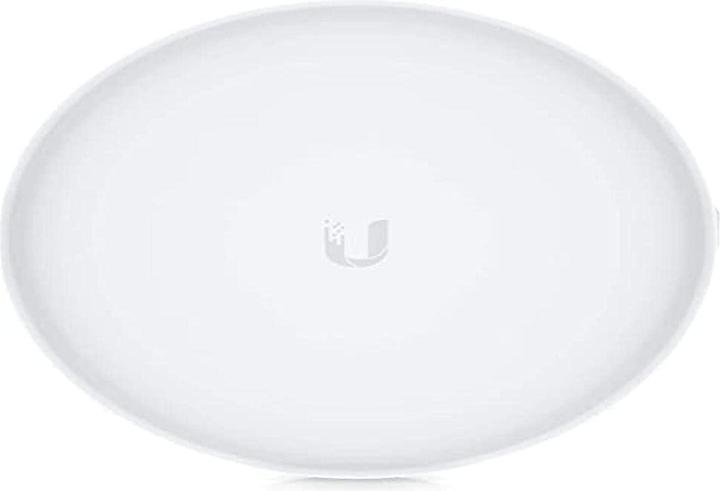

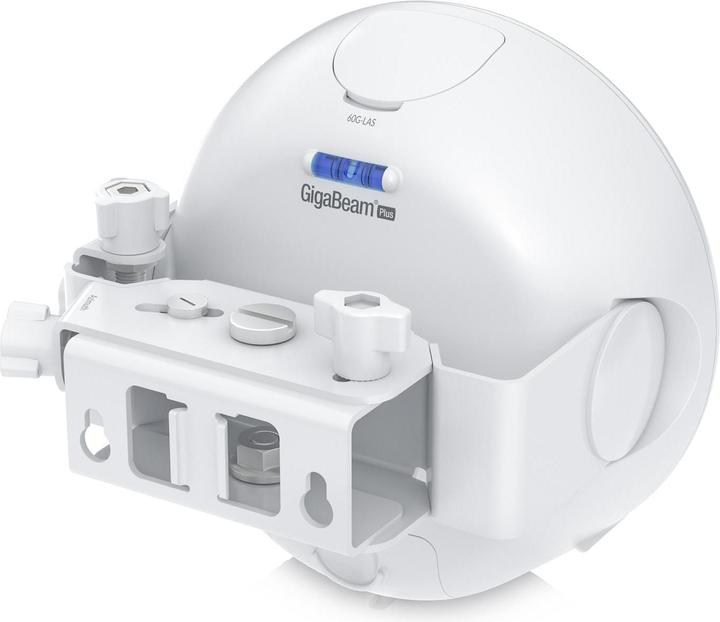

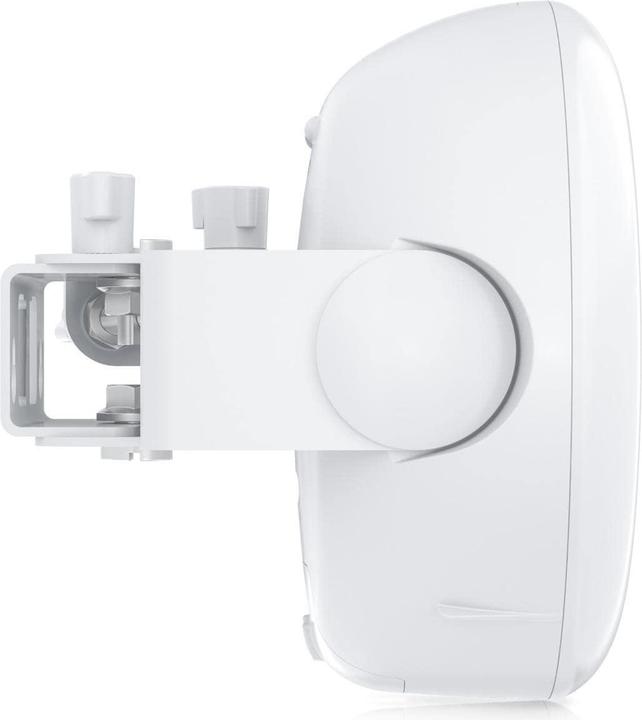

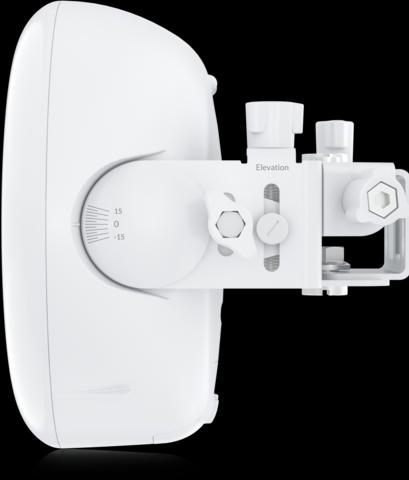

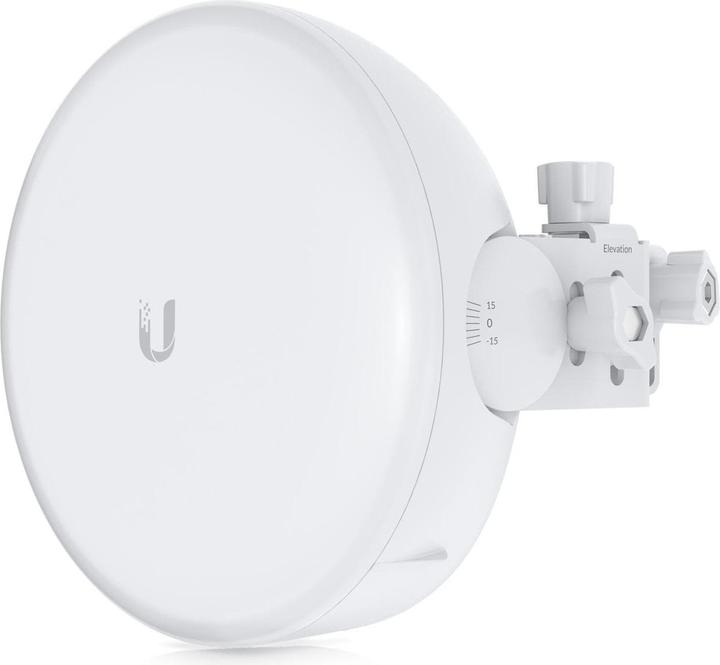

GBE-Plus - airMAX GigaBeam Plus 60 GHz Radio

The airMAX 60 GHz radio system offers True Duplex Gigabit performance. The GBE-Plus is a 60 GHz radio device that supports 1 Gbit/s rates with very low latency. It can be used as a high-throughput backhaul/edge PTP solution in WISP deployments. The GBE-Plus is housed in an industrial outdoor design and achieves significant improvements with an integrated Cassegrain reflector design. Setup, configuration, and management of the GBE-Plus are easily done through the UISP dashboard and the mobile UISP app via Bluetooth.

Mechanical
Dimensions: 155 x 137 mm (6.1 x 5.4")
Weight: 1 kg
Housing materials: UV-resistant polycarbonate, stainless steel
Mounting materials: Metal
Wind load: 50 N at 200 km/h (11.24 lbf at 125 mph)

Hardware
Processor: Quad-Core ARM Cortex A7
Memory: 256 MB DDR3
Network interface: 10/100/1000 Mbit/s Ethernet RJ45
Management interface: Ethernet In-Band; Bluetooth
RF connections: Internal
Max. power consumption: 11 W
Power method: Passive PoE (Pairs 4, 5+; 7, 8-)
Power supply: 24 V DC, 0.5 A Gigabit PoE adapter; 24 V, 1 A for motor accessories
Supported voltage range: 22 to 26 V DC
ESD/EMP protection: Air/Contact: +/-24 kV
Operating temperature: -40°C to 60°C (-40°F to 140°F)
Operating humidity: 5 - 95% non-condensing
Certifications: FCC, IC, CE

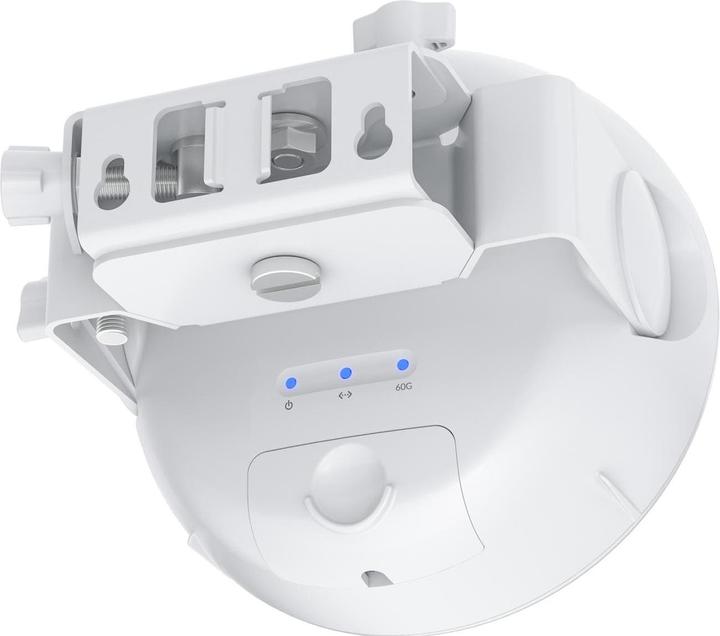

LEDs
Power: White blinking: Bootup in progress; White: Not connected to Ubiquiti Internet Service Provider (UISP); Blue: Connected to UISP
Ethernet: Blue blinking: Ethernet traffic detected
60 GHz: Blue: Active connection

Software
Operating system: airOS
Operating modes: PtP as Access Point or Station
Ubiquiti-specific features: Integrated 60 GHz radio, discovery protocol
Security: WPA2 AES only
Dashboard: Yes
Wi-Fi settings: Yes
Network settings: Yes
System: Yes
Services: UISP, Ping-Watchdog, Web server, SSH server, NTP client, ...
