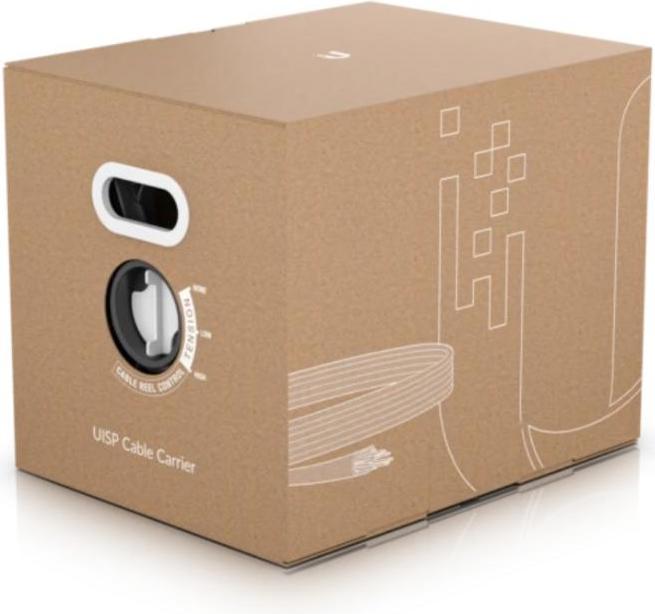

UISP Cable Carrier - Cat. 5e Industrial-Grade Ethernet Cable, 305 m

Note: This is the same cable as the TC-Carrier.

The UISP Cable Carrier is a Category 5e cable that features a multi-layer elemental protection with a primary braided shield and a weather-resistant jacket, preventing damage from rain, snow, and other harsh weather conditions. The cable is also equipped with a grounding wire and an internal foil shielding to protect against electrostatic discharge (ESD). Its cross-talk divider maintains signal integrity and allows the cable to sustain Gigabit Ethernet connection rates even in the presence of electromagnetic interference.

Carton dimensions: 330 x 425 x 340 mm
Carton weight: 16 kg
Cable length: 305 m
Cable color: Black
Cable type: Cat. 5e, shielded
Ethernet support: Up to 1 Gbit/s
Conductor wire gauge: 24 AWG
Conductor: Solid bare copper
Conductor diameter: 0.500 +/- 0.005 mm
Insulation type: Solid polyethylene
Insulation thickness: Average 0.295 mm; Minimum 0.29 mm
Insulation diameter: 1.16 +/- 0.02 mm
Separation (polyester wrapping): Thickness: 0.025 mm; Circumference: 20 mm
Anti-crosstalk divider: LDPE: 4.2 x 0.3 mm
Cable shield (aluminum foil): Thickness: 0.060 mm; Circumference: 20 mm
ESD grounding wire: 0.4 TC
Rip cord: Yes
Secondary cable shielding (braid): 16 x 8 x 0.16 AA Density: 95%
Jacket material: Polyethylene
Jacket thickness: Average 0.52 mm; Minimum 0.46 mm
Jacket outer diameter: 6.8 +/- 0.30 mm
Jacket color: Black
Storage temperature: -30°C to 75°C
Installation temperature: -20°C to 60°C
Operating temperature: -40°C to 80°C
Standards: ANSI/TIA-568-C.2 (2009); ISO/IEC 11801 (Edition 2.2).
