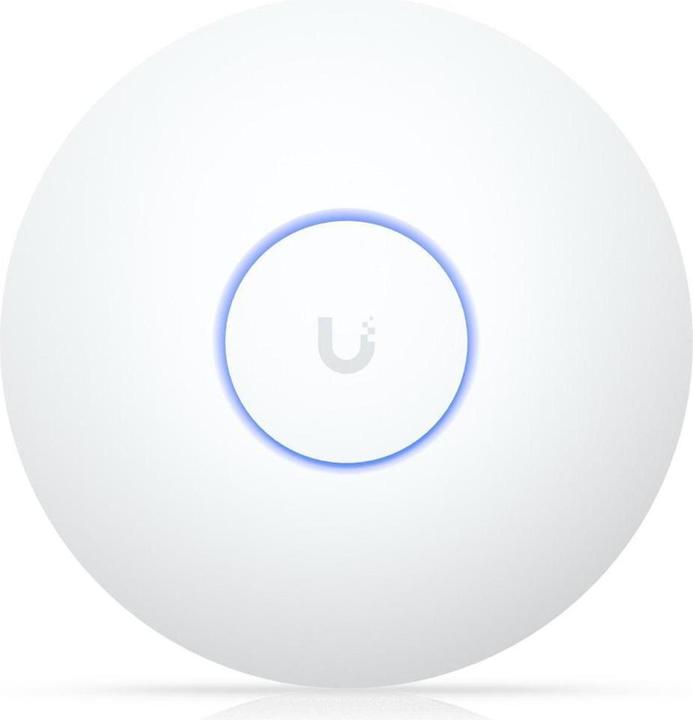

U7 Long-Range - Compact, ceiling-mounted WiFi 7 AP with 5 spatial streams and extended signal range.

Overview

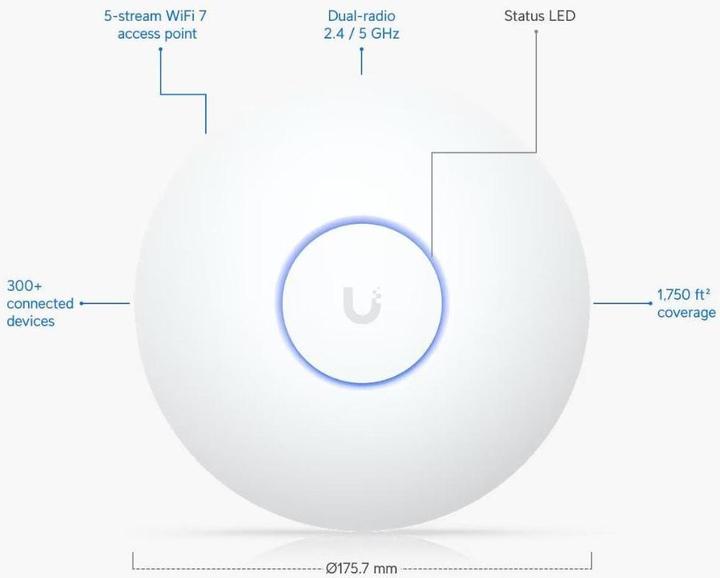

• Dimensions: Ø175.7 x 43 mm
• WiFi Standard: WiFi 7
• Spatial Streams: 5
• Coverage Area: 160 m²
• Max. Number of Clients: 300+
• Uplink: 2.5 GbE

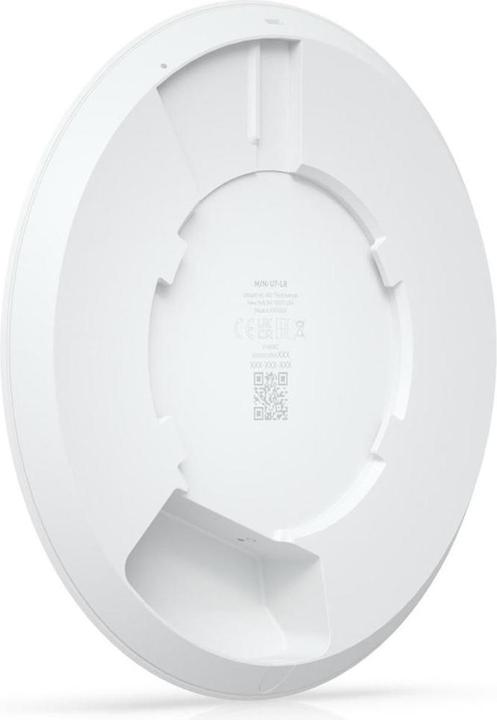

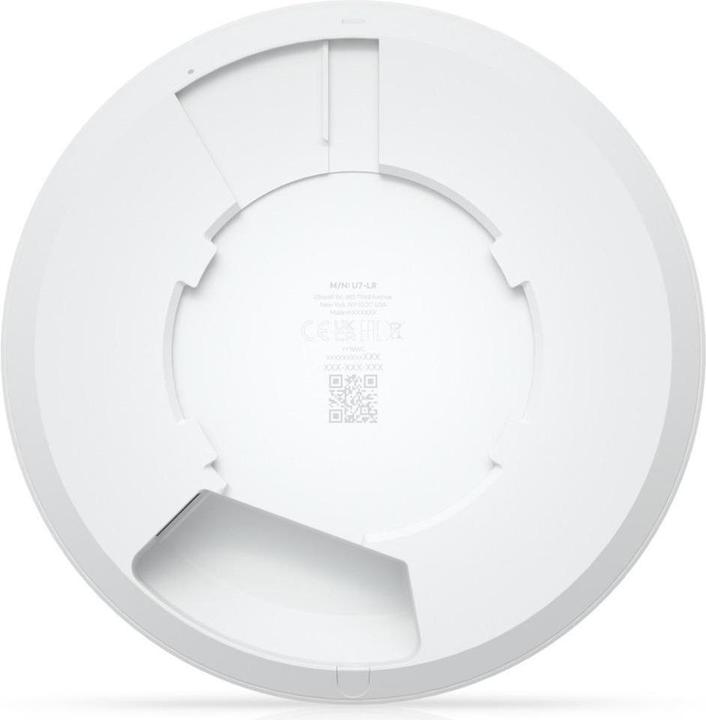

• Mounting: Ceiling, Wall (plastic mounting plate included)
• Power Supply Method: PoE

Performance

• MIMO: 5 GHz 3 x 3 (DL/UL MU-MIMO); 2.4 GHz 2 x 2 (DL/UL MU-MIMO)
• Max. Data Rate: 5 GHz 4.3 Gbps; 2.4 GHz 688 Mbps
• Antenna Gain: 5 GHz 6 dBi; 2.4 GHz 4 dBi
• Max. Transmit Power: 5 GHz 27 dBm; 2.4 GHz 26 dBm
• Supported Data Rates: 802.11be (WiFi 7) 7.3 Mbps to 4.3 Gbps; 802.11ax (WiFi 6) 7.3 Mbps to 3.6 Gbps; 802.11ac (WiFi 5) 6.5 Mbps to 2.6 Gbps; 802.11n 6.5 Mbps to 450 Mbps

Features

• Wireless Meshing: Yes
• Band Steering: Yes
• 802.11v BSS Transition Management: Yes
• 802.11r Fast Roaming: Yes
• 802.11k Radio Resource Management (RRM): Yes
• Advanced Radio Management: Yes
• Passpoint (Hotspot 2.0): Yes
• Captive Hotspot Portal: Custom branding landing page: Yes; Voucher authentication: Yes; Payment-based authentication: Yes; Support for external portal servers: Yes; Password authentication: Yes; Guest network isolation: Yes;
• Private Pre-Shared Key (PPSK): Yes
• WiFi Speed Limiting: Yes
• Client Device Isolation: Yes
• WiFi Scheduling: Yes
• RADIUS over TLS (RadSec): Yes
• Dynamic RADIUS-assigned VLAN: Yes

Hardware

• Max. Power Consumption: 14 W
• Supported Voltage Range: 42.5-57V DC
• Network Interface: (1) 2.5 GbE RJ45 port
• Weight: 448 g
• Management: Ethernet
• Housing Material: Polycarbonate, aluminum alloy
• Mounting Material: Polycarbonate, galvanized steel.
