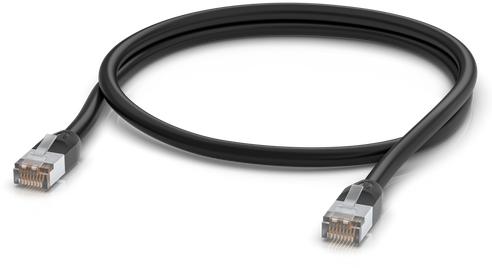

UACC-Cable-Patch-Outdoor-1M-BK - UISP Patch Cable Outdoor, 1 m, black

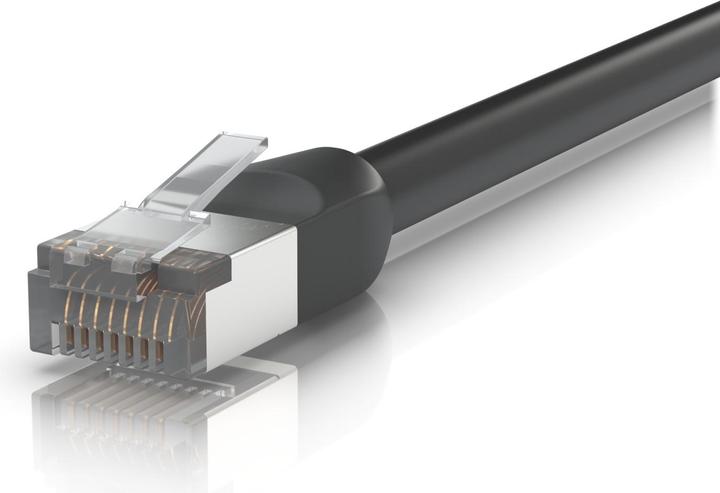

The UISP Patch Cable Outdoor is an all-weather patch cable designed for outdoor UISP deployments that require enhanced protection from the elements. It features a shielded RJ45 plug, internal foil shielding, and a built-in ESD drain wire—all encased in a weatherproof, insulating jacket. The UISP Patch Cable Outdoor is available in multiple lengths (1, 2, 3, 5, and 8 meters) to ensure that you can reach all of your devices.

• Weight: 60 g (2.12 oz)

• Cable length: 1 m (3.28 ft)

• Cable color: Black

• Cable type: Category 5e

• Shielding type: STP

• Flame rating: VW-1 (UL1581)

• Conductor wire gauge: 24 AWG

• Conductor type: Stranded copper

• Jacket material: Thermoplastic elastomer (TPE)

• Jacket diameter: 6 mm (0.24")

• Bend radius: Min. 24 mm (0.94")

• Storage temperature: -30°C to 75°C (-22°F to 167°F)

• Installation temperature: -20°C to 60°C (-4°F to 140°F)

• Operation temperature: -40°C to 80°C (-40°F to 176°F)

• Anti-crosstalk divider: No

• Standards: TIA/EIA-568-B.2, ISO/IEC 11801.
