Best selling Server accessories from Telegärtner
On this page you’ll find a ranking of the best Server accessories from Telegärtner. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Telegärtner RJ jack AMJ-S module Cat.6A
The fully shielded AMJ-S module for 10 Gigabit Ethernet builds on the transmission advantages of Telegärtner's proven connection technology, offering cabling professionals unprecedented possibilities in their daily cabling tasks. Outstanding features of the new AMJ-S module include its slim design in Keystone format (19.3 x 14.7 mm) with a zinc die-cast housing and the tried-and-tested Telegärtner contact over-bending protection. Combined with the integrated fine-tuned cable retention and 360° shield connection, the AMJ-S module is a real time-saver during installation. The IDC cutting terminal in the new AMJ-S module ensures reliable connections for solid and stranded conductors. Another unique aspect of the AMJ-S module is its design compatibility: the AMJ-S module can be easily combined with covers from the switch programs of all major manufacturers.
Performance features:
Cat.6A (ISO/IEC) according to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100, link certification: Class EA (ISO/IEC) according to ISO/IEC 11801, compliant with 10 Gigabit Ethernet (IEEE 802.3an), contact over-bending protection: 750 mating cycles with RJ45/RJ11/RJ12 connectors, suitable for PoE+ according to IEEE 802.3at, design-compatible module holder AMJ-S Up/0 flex combinable with covers from various switch program manufacturers, integrated cable retention for cable diameters up to 9 mm, universal, globally available installation dimensions for cutouts 19.3 x 14.7 mm, visually monitored testing of RJ45 contact heights, AMJ-S DD: with integrated protection against contact damage through automatic disconnection of the plug connection.
Notes: tool-free connection technology, suitable for RJ45/11/12 connectors.
Fire protection class: Not relevant.
Burning dripping: Not relevant.
Smoke development: Not relevant.
Acid development: Not relevant.
Short designation: AMJ-S Module Cat.6A (ISO/IEC) T568B.
Installation dimensions: Z121.
2. Telegärtner Mini Distributor MPD6-HS K Cat.6A
Mini Distributor MPD-HS K Cat. 6 A
The mini distributors of the MPD Cat. 6 A series are available in versions with 6, 8, 12, or 16 RJ45 connection sockets. They are suitable for various applications such as surface mounting, DIN rail mounting, or 3 HE installation. The transmission characteristics are verified by a component certificate Cat. 6 A according to ISO/IEC 11801, issued by an independent external testing laboratory. The RJ45 sockets are designed for at least 750 mating cycles with RJ45/RJ11/RJ12 connectors.
Number of sockets/couplings: 6
Suitable for number of sockets/couplings: 6
Connector type: RJ45 8(8)
Shielded: yes
Category: 6A (IEC)
Connection type: LSA
Color: gray
RAL number: 7035
Mounting type: wall mounting
Depth: 34 mm.
3. Telegärtner Patch panel
Telegärtner 19" Module Carrier 1U Gray AMJ-Mod 24PP/ub Gray
Manufacturer: Telegärtner
Description: 19" Module Carrier 1U Gray 24AMJ/UMJ
Empty Port Type: AMJ-Mod 24PP/ub Gray
Number of Sockets/Couplings: 24
Suitable for Number of Sockets/Couplings: 24
Connector Type: RJ45 8(8)
Shielded: Yes
Connection Type: Other
Number of Rack Units (U): 1
Color: Gray
RAL Number: 7035
Mounting Type: 482.6 mm (19 inch) installation
Telegärtner 19" Module Carrier 1U Gray AMJ-Mod 24PP/ub Gray: Additional Details
For seamless cabling from the floor distributor to the machine, users can rely on components such as Telegärtner's 19" module carriers for a consistent connector technology and connection technique. The 19" module carriers are the right solution for individual design in the distribution area. They are available in gray or black and with or without cable management. Users can opt for pre-loaded variants with our high-performance modules or empty housings. The cutouts in practical Keystone format allow for individual configuration. The loaded variants meet the transmission characteristics according to Cat. 6A as per EN 60603-7-51.
Features: Integrated cable management, potential connection via an included PE cable, front panel printed with port numbering, housing made of steel sheet, powder-coated, for accommodating up to 48 AMJ or UMJ modules.
Notes: 24 Ports
Fire Protection Class: Not relevant
Burning Dripping: Not relevant
Smoke Development: Not relevant
Acid Development: Not relevant
Design: Including cable management and potential connection set, unpopulated
Color: Light Gray RAL 7035
Series: AMJ-SL, AMJ-S, AMJ Cat.8.1 Module, AMJ Module K, AMJ Coupling K, UMJ Module K, UMJ Coupling K
Short Description: 19" Module Carrier 1U
EAN: 4018359307271.
4. Telegärtner FO-PP BAS-V
The FO-PP BAS-V from Telegärtner is a high-quality server accessory specifically designed for permanent installation. This product allows for the connection of breakout and mini-breakout cables as well as TICNET routes. With a 5-stage adjustability feature, it offers flexibility during installation and adaptation to various requirements. The FO-PP BAS-V comes with a removable cover included in the package, ensuring easy handling and maintenance. The couplings are pre-equipped on the back with splice-ready pigtails, which are placed in a splice cassette, facilitating the installation and management of fiber excess lengths. The housing made of torsion-resistant steel sheet provides protection against dust ingress and ensures long-lasting use. The pigtails are certified according to GHMT PVP Level 2, guaranteeing high quality and reliability.
- Expandable front panel with up to 24 mounting positions
- Secure management of fiber excess lengths through pre-installed splice cassette(s)
- Rear cable entry for a maximum of 2x M20 and 2x M25
- Abrasion-resistant surfaces prevent the risk of contamination
- Cable management possible using cable ties, Velcro straps, and cable glands.
5. Telegärtner FO-PP BAS-ECO
The FO-PP BAS-ECO from Telegärtner is a high-quality server accessory specifically designed for fixed installation. This product allows for the connection of breakout and mini-breakout cables as well as pre-assembled TICNET routes. With a maximum capacity of 24 positions, the expandable front panel offers flexibility for various applications. The FO-PP BAS-ECO is made of torsion-resistant, powder-coated steel, providing high stability and durability. The removable cover included ensures easy access and safe handling. Additionally, the closed housing protects against dust ingress, creating a clean and safe environment for cable connections.
- Suitable for fixed installation with secure management of fiber excess lengths and splices through pre-installed splice cassette(s)
- Rear cable entry for up to 2x M20 and 2x M25
- Abrasion-resistant surfaces prevent contamination from metal or zinc abrasion
- Cable retention possible with cable ties, Velcro straps, and cable glands
- Protection against dust ingress through closed housing.
6. Telegärtner FO-PP PRO-T 1U
The FO-PP PRO-T 1U from Telegärtner is a high-quality server accessory designed specifically for connecting breakout and mini-breakout cables, as well as TICNET routes. This product features a telescopic drawer that allows for easy handling and installation. The expandable front panel accommodates up to 24 couplings, ensuring flexible adaptation to various requirements. The versions with pigtails come pre-equipped with splice-ready pigtails and are placed in a splice cassette, further simplifying the installation process. The FO-PP PRO-T 1U is manufactured in Germany and provides a reliable solution for modern network architectures.
- Telescopic drawer for easy handling
- Expandable front panel with up to 24 mounting positions
- Versions with pigtails for simplified installation
- Certified pigtails according to GHMT PVP Level 2 (only OM4 & OS2).
7. Telegärtner Mini Distributor MPD16 AMJ/UMJ TH35/AP
Telegärtner Mini Distributor MPD16 AMJ/UMJ TH35/AP - Surface mount distribution box in alpine white with 16 ports.
Product Type: Surface mount distribution box
Dimensions (Width x Depth x Height): 32.5 cm x 11 cm x 4.35 cm
Color: Alpine white
Number of Ports: 16.

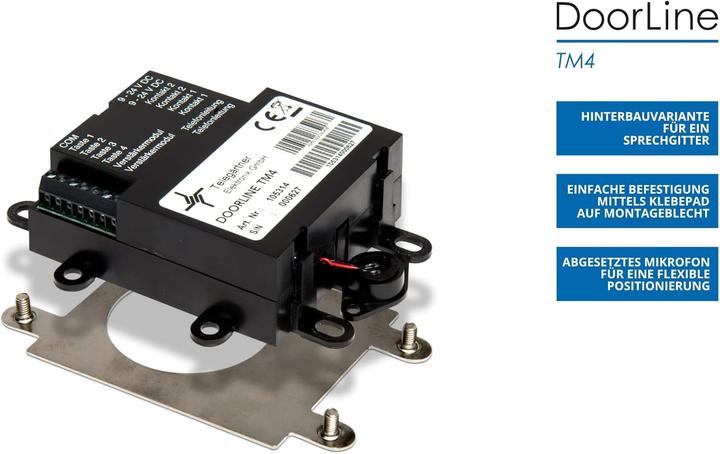

8. Telegärtner DoorLine TM4 door intercom backplane module
The DoorLine TM4 in black is a decentralized door intercom system with an integrated mailbox bell. It allows for connection to a door opener and uses both landline and mobile phones as intercom installations via a 2-wire connection. The system operates without a central unit and offers flexible communication options.
9. Telegärtner FO-PP PRO-T
The FO-PP PRO-T from Telegärtner is a high-quality server accessory specifically designed for connecting breakout and mini-breakout cables as well as TICNET routes. This product features a telescopic drawer system that allows for user-friendly handling. The variants with pigtails come pre-equipped with splice-ready pigtails that are housed in a splice cassette, significantly simplifying installation and maintenance. The front panel is expandable and can accommodate up to 24 loading positions, providing flexible adaptation to various requirements. The FO-PP PRO-T is also available in different variants that are certified according to GHMT PVP Level 2, ensuring high quality and reliability. With a robust housing made of torsion-resistant steel sheet and a well-thought-out cable management system, this product is ideal for professional use in server environments.
- Telescopic drawer extension for easy handling
- Secure management of fiber excess lengths through pre-installed splice cassette(s)
- Expandable front panel with up to 24 loading positions
- Robust housing made of torsion-resistant steel sheet
- Certified pigtail variants according to GHMT PVP Level 2 for high quality.
10. Telegärtner FO-PP PRO-V 1U
The FO-PP PRO-V 1U from Telegärtner is a high-quality server accessory specifically designed for connecting breakout and mini-breakout cables as well as TICNET routes. This product features a pull-out and detachable drawer that allows for flexible handling. With a 5-stage retractability, the drawer can be adjusted to meet individual requirements. The FO-PP PRO-V 1U is equipped with an expandable front panel that accommodates up to 24 loading positions. The housing, made of torsion-resistant powder-coated steel sheet, ensures stability and protection against dust ingress. The integrated cable catch provides neat and secure management of cables and fiber excess lengths, while the pre-installed splice trays ensure easy handling of splices. This product is ideal for professional applications where reliability and efficiency are essential.
- Pull-out and detachable drawer with 5-stage retractability
- Expandable front panel for up to 24 loading positions
- Integrated cable catch for neat cable management
- Housing made of torsion-resistant powder-coated steel sheet
- Protection against dust ingress through closed housing.
