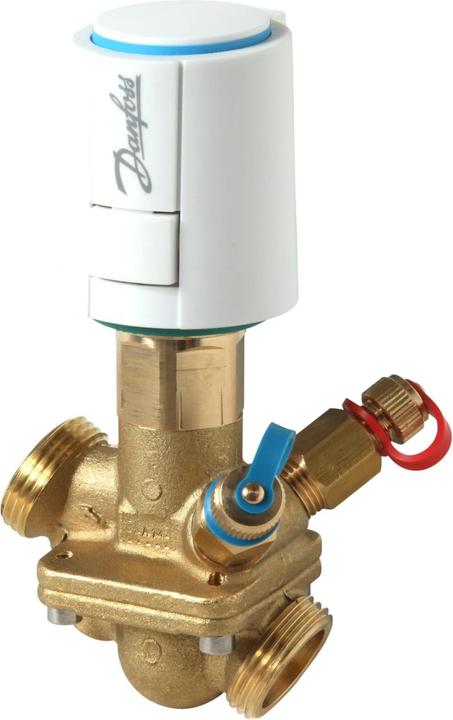

Thermostatic actuator Icon ABN-FBH 24 NC. For heating circuit distributors and radiators. Individual application and control options. Silent opening and closing of the valve. Easy installation thanks to click closure. Can be mounted in any orientation (360°), 1 m cable. Suitable for all valves with a thread size of M30 x 1.5 mm (mounting adapter not included).

Application: The ABN-FBH actuator is designed for optimal control of valves on heating circuit distributors. Control is achieved through a 2-point room temperature controller or via pulse width modulation. The actuator from Danfoss enables comfortable regulation of the room climate by opening and closing the valve on the heating circuit distributor, radiator, or convector as needed.

You can control the actuator as desired in combination with a floor heating actuator (for example, from Homematic IP), directly via a wall thermostat with a switching output, or conventionally through an electromechanical wall thermostat. The actuator, which is closed when not powered, opens or closes the valve silently in about three minutes, with a maximum power consumption of only one watt.

Thanks to the patented sealing process with IP54, the actuator is reliably protected against splashes. This allows it to be installed in any position. Installation is quick and easy with the appropriate VA80 valve adapter, which must be purchased separately if needed. The actuator can then be easily clicked onto the valve. It is compatible with valves from the most common manufacturers such as Heimeier, MNG, Junkers, Honeywell-Braukmann, Oventrop, Comap, Schlösser, and many more that have a thread size of M30 x 1.5 mm.
