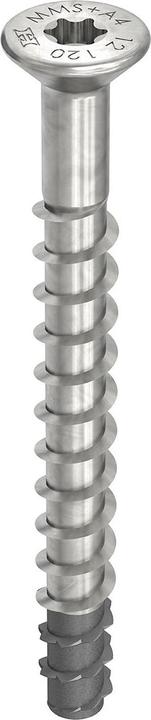

The innovative screw anchor for concrete and masonry in indoor and outdoor areas. The MULTI-MONTI®-plus A4 screw anchor (MMS-plus A4) is an advancement of the MULTI-MONTI® A4 concrete screw. It is screwed directly into a pre-drilled hole without a plug and is immediately load-bearing. The reinforced serration at the screw tip cuts an internal thread into the building material during installation. This creates a form fit, which ultimately secures the anchor. This not only simplifies the installation process but also ensures a high level of application safety for the craftsman. The MULTI-MONTI®-plus A4 concrete screw can be processed close to the edge and without a torque wrench and is completely disassemblable.

Product advantages MMS plus:

• The screw anchor with the highest installation comfort
• Optimized concrete thread for a powerful anchoring
• Up to three setting depths for more flexibility
• Expanded product range for more applications
• Available in stainless steel A4 1.4401, stainless steel 1.4529 / HCR upon request
• Phosphate-coated functional tip for secure undercutting of the concrete
• Approved and monitored product for cracked and uncracked concrete
• European Technical Assessment: ETA 15/0784

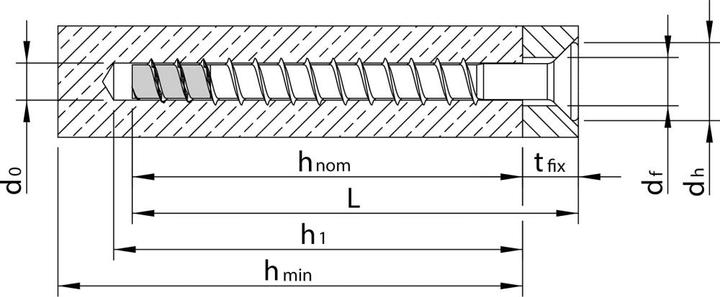

Drill Ø (mm): 6
Drilling depth (mm): 85
L (mm): 125
Form: MMS plus -Fd1 (mm): 7.5
Brand: Heco
Surface: A4
Size (mm): 7.5 x 115
Material: Stainless steel
Max. usable length (mm): 85
Anchoring depth (mm): 75

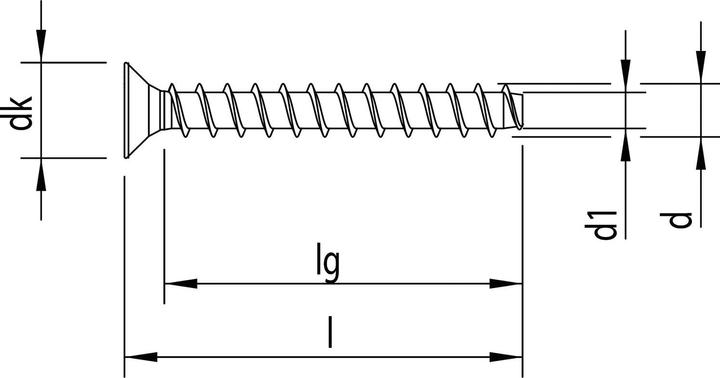

Thread length (mm): 59
Anchoring depth (mm): 40
Head Ø (mm): 13.6
Min. usable length (mm): 50
Drive: TX30
Content (pcs): 50.
