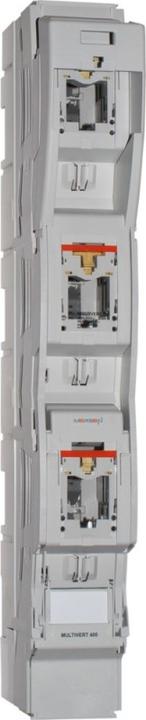

Mersen Fuse Load Switch Bar 1,250,000

Manufacturer: Mersen
Designation: Fuse Load Switch Bar NH Size 2 400A 185mm
Type: 1,250,000
Configured as main switch: no
Configured as safety switch: no
Max. rated operating voltage Ue for AC: 690 V
Rated continuous current Iu: 400 A
Conditional rated short-circuit current Iq: 120 kA
Suitable for fuse inserts: NH2
Number of poles: 3
With fuse monitoring: no
Connection type for main circuit: busbar connection
Cable entry: other
Equipped with connectors: no
Suitable for floor mounting: no
Suitable for front mounting: no
Suitable for busbar assembly: yes
Type of operating element: lid handle
Position of operating element: front
Motor drive optional: no
Integrated motor drive: no
Configured as emergency stop device: no
Protection class (IP), front side: IP20

Mersen Fuse Load Switch Bar 1,250,000: additional details
MULTIVERT NH fuse load switch bars fulfill all functions of an NH fuse load disconnect switch. The design is intended for direct mounting on busbars in a three-pole arrangement. MULTIVERT 400A switch bars can be directly mounted on 185mm busbar systems. MULTIVERT 400A switch bars are designed for NH fuse inserts according to IEC/EN 60269-2, VDE 0636-2, Size 2, 400A. The system is a modular system, allowing for optimal combination of various products. MULTIVERT provides users with a quick and easy installation option as well as high safety during installation and maintenance. All MULTIVERT can be locked or sealed in a closed state with a padlock. This version is delivered with 3 M12 bolts.
