Mersen 1.350.000

630 A
Price in EUR including VAT
Ratings
Delivered between Thu, 6.11. and Thu, 20.11.
free shipping

Product details

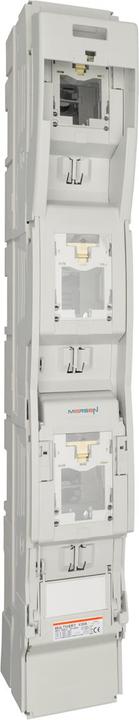

Mersen Fuse Load Switch Rail 1.350.000

Manufacturer: Mersen
Designation: Fuse Load Switch NH Size 3 630A 185mm
Type: 1.350.000
Configured as Main Switch: no
Configured as Safety Switch: no
Max. Rated Operating Voltage Ue for AC: 690 V
Rated Continuous Current Iu: 630 A
Conditional Rated Short-Circuit Current Iq: 80 kA
Suitable for Fuse Inserts: NH3
Number of Poles: 3
With Fuse Monitoring: no
Connection Type Main Circuit: Rail Connection
Cable Entry: Other
Equipped with Connectors: no
Suitable for Floor Mounting: no
Suitable for Front Mounting: no
Suitable for Busbar Assembly: yes
Actuating Element Design: Cover Handle
Position of Actuating Element: Front
Motor Drive Optional: no
Motor Drive Integrated: no
Configured as Emergency Stop Device: no
Protection Class (IP), Front Side: IP20

Mersen Fuse Load Switch Rail 1.350.000: Additional Details
MULTIVERT NH Fuse Load Switch Rails fulfill all functions of an NH Fuse Load Disconnect Switch. The design is intended for direct mounting on busbars in a three-pole arrangement. MULTIVERT 630A switch rails can be directly mounted on 185mm busbar systems. MULTIVERT 630A switch rails are designed for NH fuse inserts according to IEC/EN 60269-2, VDE 0636-2, Size 3, 630A. The system is a modular system, allowing for optimal combination of various products. MULTIVERT provides users with a quick and easy installation option as well as high safety during installation and maintenance. All MULTIVERT can be locked or sealed in a closed state with a padlock. This version is delivered with 3 M12 bolts.

Key specifications

Item number
34948826

General information

Manufacturer
Mersen
Category
Fuses
Manufacturer no.
N1002191
Release date
17.5.2023

Backup Features

Fuse type
NH-DIN fuse
Tripping characteristic
Lazy
Nominal current
630 A
Nominal voltage
690 V
voltage type
AC

Origin

Country of origin
Czech Republic, Hungary

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Items per sales unit
1 pcs.
