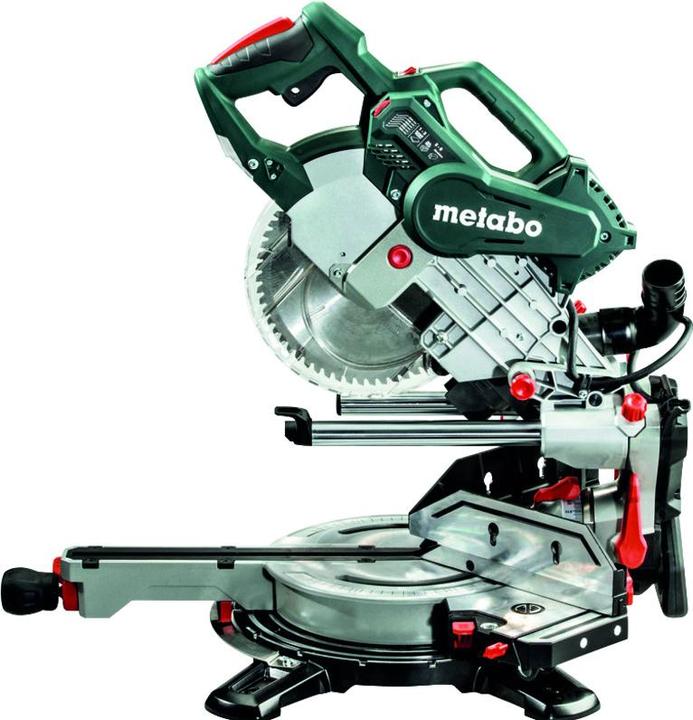

Metabo KGSV72 Xact SYM crosscut saw
Product details

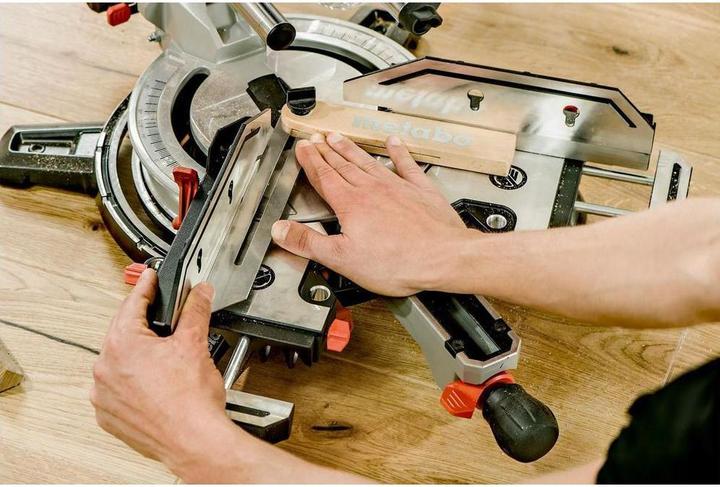

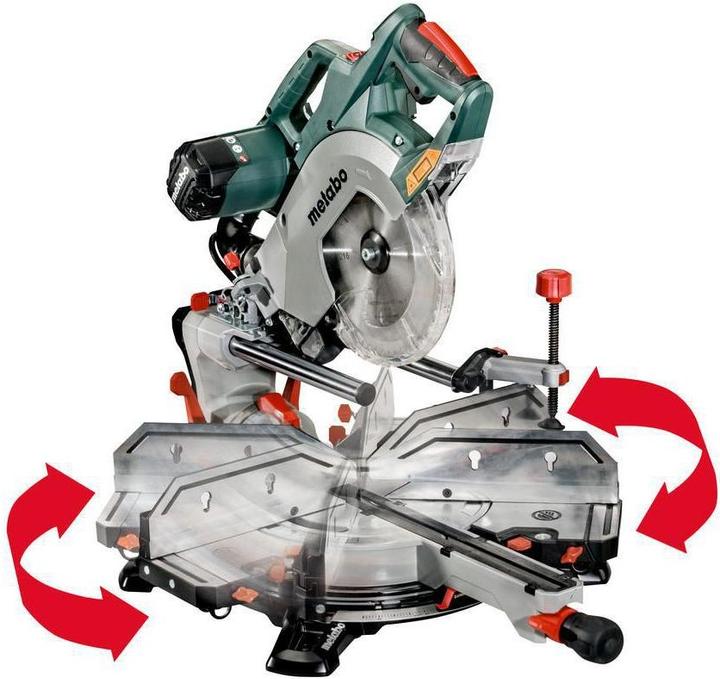

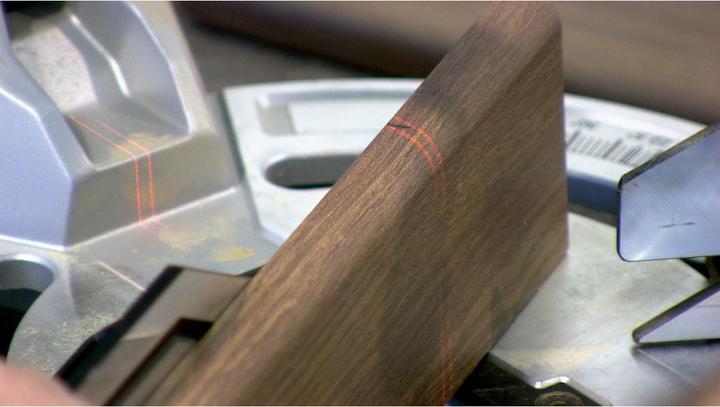

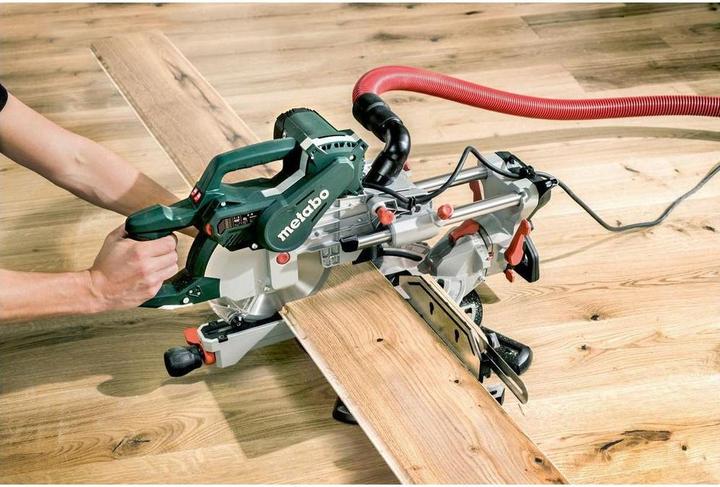

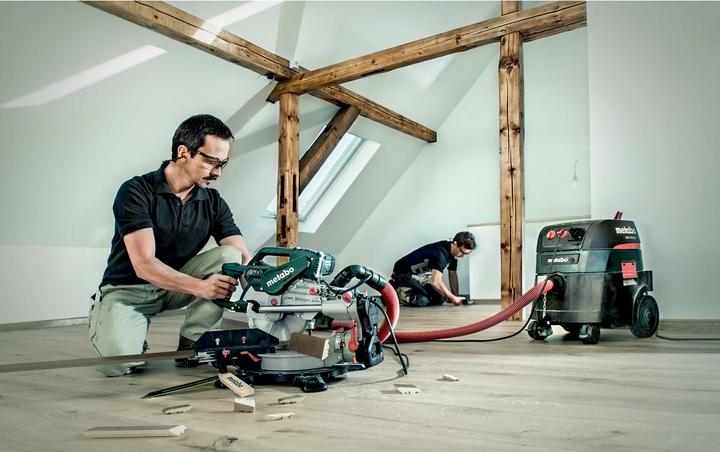

Unique, patented combination of a panel saw with a pull function and a precise moulding saw with a symmetrically adjustable stop system. Time-saving and precise sawing of miters without calculating and measuring due to simple angle transfer from bevel to stop system. Compact pull function for wide workpieces up to 305 mm: no space required behind the saw. Maximum flexibility when sawing thanks to a table that can be rotated on both sides and a saw head that can be tilted on both sides. Double line laser for exact display of the cutting line to the left and right of the saw blade. Speed control for an extended range of applications, e.g., for sawing aluminum profiles and plastics. With a multi-cut saw blade (flat/trapezoidal tooth) for high cutting quality and long service life, e.g., in laminate and aluminum profiles. Compact lightweight with ergonomic carrying handles, ideal for mobile use. Effective chip extraction via integrated chip collection funnel. Fast and precise adjustment of common angles via detent points. Bright LED work light to illuminate the interface (mains-operated, no batteries required). High, side-sliding fences for safe sawing. Depth stop for easy production of grooves. Easy saw blade change due to spindle lock; no disassembly of the pendulum protection hood required.
Nominal diameter | 216 mm |
Max. depth of cut at 90° | 72 mm |
Mains voltage | 230 V |
Power | 1800 W |
Item number | 12265175 |
Manufacturer | Metabo |
Category | Chop saw + mitre saw |
Manufacturer no. | 612216180 |
Release date | 16.5.2019 |
External links |
Colour | Black, Green, Grey |
Exact colour description | Black |
Suitable for | Wood |
Max. tilt adjustment | 50° |
Tool holder | Spindle lock |
Mounting hole | 305 mm |
Nominal diameter | 216 mm |
Number of teeth | 60 |
Max. depth of cut at 90° | 72 mm |
Max. Depth of cut at 45 | 42 mm |
Power supply | Electrical connection |
Battery equipment | No batteries supplied |
Charger equipment | No charger supplied |
Mains voltage | 230 V |
Cable length | 3 m |
Power | 1800 W |
Max. Idle speed | 6300 rpm |
Max. noise level | 84 dB |
Sound power level (LWA) | 97 dB |
Sound pressure level (LpA) | 84 dB |
Country of origin | China |
CO₂-Emission | |
Climate contribution |
Scope of delivery | 2 integrated table extensions, Angle bevel, Cable rewind, Carbide saw blade (60 teeth), Material clamp, Tool for changing the saw blade |
Length | 6600 mm |
Width | 540 mm |
Height | 415 mm |
Weight | 18.30 kg |
Length | 63 cm |
Width | 49 cm |
Height | 49 cm |
Weight | 24 kg |
