Name: AC servo, SH3, 70 mm, 1.4 nm, smooth shaft IP54/IP65, singleturn 128 P/U, 2x M23 SH30701P01A2000
Brand: Schneider
SKU: 41013223
Price: 1395.01 EUR
Availability: InStock

productDetailPageQuery

Schneider

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to the winding technology, it offers a higher power density in a compact design. This servo has a nominal continuous stall torque of 1.4 Nm and achieves a peak torque of 3.5 Nm. Its nominal speed can reach up to 7200 RPM, depending on the supply voltage. The voltage-dependent nominal power can go up to 950 W. The built-in encoder is a single-turn type with 128 periods/revolution (128x1024) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange for mounting has a diameter of 70 mm. The drive shaft has a diameter of 11 mm. The shaft end is smooth and meets the protection class IP54. The motor housing complies with protection class IP65. There is no holding brake present. For operating the synchronous motor, the servodrives from the Lexium series Lexium 52 and Lexium 62 are recommended.

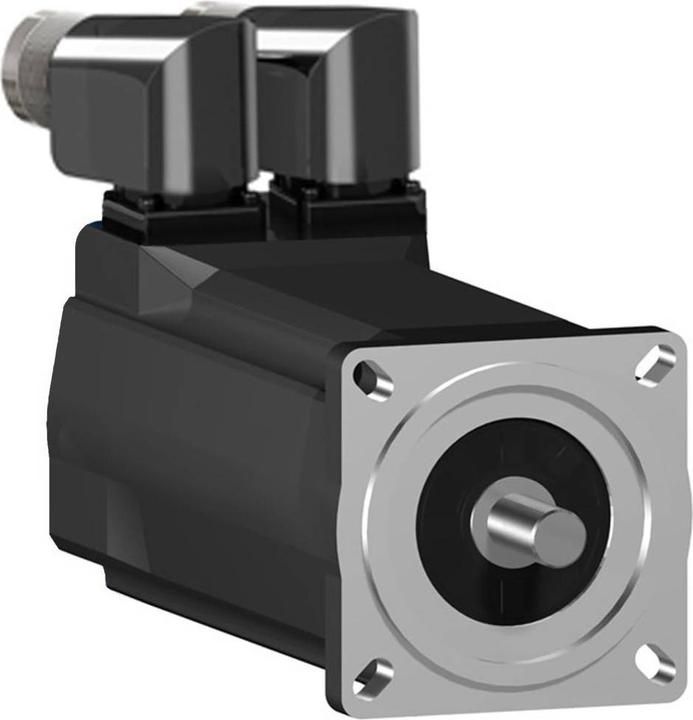

Actual product image Schneider AC servo, SH3, 70 mm, 1.4 nm, smooth shaft IP54/IP65, singleturn 128 P/U, 2x M23 SH30701P01A2000

Key specifications

Servo Technology

moment of force

Additionally required (not included)

For the operation of the product required, but not included.
