Name: AC servo, SH3, 70 mm, 3.1 nm, smooth shaft IP54/IP65, multiturn 128 P/U, 2x M23, brake SH30703P02F2
Brand: Schneider
SKU: 41013268
Price: 3512 EUR
Availability: InStock

productDetailPageQuery

Schneider

Lexium SH3 Servomotor. This SH3 series of AC servomotors features a low rotor inertia, enabling high acceleration capabilities for dynamic applications. Thanks to its winding technology, it achieves a higher power density in a compact design. This servo has a nominal continuous stall torque of 3.1 Nm and reaches a peak torque of 11.3 Nm. Its rated speed can go up to 7200 rpm, depending on the supply voltage. The voltage-dependent rated power can reach up to 1550 W. The built-in encoder is a multiturn type with 128 pulses per revolution (128x1024x4096) in SinCos Hiperface format. The electrical connection is made via 2x M23 connectors, which are angled at 90° and rotatable. The motor flange for mounting is 70 mm. The drive shaft has a diameter of 14 mm. The shaft end is smooth and meets the protection class IP54. The motor housing meets the protection class IP65. An integrated holding brake is included. For operating the synchronous motor, the Lexium series servo amplifiers Lexium 52 and Lexium 62 are recommended.

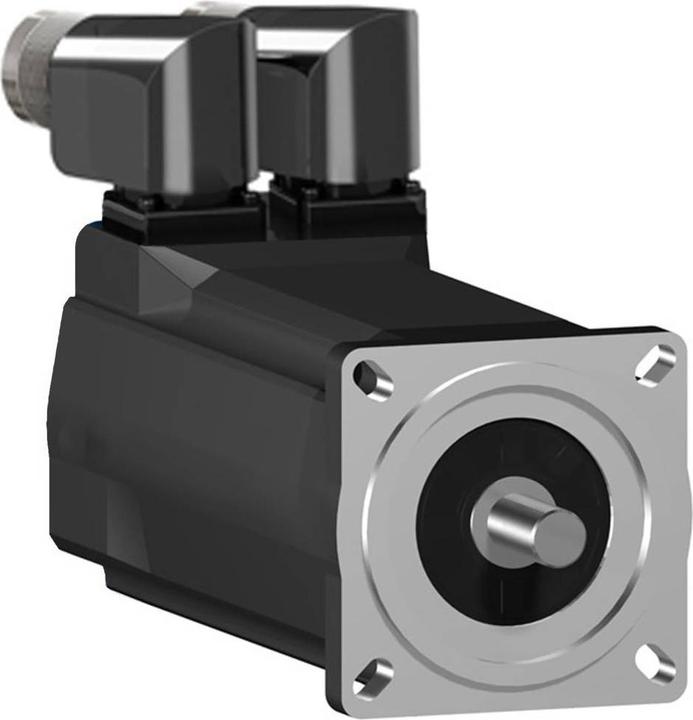

Actual product image Schneider AC servo, SH3, 70 mm, 3.1 nm, smooth shaft IP54/IP65, multiturn 128 P/U, 2x M23, brake SH30703P02F2

Key specifications

servotype

moment of force

Engine type

Additionally required (not included)

For the operation of the product required, but not included.

Servo amplifiers from the Lexium series Lexium 52 & Lexium 62
