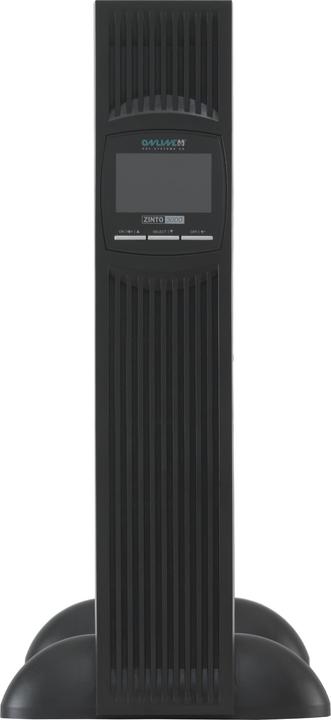

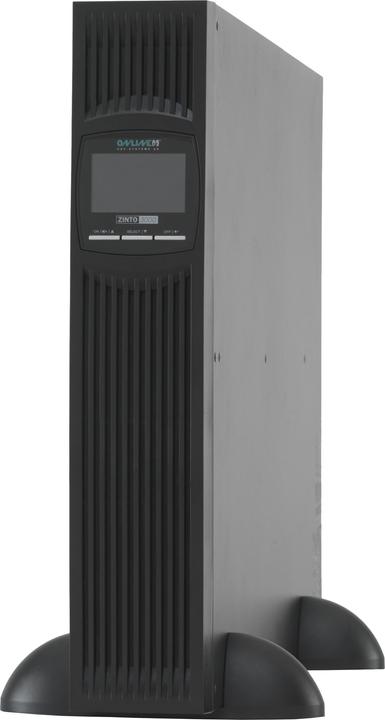

Online USV Zinto 3000, 3000VA/2700W

3000 VA, 2700 W, Line-interactive UPS
Price in EUR including VAT
Delivered between Tue, 1.7. and Wed, 2.7.
6 items in stock at supplier
free shipping

Product details

Zinto is the entry point into the UPS professional league. It protects servers, sensitive IT, and demanding industrial applications from power outages, data loss, and costly operational downtime.

The standout innovation of Zinto is its groundbreaking Dynamic Power Technology (DPT). It adjusts the output power of the UPS system to its loads by increasing the active power (watts) to up to 90% of the UPS rated value. This allows the active power in watts to nearly match the rated value of the UPS system in VA.

Another innovation is the silent operation. Under normal conditions, all Zinto models operate without fans and thus silently – up to 3000 VA. The Buck-&-Boost function of Zinto is another highly valued feature. Short voltage fluctuations are compensated electronically and without a battery. This extends the battery's lifespan and reduces ongoing costs.

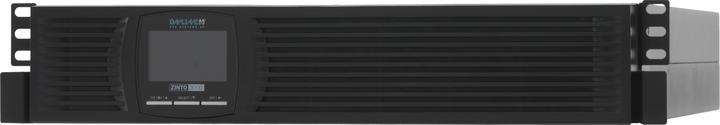

All models are now available as a rack-tower combination system with only 2 height units (HE).

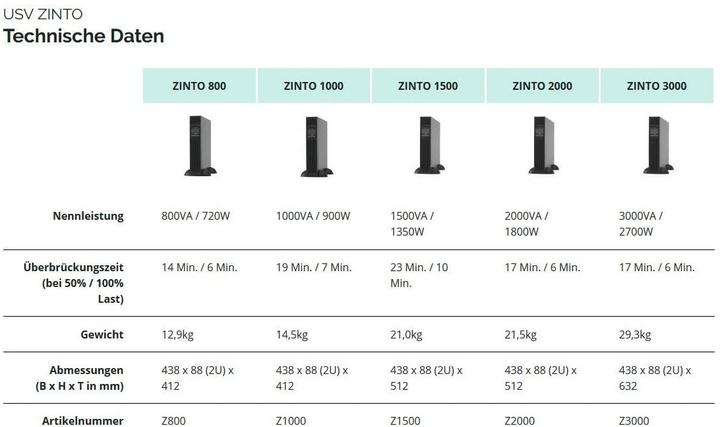

  • 800 – 3,000 VA in a flexible rack-tower combination model, only 2 HE
  • Dynamic Power Technology for more watts
  • Silent normal operation in all models
  • Buck-&-Boost function for battery-free voltage regulation
  • Perfect sine wave output voltage
  • Hot-swap battery
  • Battery deep discharge protection
  • Cold start function: starting the UPS system without input voltage
  • Switchable output sockets: extending the backup time for critical loads
  • RS232 and USB interface
  • Surge protection for data and telephone lines
  • Emergency stop interface
  • Slot for optional SNMP adapter or AS400/relay card
  • Includes shutdown, management, and monitoring software DataWatch for all operating systems (Windows, Linux, Unix, Mac, etc.)
  • 2-year warranty including battery and free 24-hour advance replacement.

Key specifications

Operating time at full load
6 min
Model
Desktop
Scope of application
Server room
Plug type
C14
Item number
6374399

General information

Manufacturer
Online USV
Category
UPS
Manufacturer no.
Z3000
Release date
26.6.2017
Sales rank in Category UPS
46 of 1721
External links

UPS properties

UPS type
Line-interactive UPS
Power output
2700 W
Output power capacity
3000 VA
Model
Desktop
Rack Unit
2U
shaft type
Sine wave

UPS functions

UPS protection functions
Overvoltage protectionUndervoltage protection

Application range

Scope of application
Server room

Connector plug

Plug type
C14

Connections

Connections
RS-232USB 2.0
USB ports
USB-C
Network connections
RJ45 (2x)
Data ports
RS-232 (1x)

Mains supply properties

input voltage
176 - 274 V
output voltage
208 - 240 V
Max. input current
17.60 A
Input frequency
50 - 60 Hz
Output frequency
50 - 60 Hz
Efficiency full load
97 %
Efficiency battery operation
97 %

Operating conditions

Maximum operating temperature
40 °C
Operating temperature
0 - 40 °C
Operating humidity
0 - 90%
Max. noise level
45 dB
Protection type (IP code)
IP20

Battery properties

Battery category
Industry battery
Battery
Rechargeable battery
Battery type
Lead–acid battery
Battery size
Device specific
Number of cells
6 x
Voltage
72 V
Capacity
9 Ah
Charging time
6 h
Operating time at full load
6 min
Operating time at half load
17 min

Voluntary climate contribution

CO₂-Emission
Climate contribution

Scope of delivery

Scope of delivery
2x 19" mounting brackets (left and right)Input cableLoad cableQuick installation guideUSB cableZINTO 3000
Items per sales unit
1 x

Product dimensions

Height
88 mm
Weight
29.30 kg
Width
438 mm
Length
632 mm

Package dimensions

Length
76 cm
Width
61 cm
Height
20 cm
Weight
33.40 kg
