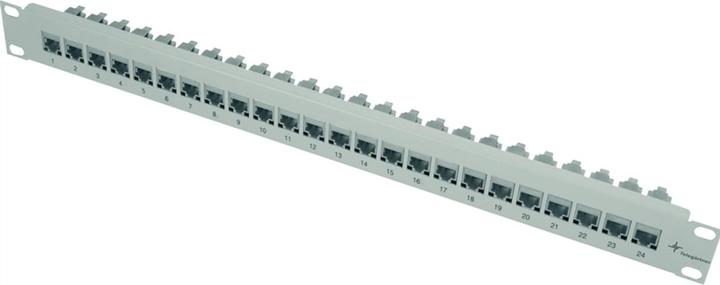

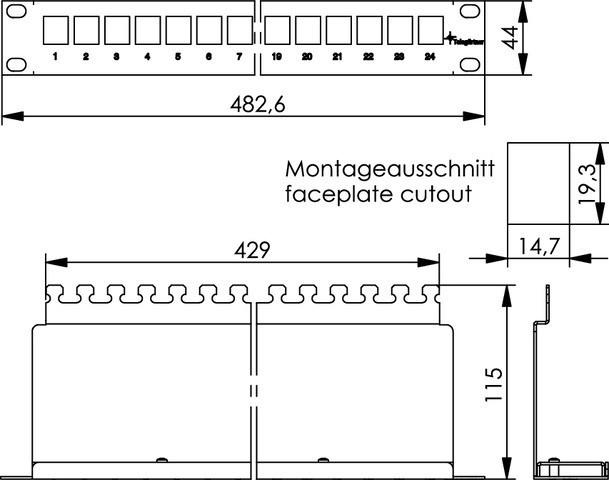

For a continuous wiring solution from the floor distributor to the machine, users can rely on components such as the 19" modular frames from Telegärtner, which utilize a consistent connector and connection technology. The 19" modular frames are the ideal solution for customized configurations in the distribution area. They are available in gray or black and with or without cable management. Users can choose from pre-assembled variants or empty housings with our high-performance modules. The cutouts in the practical Keystone format allow for individual assembly. The assembled variants meet the transmission characteristics according to Cat. 6A as per EN 60603-7-51.

Features: integrated cable management, potential connection via an included PE wire, front panel printed with port numbering, steel sheet housing, powder-coated, Cat.6A (ISO/IEC) according to IEC 60603-7-51, Cat.6A (ISO/IEC) re-embedded tested according to IEC 60512-27-100, link certification: Class EA (ISO/IEC) according to ISO/IEC 11801, 10 Gigabit Ethernet compliant (IEEE 802.3an), contact over-bending protection: 750 mating cycles with RJ45/RJ11/RJ12 connectors, suitable for PoE+ according to IEEE 802.3at, optically monitored testing of RJ45 contact heights, equipped with AMJ Module K.

Notes: tool-free connection technology, suitable for RJ45/11/12 connectors. Fire protection class: not relevant. Burning drips: not relevant. Smoke development: not relevant. Acid development: not relevant. Version: includes 24 AMJ Modules K Cat.6A (ISO/IEC) T568B, cable management, and potential connection set. Color: black. Short designation: 19" modular frame 1 HE.
