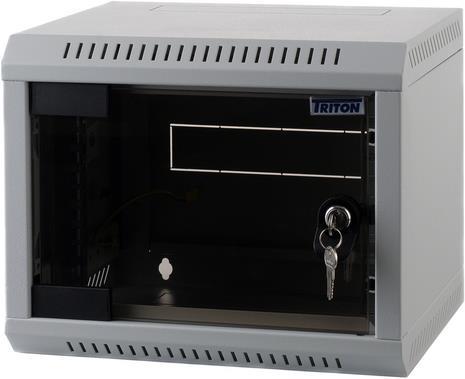

Triton 10" 4HE Wall Mount Enclosure RBA-10 300mm, Gray Glass Door

Enclosure for small home connection networks (SOHO), IP30, load capacity 20 kg. An ideal solution for the installation of 10" components. The enclosure is often used in small project implementations, such as home networks or networks for smaller companies (SOHO). It serves as a popular addition to classic 19" enclosures.

• 10" wall mount enclosure with protection class IP30
• The enclosure is mounted directly to the wall.
• The enclosure includes two adjustable vertical mounting rails.
• Enclosure construction:
• compact welded construction
• Full glass door made of 4 mm thick safety glass. A full metal or perforated door is also available.
• The permissible load capacity of each door is max. 10 kg.
• The minimum coating thickness is 65 µm.
• The enclosures are designed for the installation of data and telecommunications systems and their distribution systems.
• The enclosure frame and all removable parts (side and rear panels, doors, etc.) are connected with grounding cables, which must be properly secured and plugged in throughout the entire service life of the cabinet.
• An M5 screw is located in the side wall of the enclosure as the main grounding point.
• Cable entries with break-out covers are located at the top and bottom of the rear panel of the enclosure, as well as one additional entry each in the roof and floor.
