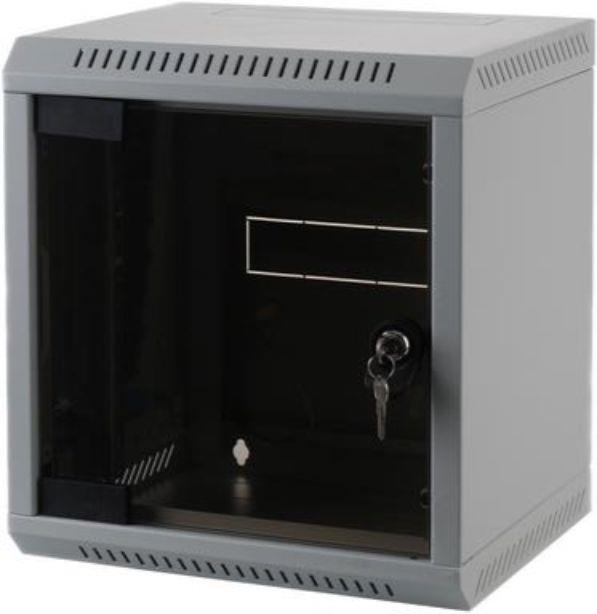

Triton 10" 6HE Wall Mount Distribution Cabinet RBA-10 300mm, Gray Glass Door

Enclosure for small home connection networks (SOHO), IP30, load capacity 20 kg.

Ideal solution for the installation of 10" components. The enclosure is often used in small projects, such as home networks or networks for smaller companies (SOHO). It serves as a popular addition to classic 19" distribution cabinets.

• 10" wall-mounted distribution cabinet with IP30 protection rating
• The enclosure is mounted directly to the wall.
• The cabinet includes two adjustable vertical mounting rails.
• Distribution cabinet construction:
• compact welded construction
• Full glass door made of 4 mm thick safety glass. A full metal or perforated door is also possible.
• The permissible load capacity of each door is a maximum of 10 kg.
• The minimum coating thickness is 65 µm.
• The enclosures are designed for the installation of data and telecommunications systems and their distribution systems.
• The distribution frame and all removable parts (side and rear panels, doors, etc.) are connected with grounding cables that must be properly secured and plugged in throughout the entire service life of the cabinet.
• An M5 screw is located in the side panel of the cabinet as the main grounding point.
• Cable entry points with break-out covers are located at the top and bottom of the rear panel of the enclosure, as well as one additional entry point in the roof and floor.
