Best selling Network accessories from Metz Connect
On this page you’ll find a ranking of the best Network accessories from Metz Connect. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Metz Connect Module flush-mounted housing with hinged cover and lock
With two keys and a keyed alike lock (same locks and keys). The housing cover can be sealed, tested for IP protection classes without outgoing components. The protection class may vary depending on the connection of components. Module installation cutout: Keystone, accommodating two individual modules of your choice (RJ45, LWL-LC, LWL-ST, COAX) available as accessories. The hinged cover closes completely, even with plugged-in patch cables. The hinged cover can be locked in the open position. Housing made of UV weather-resistant and impact-resistant thermoplastic plastic PC/ASA. With a clearly visible labeling field, color: gray (RAL 7035). Cable glands available as accessories. Delivery does not include modules.

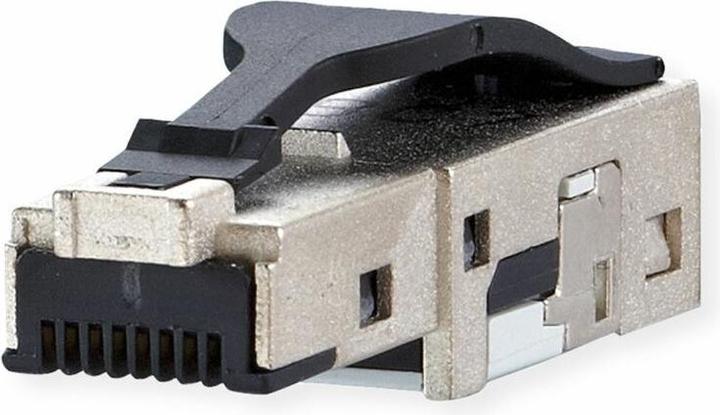

2. Metz Connect 1401400812-E E-DAT Industry RJ45 field plug insert Cat.6 Class EA with
The E-DAT Industry RJ45 Field Plug Insert Cat.6 Class EA from Metz Connect is a high-quality solution for network cabling. This field-terminable RJ45 connector meets the requirements of Class E and A according to ISO/IEC 11801 and DIN EN 50173-1, making it ideal for applications with 10 GBit Ethernet (IEEE 802.3an). The connector is suitable for various cable types, including AWG 22, and offers easy termination without the need for special tools. The industrial zinc die-cast housing ensures durability and reliability in demanding environments. With the ability to connect both stranded and solid conductors, this connector is versatile and also supports Remote Powering (PoE, PoE Plus, UPoE, and 4PPoE) as well as HDBaseT. Its user-friendly design and robust construction make it an excellent choice for professional network installations.
- Field-terminable RJ45 connector for easy installation without special tools
- Suitable for 10 GBit Ethernet and Remote Powering (PoE)
- Industrial-grade zinc die-cast housing for high robustness
- Compatible with AWG 22 and connection options for AWG 26/7 - 22/7
- Compliance with standards ISO/IEC 11801 and DIN EN 50173-1.
Network accessories
Quantity discount
EUR10,84 per piece for 4 units
Metz Connect 1401400812-E E-DAT Industry RJ45 field plug insert Cat.6 Class EA with
Network cable plug
3. Metz Connect 130910-I
Modular connection box Cat.6A, RJ45 suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, UPoE, and 4PPoE) as well as HDBaseT. The module housing is made of refined zinc die-cast and can be installed without special tools.
Network accessories
Quantity discount
EUR7,94 per piece for 4 units
Metz Connect 130910-I
Network Accessories
4. Metz Connect Keystone RJ45 installation module CAT 6a
Modular connection unit Cat.6A, RJ45. Cat.6A component testing according to ISO/IEC 11801-1, DIN EN 50173-1, TIA/EIA-568, and IEC 60603-7-51, GHMT certified. Class EA compliance tested according to ISO/IEC 11801-1, DIN EN 50173-1: Link up to 500 MHz. Suitable for 10 GBit Ethernet (IEEE 802.3an), remote powering (PoE, PoE plus, and UPoE), and HDBaseT.
Easy-to-install connection of the 2- to 4-pair data cable AWG 26/1 - 22/1 (solid) and stranded conductor with 7-wire copper wire AWG 26/7 - 22/7 (stranded) to IDC cutting terminals. Marking of the wire assignment T568A and T568B. Easy and fast insertion of the wire pairs into the E-DAT module loading piece. Module housing made of zinc die-cast, finished. Mounting possible without special tools. Strain relief with cable tie at the module. Mounting type: Keystone. Cable feed 180°.
Network accessories
Quantity discount
EUR7,70 per piece for 4 units
Metz Connect Keystone RJ45 installation module CAT 6a
Keystone module
5. Metz Connect Keystone module CAT 6A
The tool-free module from BTR is suitable for the installation of Keystone components. Strain relief is provided via a snap clip directly on the load piece. It allows for easy connection of data cables AWG 24/1 - 22/1 (solid) and AWG 26/7 to 22/7 (stranded) to IDC punch-down terminals.
Network accessories
Quantity discount
EUR6,61 per piece for 4 units
Metz Connect Keystone module CAT 6A
Keystone module
6. Metz Connect EDAT module CAT 6A
The clip-free module from BTR is ideally suited for use in BTR components. Strain relief is provided via a snap clip directly on the load piece. It allows for easy connection of data lines AWG 24/1 - 22/1 (solid) and AWG 26/7 to 22/7 (stranded) to IDC cutting terminals.
Network accessories
Quantity discount
EUR6,64 per piece for 4 units
Metz Connect EDAT module CAT 6A
Network Accessories

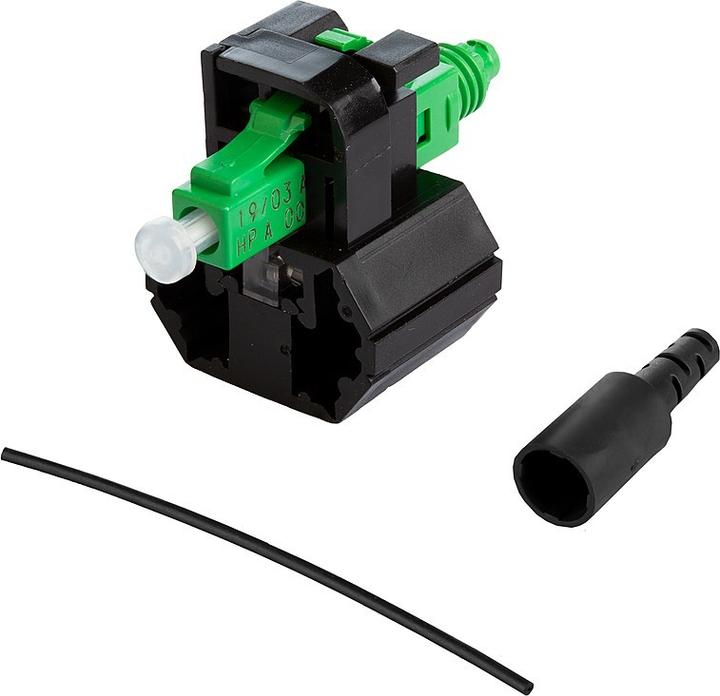

7. Metz Connect OPDAT Fast Hybrid connector assembly.(PU 10)LC APC OS2 f. Cores
Metz Connect LWL-St.LCAPCOS2 A 0.25+0.9
Type: 1509QAJA0010-E(VE10)
Design: Plug
Suitable for fiber type: Singlemode
Connector type: LC
APC version: yes
Connection type: Terminals
Material of ferrule: Ceramic
Color: green
Fiber class: OS2
Field-installable fiber optic connector for singlemode technology. With hybrid technology: refractive index gel plus opto-elast guarantees very good and consistent optical values. No polishing, no gluing during on-site assembly. Simple, easy-to-learn, fast, and cost-effective installation in less than two minutes. Available with LC and SC connector types for singlemode (UPC and APC polish). Connector kits for fiber with Ø 0.25 and Ø 0.9 mm. Connector kits for fiber optic cables with Ø 2.0 and Ø 3.0 mm. The connector can be assembled up to three times. Each connector has a serial number, ensuring traceability at all times. Depending on the variant, a maintenance-free cleaver is included in the delivery. It provides an angled cut, achieving high return loss values. The cleaver can be used up to 200 times. A cable assembly kit for easy cable installation, a fiber guide for easy insertion of the fiber into the connector.
Applications: for FTTH and FITH connections, field repairs, in hard-to-reach or spatially restricted areas, and for direct mounting on components. Variants for fibers: 10 pieces without tools / 20 or 100 pieces with cleaver and fiber guide. Variants for cables: 10 pieces without tools / 20 or 100 pieces with cleaver, cable assembly kit, and fiber guide.
EAN: 4251394625447.
Network accessories
−14%
EUR165,52 was EUR191,54
Metz Connect OPDAT Fast Hybrid connector assembly.(PU 10)LC APC OS2 f. Cores
Plug grommet
8. Metz Connect BTR E-DATmodul 24x8 CAT6 1HE
The BTR patch panel accommodates up to 24 E-DAT modules, which are included in the delivery. The patch panel is ideally suited for installation in 48.26 cm (19-inch) network cabinets. Notably, the retrofitting of modules is particularly convenient, as the individual modules can be mounted from the front through the supporting frame. The perfect cable management and strain relief are ensured by the appropriate holder on the supporting frame.
Product description: Metz Connect BTR E-DAT Module 24x8 - Patch Panel - Light Grey, RAL 7035 - 1U - 24 Ports
Product type: Network patch panel
Manufacturer: BTR
Manufacturer No.: 130920-E
Transmission rate: 10 Gbit/s
Specification: CAT 6A
Rack units: 1 HE
Version: Loaded
Connection technology: E-DAT module
Connections: 24 LAN ports.
9. Metz Connect OpDAT fibre optic connection unit 150C049HK00A0E
Compact fiber optic connection unit for surface mounting on flush-mounted or hollow wall boxes. The unit comes pre-assembled and ready for installation with single-mode internal cable and is equipped with couplings, including laser protection for connecting up to four fiber optic patch cables. The second side of the cable is open for insertion, pulling, or blowing into empty conduits. It is suitable for splicing or for the installation of field-assemblable fiber optic connectors OpDAT FAST Hybrid. The cable is conveniently wound on a cardboard reel. Two cable types are available: Mini-breakout cable Compact, white, 4.5 mm and FITH cable, white, 2.3 mm, single-mode fiber OS2, E9125 m, bend insensitive according to ITU-T G.657.A, compatible with G.652.D. Mounting materials are included in the delivery. The color of the unit is pure white, similar to RAL 9010. Cable lengths are available up to 100 m in increments. Replace XX in the article number with the length, e.g., 05=5 m, A0=100 m. All available variants can be created through the VADT configurator.
10. Metz Connect OpDAT fibre optic starter set WKZ set + 20x FAST connectors for LC APC wire
The LWL starter set from METZ CONNECT includes the essential tools for preparing fiber optics and fiber optic cables. All tools are compactly housed in a tool bag. Additionally, you will receive a mounting pad and a connector set for our field-assemblable fiber optic connector OpDAT FASTTM Hybrid. This equips you well for splicing work or connector assembly in the field.
Network accessories
EUR582,21
Metz Connect OpDAT fibre optic starter set WKZ set + 20x FAST connectors for LC APC wire
Tool
