Best selling Routers from Metz Connect
On this page you’ll find a ranking of the best Routers from Metz Connect. To give you a quick overview, we’ve added the most important product details. This page always stays fresh and updates automatically.
1. Metz Connect METZ MS/TP router
The BACnet IP / BACnet MS/TP Router offers standalone routing between BACnet networks such as BACnet/IP, BACnet Ethernet, and BACnet MS/TP, allowing the system integrator to combine BACnet network technologies within a single BACnet network. A 10/100 Mbps Ethernet port and an MS/TP port serve as communication interfaces to the respective BACnet networks. An integrated web server enables configuration, status monitoring, and troubleshooting.
2. Metz Connect Metz 1108800170 BMT-F-RTR BACnet router
The BMT-(F)-RTR is a compact router for bidirectional data exchange between BACnet/IP and BACnet MS/TP fieldbus devices. It can be connected to METZ CONNECT BACnet MS/TP devices via two 4-pole terminal blocks on the front of the device and a bridge connector. An integrated web server is used for parameterization, management, and monitoring of the two interfaces (Ethernet / RS485). The web interface is also utilized for firmware updates. The BMT-(F)-RTR is suitable for decentralized mounting in electrical sub-distributors or in cabinets on TH35 mounting rails according to IEC 60715. It features connections with spring-loaded terminals (Push-In), access to 32 devices on the BACnet MS/TP bus, bidirectional data exchange between BACnet/IP and BACnet MS/TP devices, protocols: BACnet MS/TP, BACnet/IP, BACnet Ethernet, HTTP 1.0, an integrated web server, intuitive and software-independent configuration via the web interface, recording and analysis of IP and RS485 communication, easy device search for METZ CONNECT BACnet MS/TP devices on the RS485 bus, and quick connection of METZ CONNECT BACnet MS/TP devices using proven bridge connector technology.

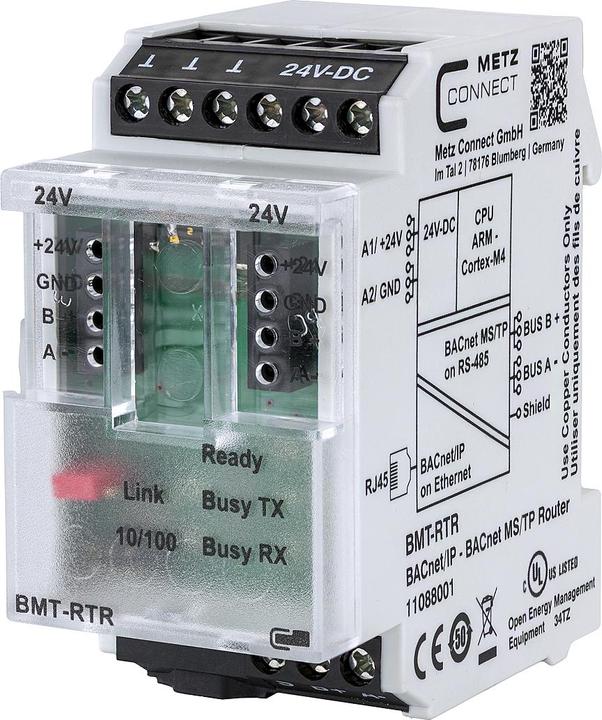

3. Metz Connect Metz 11088001 BMT-RTR BACnet router
The BMT-(F)-RTR is a compact router for bidirectional data exchange between BACnet/IP and BACnet MS/TP fieldbus devices. It can be connected to METZ CONNECT BACnet MS/TP devices via two 4-pin terminal blocks on the front of the device and a bridge connector. An integrated web server is used for parameterization, management, and monitoring of the two interfaces (Ethernet / RS485). The web interface is also used for firmware updates. The BMT-(F)-RTR is suitable for decentralized mounting in electrical sub-distributors or in enclosures on TH35 mounting rails according to IEC 60715. It features screw terminal connections, access to 32 devices on the BACnet MS/TP bus, bidirectional data exchange between BACnet/IP and BACnet MS/TP devices, protocols: BACnet MS/TP, BACnet/IP, BACnet Ethernet, HTTP 1.0, integrated web server, intuitive and software-independent configuration via the web interface, recording and analysis of IP and RS485 communication, easy device search for METZ CONNECT BACnet MS/TP devices on the RS485 bus, and quick connection of METZ CONNECT BACnet MS/TP devices using proven bridge connector technology.
