ANEL-Electronics NET-PwrCtrl HOME

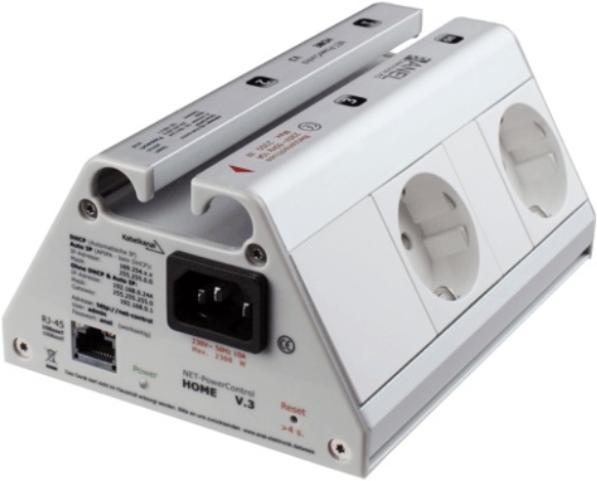

Three independently controlled sockets via the Internet/Ethernet using a web browser. A web server in the power strip communicates with the network. One socket is always powered on.

• Control from the Internet (worldwide)
• Automatic detection in the network (DHCP, Zeroconf)
• Automatic time setting from an SNTP server
• Access via hostname or IP (hostname = device name)
• Free choice of HTTP port (80), allowing multiple devices to be addressed from the Internet
• 3x 4 timers + 3 random timers
• A network device can be pinged, and if it does not respond, it can be disconnected from the power supply for a configurable time
• State changes are reported via email
• Save and restore configuration
• Automatic activation of sockets after a restart (power failure) or restoration of the state before the failure
• Sockets can be individually locked
• No software (other than a web browser) required to control or configure the strip
• Usable from any operating system (with a web browser)
• Additional Windows program for Ethernet control
• Multiple power strips can be controlled via a PC
• User system for up to 8 users with rights assignment for individual functions
• Log of the last 40 events
• UDP interface for integration into custom software
• Firmware upgrade via Ethernet possible at any time (Ethernet bootloader)
• No standby, no power consumption: devices are powered off

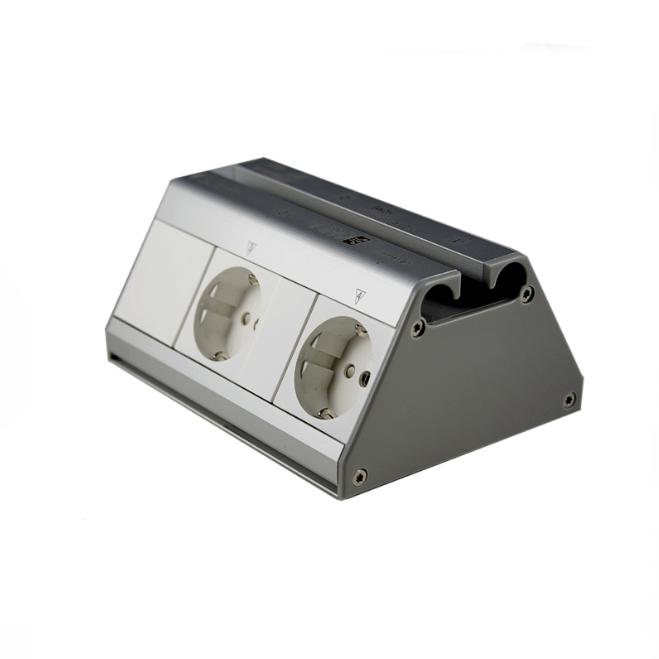

• Sturdy aluminum housing, child safety in the sockets, cable channel

Power supply: 230 V ~ 50 Hz
Cable length: 1.5 m
Power consumption: 1.9 W
Total power at all outputs: 2300 W
Dimensions: L 170 x W 120 x H 76 mm

System requirements: Windows 98, ME, 2000, XP,...
