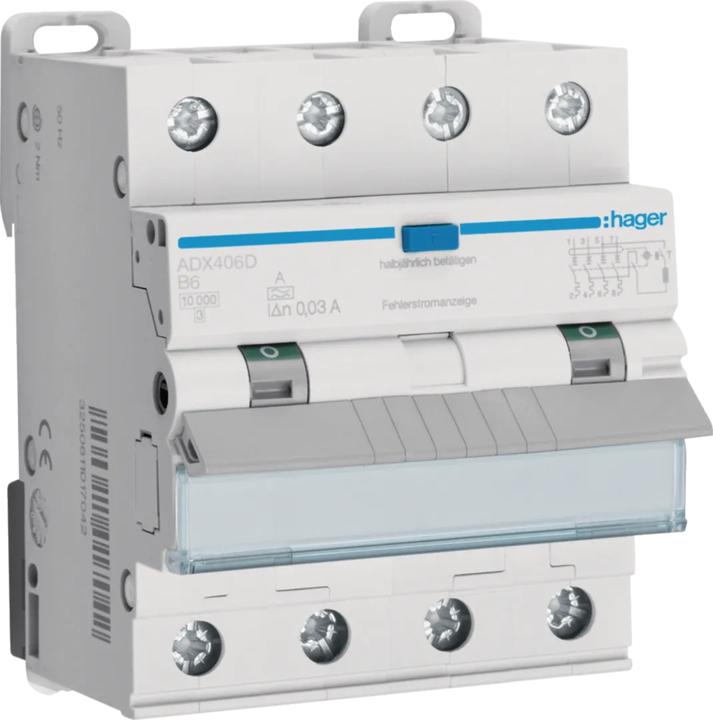

Hager HAG ADX406D FI-LS 4P 10kA B-6A 30mA A
Price in EUR including VAT
free shipping
The Hager ADX406D is a highly advanced residual current circuit breaker specifically designed for use in 400 V three-phase circuits. With a rated residual current of 30 mA and a type B tripping characteristic, this switch provides reliable protection against fault currents and overloads. It meets the requirements of DIN EN 61009-1 (VDE 0664-20) and is housed in a compact casing that allows for easy installation and maintenance. The switch is equipped with a blue test button for quick functionality checks, as well as a residual current indicator for immediate problem identification. The Hager ADX406D is suitable for flush mounting and offers labeling options directly on the device, enhancing user-friendliness. Additionally, it is designed for the subsequent installation of additional devices, making it a flexible solution for various applications.
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Length | 70 mm |
Width | 71 mm |
number of poles | 4 |
Mounting type | Flush-mounted |
Item number | 32097520 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | ADX406D |
Release date | 16.11.2022 |
Colour | White |
Exact colour description | White |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Mounting type | Flush-mounted |
Mounting type | Engagement |
number of poles | 4 |
Tripping characteristic | B |
Rated current | 0.03 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IP20 |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 71 mm |
Height | 84 mm |
