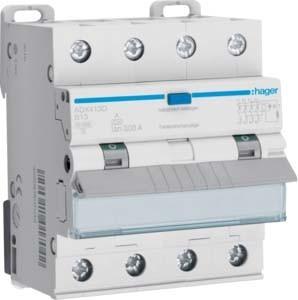

Hager HAG ADX413D FI-LS 4P 10kA B-13A 30mA A
Price in EUR including VAT
free shipping
The Hager ADX413D FI-LS 4P 10kA B-13A 30mA A is a highly advanced residual current circuit breaker specifically designed for use in 400 V three-phase circuits. This 4-pole switch not only provides reliable protection against fault currents but also features a high tripping capacity of 10 kA, making it a safe choice for various applications. The switch meets the requirements of DIN EN 61009-1 (VDE 0664-20) and offers touch protection according to IP20, ensuring additional safety. With a residual current protection setting of 30 mA Type A, it is ideal for the protection of people and equipment. The easy individual removal from the phase rail connection and the possibility for labeling directly on the device enhance user-friendliness and flexibility during installation. The Hager ADX413D is thus a reliable solution for modern electrical installations.
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Length | 70 mm |
Width | 4 mm |
number of poles | 4 |
Mounting type | Flush-mounted |
Item number | 32097522 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | ADX413D |
Release date | 16.11.2022 |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Mounting type | Flush-mounted |
number of poles | 4 |
Tripping characteristic | B/10 ka |
Rated current | 13 A |
Rated current | 0.03 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IP20 |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 4 mm |
Height | 70 mm |
Length | 10 cm |
Width | 8 cm |
Height | 8 cm |
Weight | 430 g |
