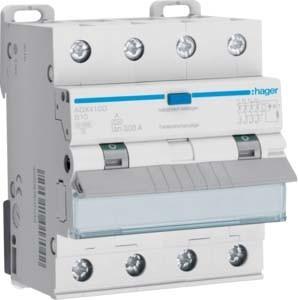

Hager HAG ADX410D FI-LS 4P 10kA B-10A 30mA A
Price in EUR including VAT
free shipping
The Hager ADX410D FI-LS 4P 10kA B-10A 30mA A is a highly advanced residual current circuit breaker specifically designed for use in 400 V three-phase circuits. This protective switch meets the requirements of DIN EN 61009-1 (VDE 0664-20) and provides reliable residual current protection in a compact housing. With a type B tripping characteristic and a rated residual current of 30 mA, it ensures effective protection against electrical faults. The switch is suitable for flush mounting and allows for easy individual removal from the busbar system. Additionally, it is equipped with touch protection according to IP20, offering extra safety. The blue test button and the residual current indicator enable simple functionality checks. The Hager ADX410D is an ideal choice for anyone who values safety and reliability in their electrical installations.
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Length | 70 mm |
Width | 4 mm |
number of poles | 4 |
Mounting type | Flush-mounted |
Item number | 32097521 |
Manufacturer | Hager |
Category | Residual-current device |
Manufacturer no. | ADX410D |
Release date | 16.11.2022 |
Circuit breaker type | Miniature circuit-breaker/residual current circuit-breaker combination |
Mounting type | Flush-mounted |
number of poles | 4 |
Tripping characteristic | B |
Rated current | 10 A |
Rated current | 0.03 A |
Rated voltage | 400 V |
voltage type | AC |
Rated insulation voltage Ui | 500 V |
Residual current (rated differential current) | 0.03 A |
Protection type (IP code) | IP20 |
Country of origin | Poland |
CO₂-Emission | |
Climate contribution |
Items per sales unit | 1 Piece |
Length | 70 mm |
Width | 4 mm |
Height | 70 mm |
