If there is enough free space around the part to be pulled off, we recommend a 3-arm puller series 30-S for optimum load distribution. It features narrow puller hooks that are infinitely adjustable on the crosshead, allowing for space-saving work due to two arms. The parallel puller hooks can be positioned in every position, even under full load. The mechanical spindle has a rolled thread that is specially coated for durability. This strong design ensures high performance and a long service life, with quality made in Germany. It includes plagiarism protection by a safety label and self-healing corrosion protection KUKKoating for galvanized parts.

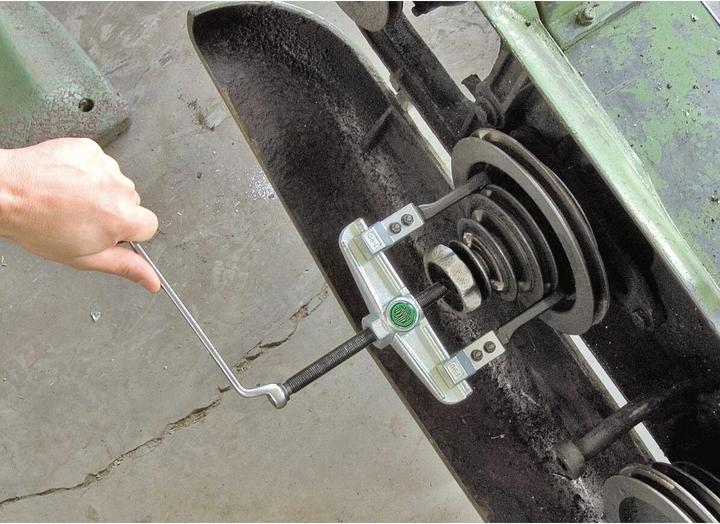

Application: This puller is ideal for pulling off bearings, gear wheels, discs, etc., in narrow and poorly accessible gaps.

Advantage: It can be optionally converted to different extraction hooks, and the variable clamping depth is facilitated by puller hook extensions, which are available up to puller size -20. The collar of the spindle head prevents slipping of the key, and the crosshead has a hexagonal profile for counter-holding. It can be used as both an external and internal puller by turning the puller hooks, making it suitable for removing asymmetrical workpieces. Stability is supported by an optionally available clamp series 219. All components are available as spare parts, allowing for time-saving ordering by numbering. One tube of KUKKO special grease for the pressure spindle is included.

Further technical features:

• Weight: 3.285 kg
• Clamping width inside max.: 260 mm (10 1/4 inch)
• Clamping width inside min.: 100 mm (3 7/8 inch)
• Max. external clamping width: 200 mm (7 7/8 inch)
• Max. torque: 88.5 ft lb (120 Nm)
• External hex: 22 mm.
